Linksys E1200 v1.0

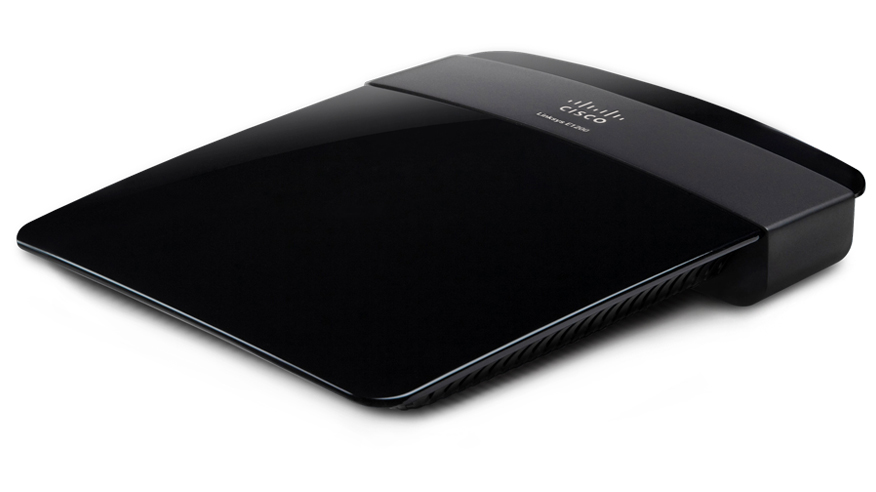

Linksys E1200 a.jpg
Wireless-N Router

Homepage

E1200

Wikipedia

Linksys Routers

WikiDevi

Linksys E1200 v1

dd-wrt

Linksys E1200 v1

OpenWRT

Status Unknown

Tomato

Status Unknown

TomatoUSB

Status Unknown

Gargoyle

Status Unknown

NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.

Specs[]

Fixme.gif This section is in need of cleanup!

Platform

Serial Num. = 1081
FCC ID = Q87-E1200
Industry Canada ID = 3839A-E1200
CPU Type = Broadcom BCM5357B0
MIPS Rev = ?
CPU Speed = 300MHz
Bus = ?
Flash Type = ?
Flash Chip = Macronix MX25L3206E
Flash Size = 4MB
Max Firmware Size = ?
RAM Size = 32MB
RAM Chip = Winbond W9425G6JH-5
nvram Size = ?
Switch = Broadcom BCM5357B0 (SoC)
Port-based vlan = ?
802.1q vlan = ?
Ethernet Port Count = 1-10/100-WAN 4-10/100-LAN
Wired Standard = IEEE 802.3/3u
boot_wait = ?
bootloader = ?
Flash Card Socket/Type = No
SD/MMC Mod Support = No
MiniPCI slots = ?
PoE = No
Power = 12VDC/0.5A
Color of LEDs = ?
Size = 7.43" x 1.23" x 5.97"
USB = Possible Mod to add
Serial Port = YES
JTAG Port = ?
Supported by TJTAG/Version = ?
Special Features = ?

Radio

Wireless Radio = Broadcom BCM5357B0 (SoC)
WLAN DSP processor = ?
Antenna Connector Type = 2x2, Internal
Wireless Standard = IEEE 802.11b/g/n
WiFi Operating Frequency = 2.4 GHz
 802.11n = up to 300Mbps
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = ?
Radio Capabilities = ?

Links of Interest[]

Flashing[]

Fixme.gif This section is in need of cleanup!

Upgrading[]

Fixme.gif This section is in need of cleanup!

Reverting[]

Fixme.gif This section is in need of cleanup!

JTAG/Serial Info[]

JTAG[]

JTAG Pinouts[]
Fixme.gif This section is in need of cleanup!
JTAG Recovery[]
Fixme.gif This section is in need JTAG Recovery Instructions!

Serial[]

Serial Pinouts[]
1 = vcc (3.3v)
2 = tx
3 = rx
4 = n/c
5 = ground
Hyper terminal Setup in Windows XP[]
In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 115200
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.
Putty Setup in Windows XP[]
After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 115200
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open
Serial Recovery[]
Fixme.gif This section is in need of Serial Recovery Instructions!

vlan Info[]

Fixme.gif This section is in need of cleanup!

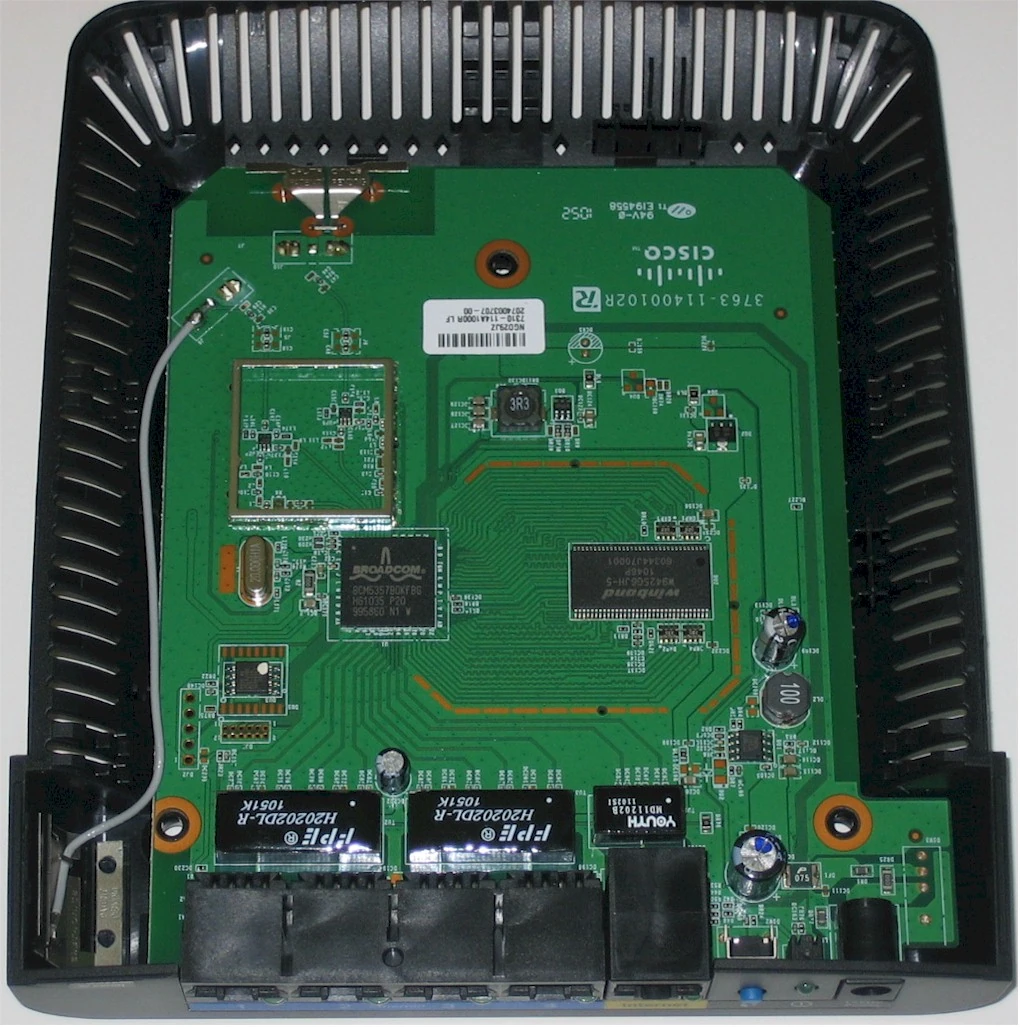

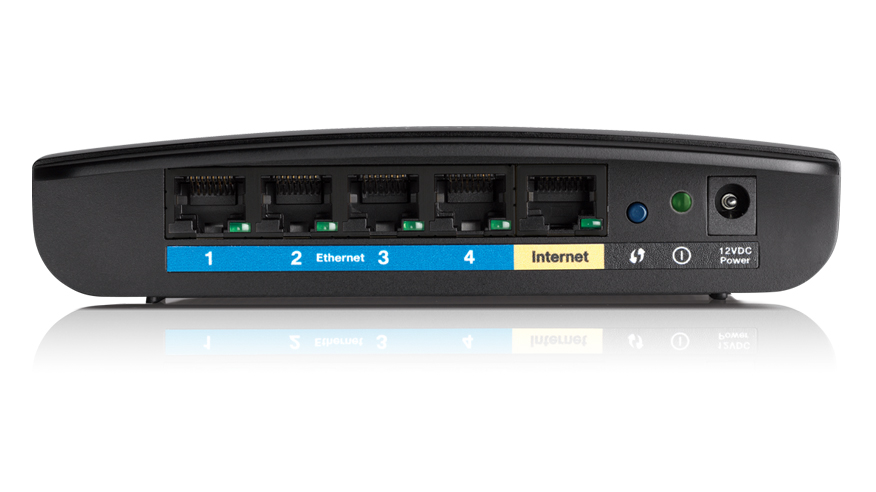

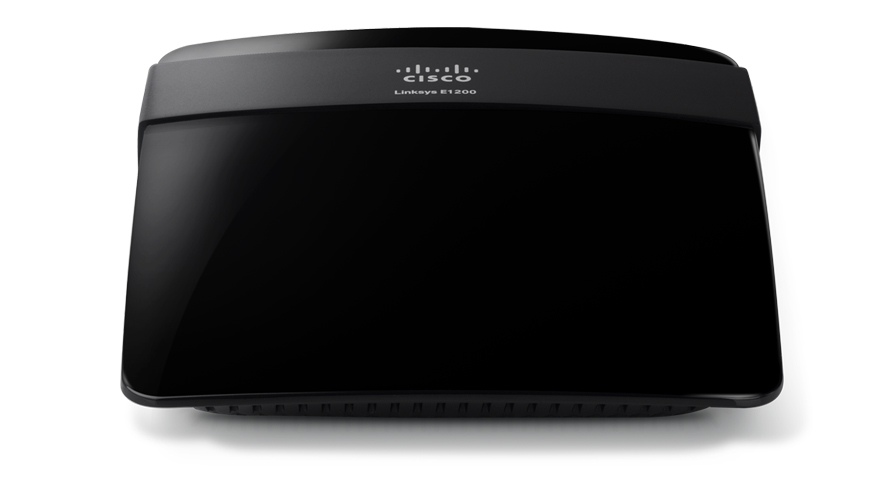

Pictures[]

alt text alt text alt text

alt text alt text

FCC Pictures[]

Fixme.gif This section is in need of cleanup!

Notes[]


Hardware Modification[]
