Your here: Home / Network / Hardware Specific / Cisco-Linksys / WRT350N v1.0

Wireless-N Gigabit Router with Storage Link

NOTE: Do not flash micro to this router.
NOTE: Requires K2.4, Do not flash anything else.
NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.

Makes a great main router (gateway), will also work as a client, client bridge, repeater, repeater bridge.

Specs

Platform

Serial Num. = CNQ01
FCC ID = Q87-WRT350N
CPU Type = Broadcom BCM4705KPBG (BCM4785 chip rev 2)
MIPS Rev = ?
CPU Speed = 300MHz
Bus = ?
Flash Type = Parallel
Flash Chip = i JS28F640 J3D75 A6297078
Flash Size = 8MB
Max Firmware Size = 7995392 bytes
RAM Size = 32MB
RAM Chip = 2x NANYA 0618 NT5DS8M16FS-5T 606118ROAN
nvram Size = 32kb
Switch = Broadcom BCM5397KFBG
Port-based vlan = Yes - Via nvram only
802.1q vlan = ?
Ethernet Port Count = 1-10/100/1000 WAN, 4-10/100/1000 LAN
Wired Standard = IEEE 802.3/3u/3ab
boot_wait = ?
bootloader = CFE
Flash Card Socket/Type = No
SD/MMC Mod Support = No
MiniPCI slots = Yes (PCMCIA)
PoE = No
Power = 12V/1.5A
Color of LEDs = ?
Size = 7.40 x 1.57 x 6.93 in (188 mm x 40 mm x 176 mm)
USB = 1x
Serial Port = Yes
JTAG Port = Yes
Supported by TJTAG/Version = Yes/3.02
Supported by dd-wrt as of = v24 06/16
dd-wrt K2.4 Support = Yes
dd-wrt K2.6 Support = No
Special Features = ?

Radio (wl0)

Wireless Radio = Broadcom BCM2055KFBG
WLAN DSP processor = ?
Antenna Connector Type = Fixed Non-Removable
Wireless Standard = IEEE 802.11b/g/n
WiFi Operating Frequency = 2.4GHz
 802.11n Draft = up to 300Mbps
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = 11
Radio Capabilities = ap sta wet led wme 802.11d 802.11h rm cqa mbss4
                     afterburner ampdu amsdu acktiming

Links of Interest

Flashing

Flashing DD-WRT

First, before you do anything else, check which version of the WRT350N you have. If you have V1, you're in business. If you have V2, you're outta luck.

Flashing a virgin WRT350N with the default Linksys firmware will require a special "trailed" mini-build to be flashed first. You should use a build from the BS Broadcom folder 12874 for the initial flash. The name of this file specifically is "dd-wrt.v24_mini_wrt350n.bin". You may proceed to flash it with a generic build next, such as Mega.bin. Remember to do the 30/30/30 Hard Reset after every successful flash. It is absolutely essential.

The proper process for flashing is:

  1. Read Note 1 of the peacock announcement http://www.dd-wrt.com/phpBB2/viewtopic.php?t=51486
  2. Read Note 3 of the peacock announcement
  3. Download dd-wrt.v24_mini_wrt350n.bin
  4. Do a Hard reset or 30/30/30 on your router. You will not get a password renewal page as you have stock linksys firmware on the router still.
  5. Plug a cable into the lan port of the router and your computer, and disable any wireless to the computer. Disable all firewalls and virus protection. (Setting your computer to a static IP should not be required)
  6. Set your browser to 192.168.1.1. This will open up the linksys webgui
  7. Enter the username admin and password admin
  8. Go to the administration tab. Click on firmware upgrade.
  9. BROWSE to the dd-wrt.v24_mini_wrt350n.bin file you downloaded.
  10. Click on the upgrade button and WAIT for the upgrade successful message. Wait at LEAST 5 minutes
  11. Power cycle your router. (very important) WAIT until you can relogin at 192.168.1.1
  12. Do another PROPER Hard reset or 30/30/30 on your router (very important) WAIT until you can login at 192.168.1.1
  13. Click on any tab. Reset your username/password by TYPING in a new username/password
  14. Configure your router

You can now upgrade to any generic dd-wrt build except Micro. Be sure to always do a hard reset prior to flashing another build, do a power cycle followed by another hard reset after flashing, and NEVER re-use a configuration file from a previous build or another router. Reconfigure from scratch.

Flashing Gargoyle

Initial Flash

Fixme This section is in need of cleanup!

From DD-WRT

DoesItMatter Wrote:

gargoyle_1.3.13-wrt350n_v1-squashfs.bin

Grab that image from the download section

Linksys WRT350N
Chipset Broadcom 4785
RAM 32 MB FLASH 8 MB

Broadcom chipsets are fairly easy to back-forth between
Gargoyle and DD-WRT

Best recommendation for steps:

  1. download a backup current DD-WRT build you are using
  2. backup your current DD-WRT config
  3. reset dd-wrt to defaults
  4. from dd-wrt GUI - flash the gargoyle.bin image
  5. once you start the flash - wait about 5 minutes
  6. try to login to 192.168.1.1 - defaull password = password

If you want to go back to dd-wrt

  1. backup your current Gargoyle config
  2. reset Gargoyle to defaults
  3. flash the dd-wrt .bin file that you originally saved above
  4. once again - wait about 5 minutes for flash
  5. reload your backup config file for dd-wrt

Upgrading

If dd-wrt is already on the router follow these instructions. If stock firmware is on the router follow the flashing instructions.

  1. Check for recommended builds here first.
  2. Set your computer to a static IP of 192.168.1.7. (or to whatever subnet the router is on) Disable all firewalls and security. Disable wireless on your computer and only have the router connected to the flashing computer by the ethernet cable between the two.
  3. Hard reset or 30/30/30 (If the router supports it, if not, reset to defults in the GUI) prior to flashing. Wait. Check for password page on re-login and change password.
  4. Flash firmware. You can use the webgui except if you have a belkin router. (For belkin use tftp.exe to flash)
  5. Wait...at least three minutes. Lights should return to normal. See important2, below. Failing to wait is how most people brick their routers.
  6. Do a power cycle of the router. (Unplug the cord, count to 30 and plug it back in.)
  7. Wait for the lights to return to normal usually about 2 minutes.
  8. Hard reset or 30/30/30 again (If the router supports it, if not, reset to defults in the GUI). Wait. Check for the password page and re-login to change the password. Then you can reconfigure your settings manually.
  9. Once configured set your computer back to autoIP and autoDNS.

Important1: This Hard reset or 30/30/30 works fine for Asus router, but you do have to power cycle after the reset.

Important2: After you flash the firmware, and before you do the hard reset, the router will be building some nvram settings. YOU MUST WAIT FOR THIS TO FINISH PRIOR TO DOING ANYTHING WITH THE ROUTER INCLUDING A HARD RESET. Usually, you can tell when this process is completed by the WAN light coming on, but it does take several minutes. Go have a beer. There are starting to be more and more people who BRICK their routers by not waiting until the nvram is rebuilt, PRIOR to doing a hard reset. YOU NEED TO WAIT!

Reverting

Fixme This section is in need of cleanup!

JTAG/Serial Info

JTAG

JTAG Pinouts
nTRST   1o o2	GND
  TDI   3o o4	GND
  TDO   5o o6	GND
  TMS   7o o8	GND
  TCK   9o o10	GND
nSRST  11o o12  N/C
JTAG Recovery
Fixme This section is in need JTAG Recovery Instructions!

Serial

Serial Pinouts
GND 5 o
N/C 4 o
 TX 3 o ?
 RX 2 o ?
VCC 1 o
--------
  ? 1 o ?
  ? 2 o ?
Hyper terminal Setup in Windows XP
In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 115200
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.
Putty Setup in Windows XP
After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 115200
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open
Serial Recovery

Modified redhawk0 instructions

  1. Print out these instructions for Off-Line use
  2. Connect PC to router with a network cable
  3. Configure PC with a static IP of 192.168.1.10
  4. Connect Serial cable
  5. Start one of the programs from above
  6. Get TFTP ready with file selected
  7. Use dd-wrt.v24 mini wrt350n.bin
  8. Connect power to the router
  9. start a rapid fire Cntl-C as you plug the router to power
  10. type "nvram erase" w/o quotes, hit enter
  11. type "flash -noheader : flash1.trx" w/o quotes, this starts the tftp daemon, hit enter
  12. but have TFTP ready
  13. Click go or start on TFTP
  14. give it 5 minutes after it finishes
  15. then power cycle....Hard reset or 30/30/30...then config
  16. when it stops spitting out txt....hit the enter key...you should get a login prompt...at that point, power cycle it, hard reset...then config
  17. you'll see it boot up

USB Info

The USB port is where you can connect an external USB hard drive or flash drive. Which can do a multitude of things. You can use in as a NAS, storage for a FTP server, use Optware to run external programs like torrent software, samba for sharing files to your network, share a USB printer with your network... The list of possibilities is long, it just takes a little research.

ProFTPd is included in most the newer builds of dd-wrt. Check the features chart to be sure.

A ftp server, file sharing, and a media sever is included in TomatoUSB if your device is compatable.

vlan Info

I can confirm the WRT350N v1.0 does support port-based vlan's via nvram only, the gui doesn't work. "proc/switch" is not present.

Defaults

root@DD-WRT:~# nvram show | grep vlan.ports
vlan2ports=0 8
vlan1ports=1 2 3 4 8*
size: 19676 bytes (13092 left)
root@DD-WRT:~# nvram show | grep port.vlans
port5vlans=1 2 16
port4vlans=1
port3vlans=1
port2vlans=1
port1vlans=1
port0vlans=2
size: 19676 bytes (13092 left)
root@DD-WRT:~# nvram show | grep vlan.hwname
vlan2hwname=et0
vlan1hwname=et0
size: 19676 bytes (13092 left)
root@DD-WRT:~#

Commands

root@DD-WRT:~# nvram set vlan2ports="0 4 8"
root@DD-WRT:~# nvram set vlan1ports="1 2 3 8*"
root@DD-WRT:~# nvram commit
root@DD-WRT:~# reboot

nvram

root@DD-WRT:~# nvram show | grep vlan.ports
vlan2ports=0 4 8
vlan1ports=1 2 3 8*
size: 19895 bytes (12873 left)
root@DD-WRT:~# nvram show | grep port.vlans
port5vlans=1 2 16
port4vlans=1
port3vlans=1
port2vlans=1
port1vlans=1
port0vlans=2
size: 19895 bytes (12873 left)
root@DD-WRT:~# nvram show | grep vlan.hwname
vlan2hwname=et0
vlan1hwname=et0
size: 19895 bytes (12873 left)
root@DD-WRT:~#

GUI

Reset to default before test, GUI settings do not work

root@DD-WRT:~# nvram show | grep vlan.ports
vlan2ports=0 8
vlan1ports=1 2 3 4 8*
size: 19594 bytes (13174 left)
root@DD-WRT:~# nvram show | grep port.vlans
port5vlans=1 2 16
port4vlans=2 18 19
port3vlans=1 18 19
port2vlans=1 18 19
port1vlans=1 18 19
port0vlans=2 18 19
size: 19594 bytes (13174 left)
root@DD-WRT:~# nvram show | grep vlan.hwname
vlan2hwname=et0
vlan1hwname=et0
size: 19594 bytes (13174 left)
root@DD-WRT:~#

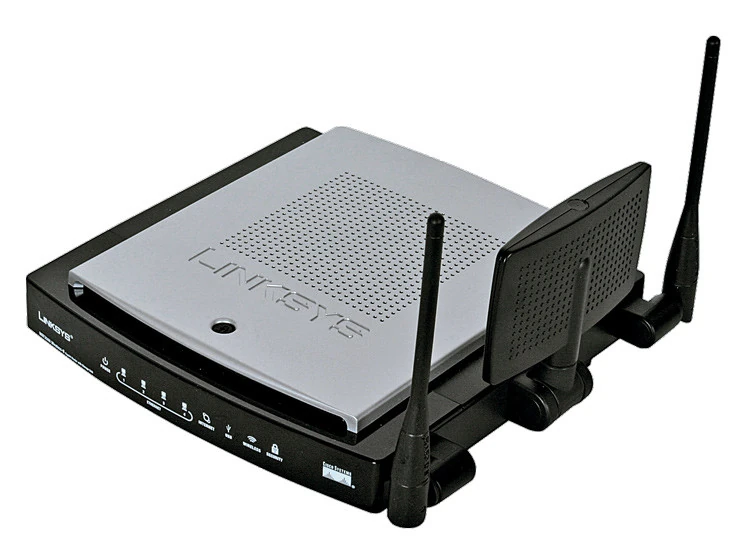

Pictures

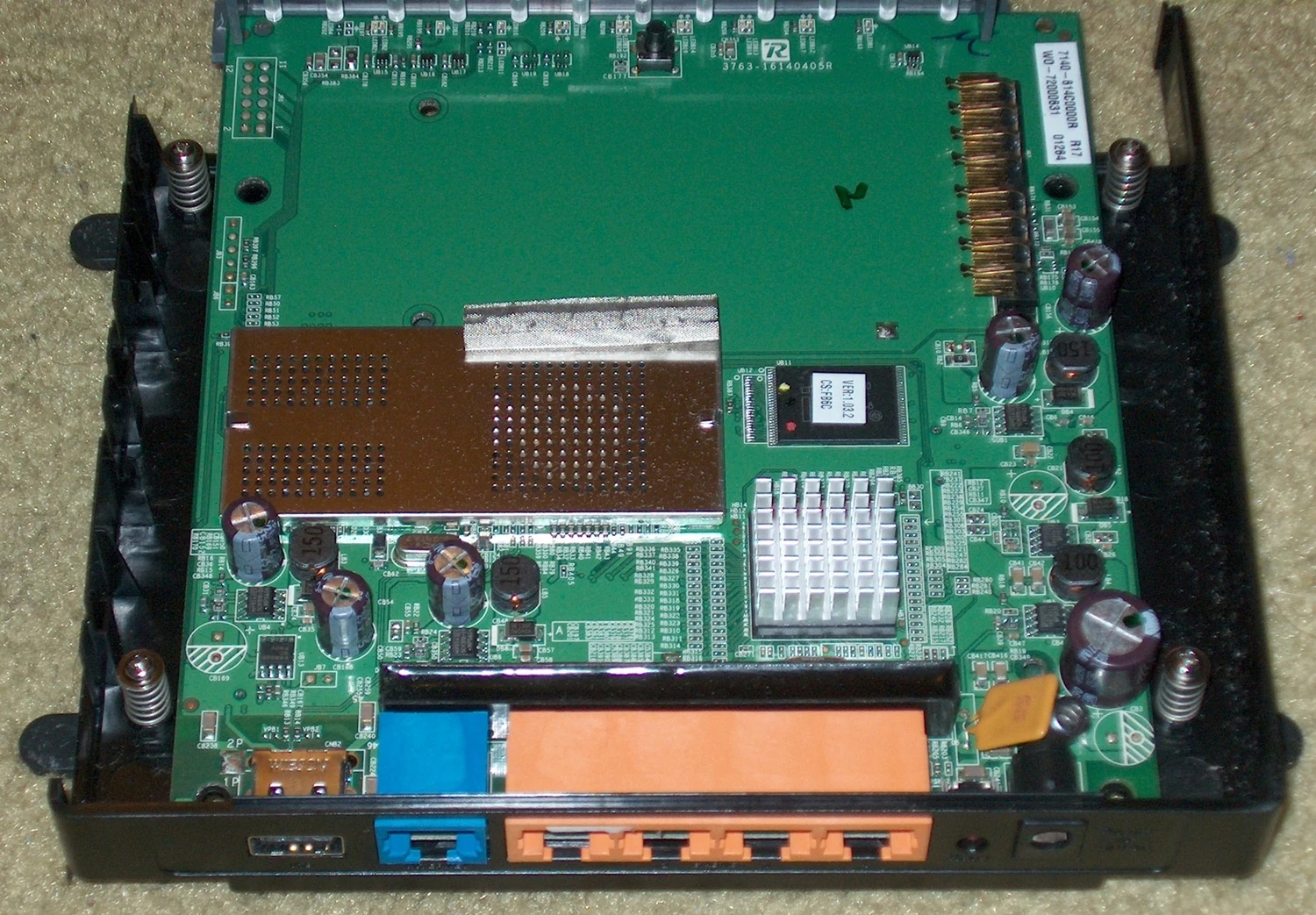

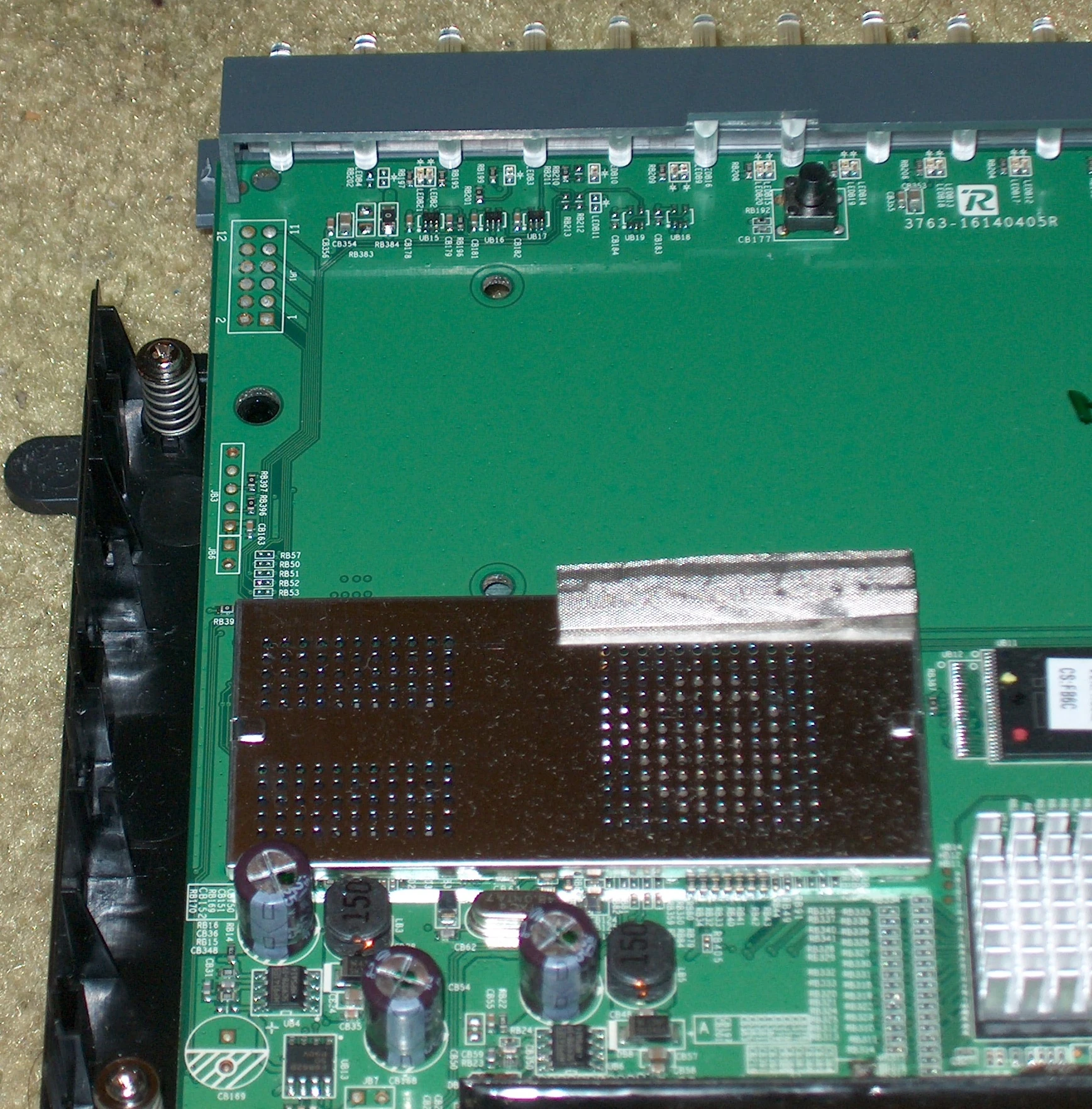

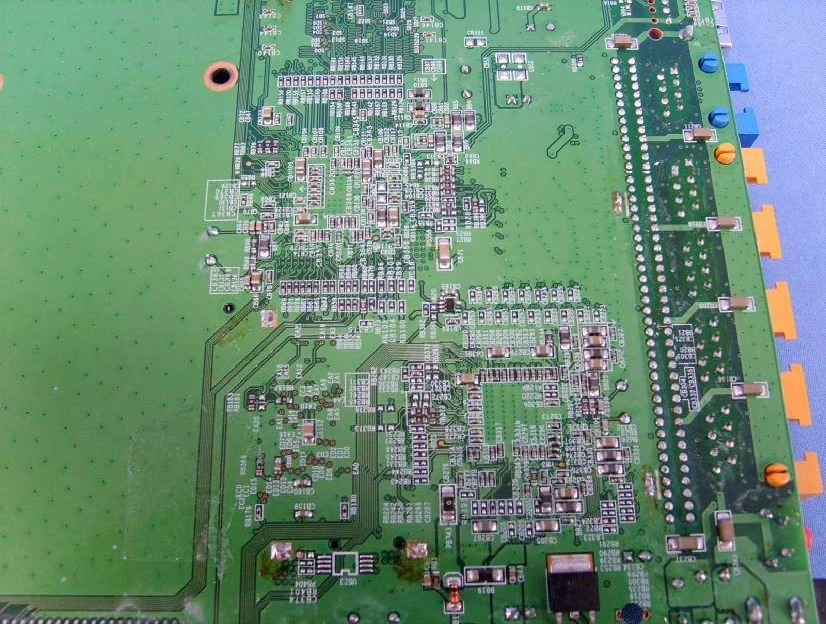

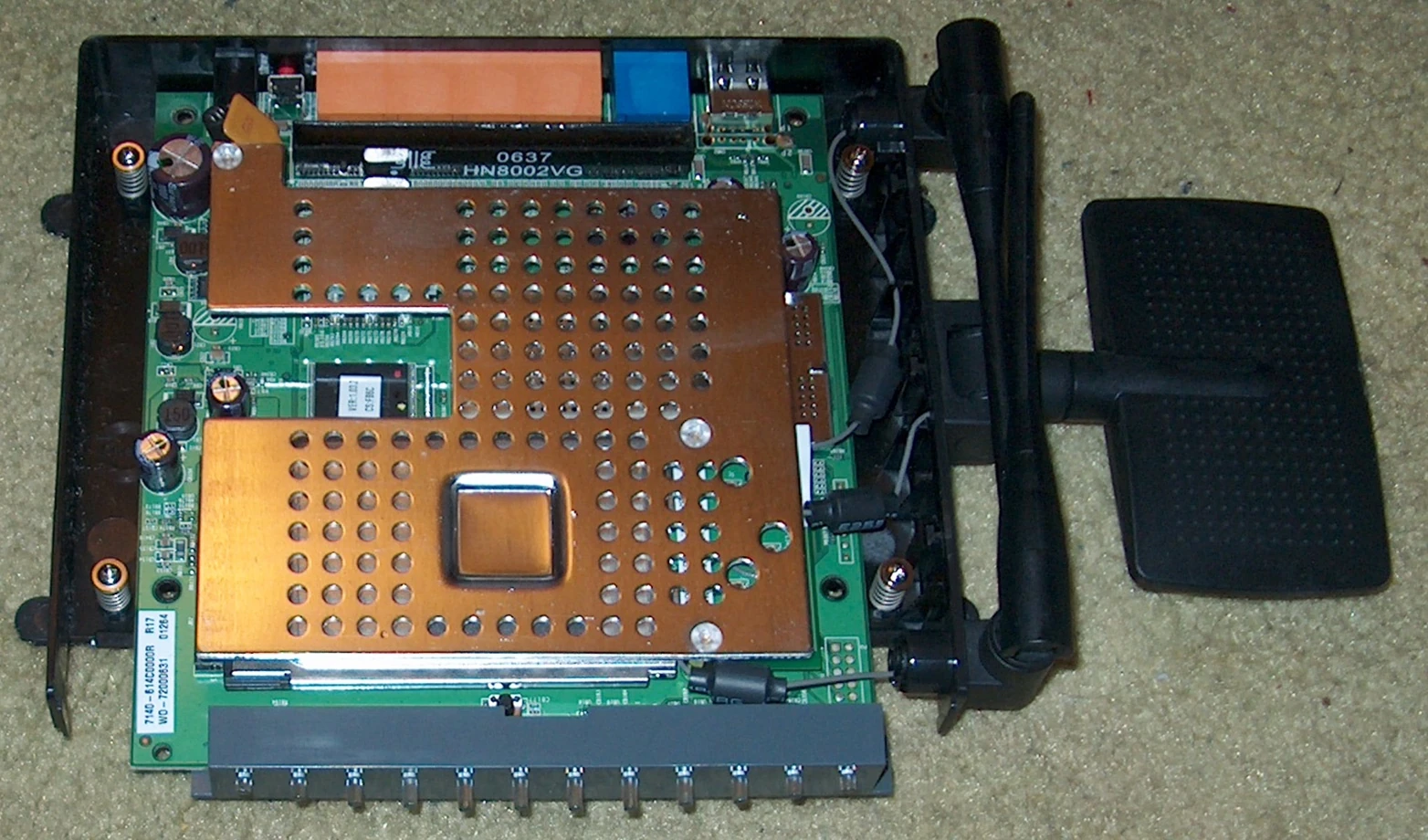

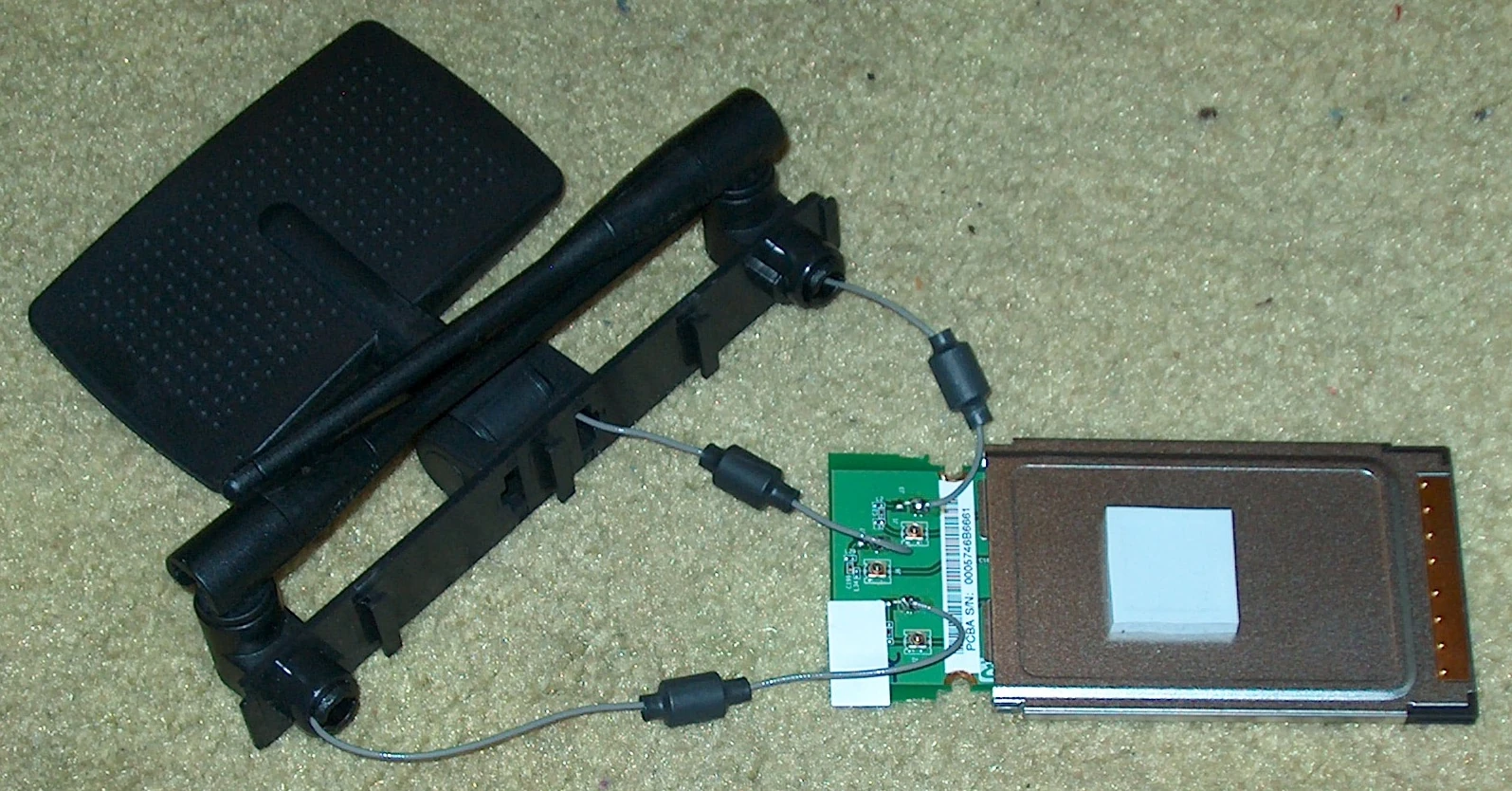

WRT350N v1 WRT350N v1 WRT350N v1

WRT350N v1 WRT350N v1 WRT350N v1

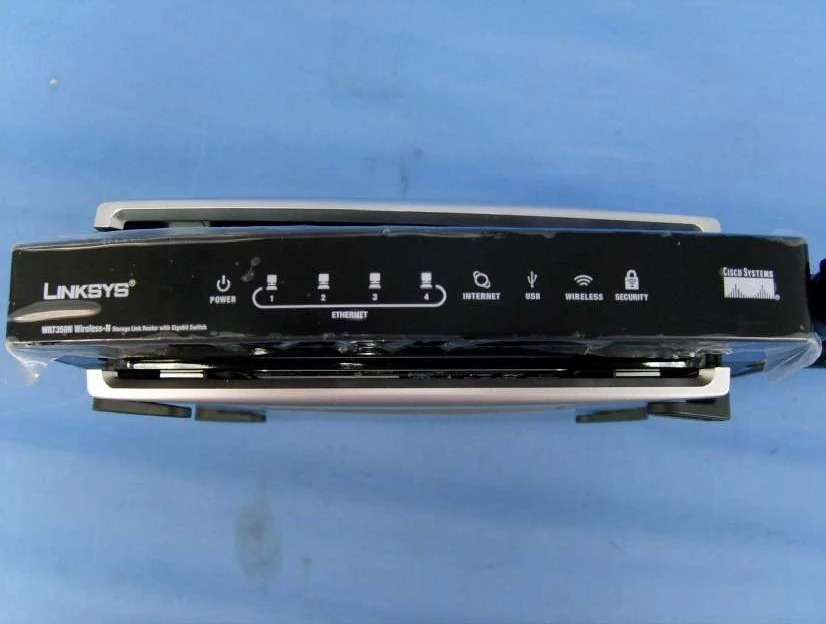

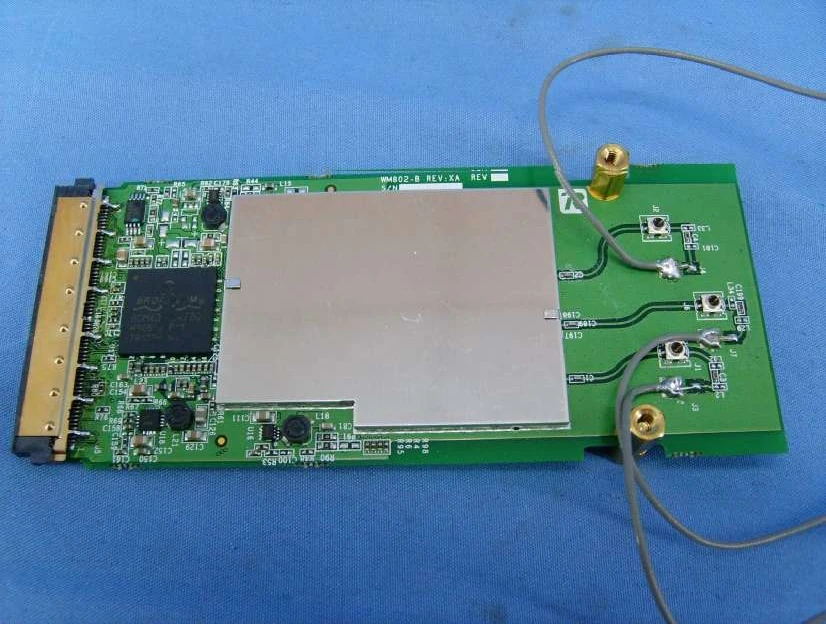

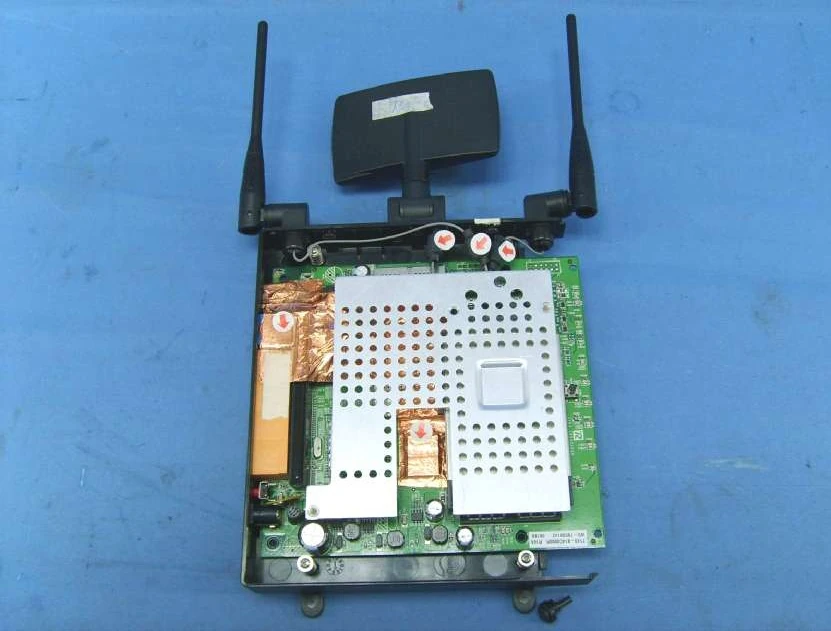

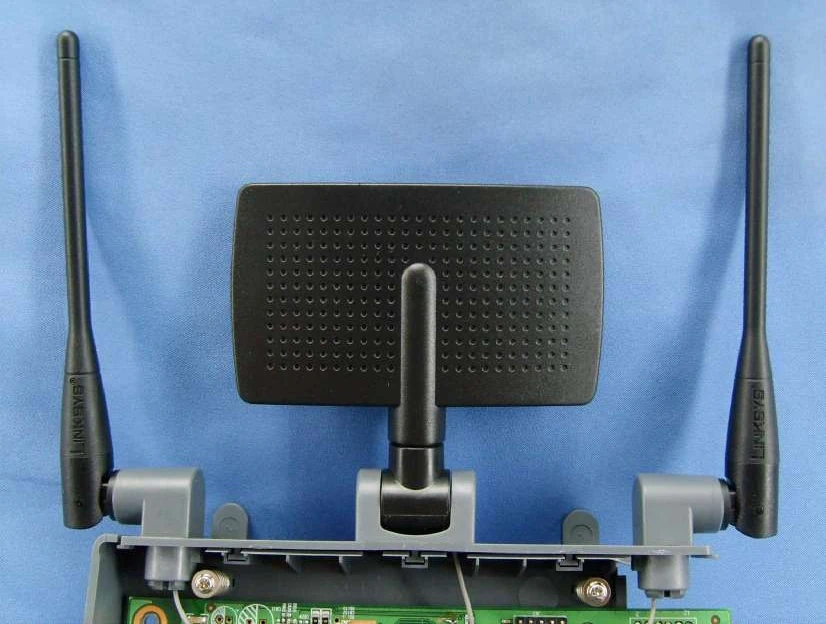

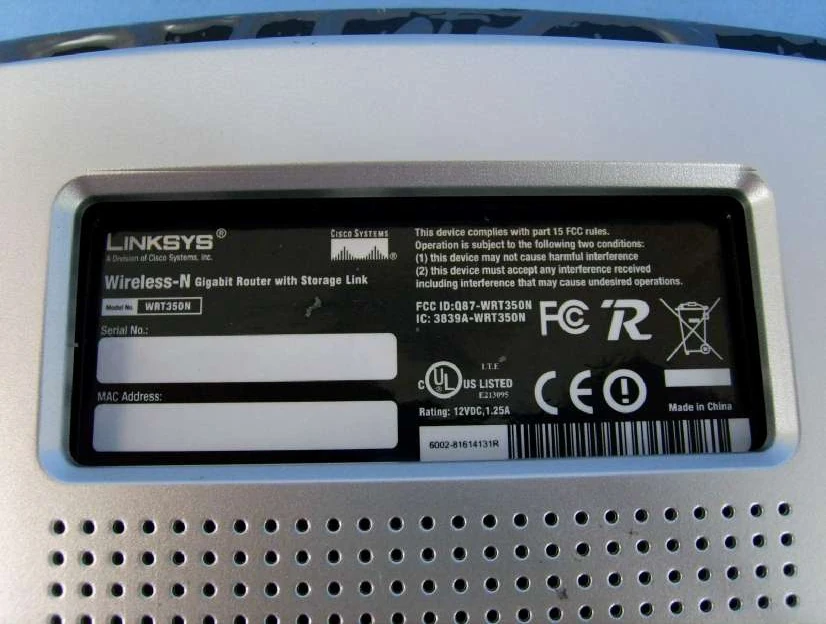

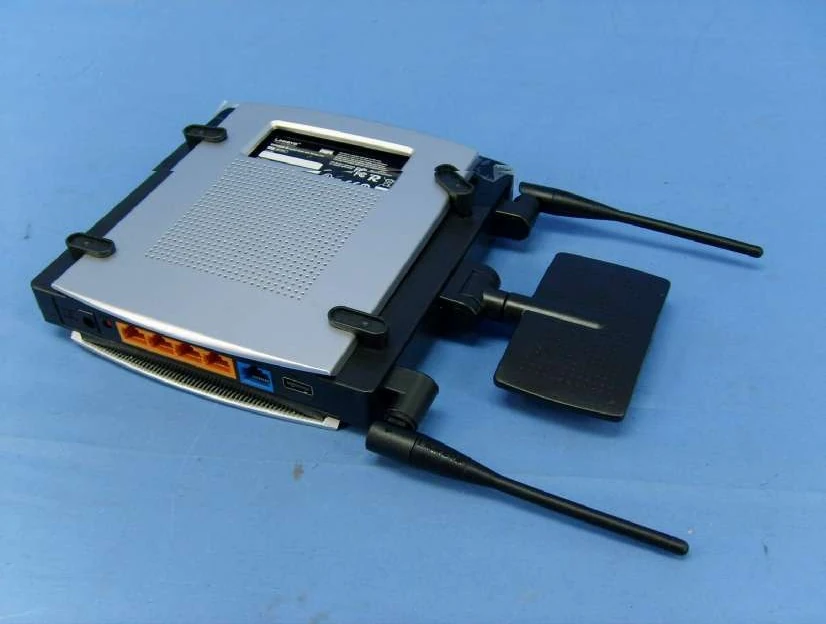

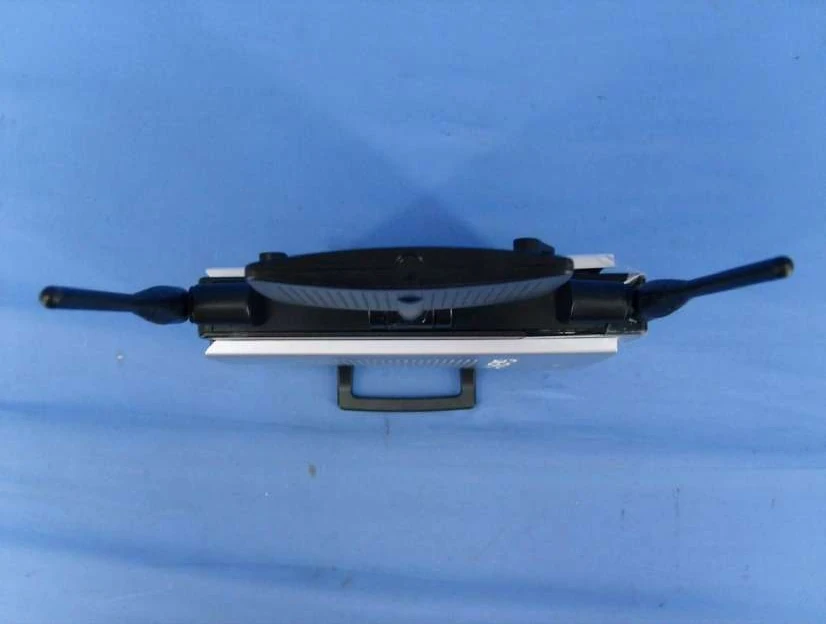

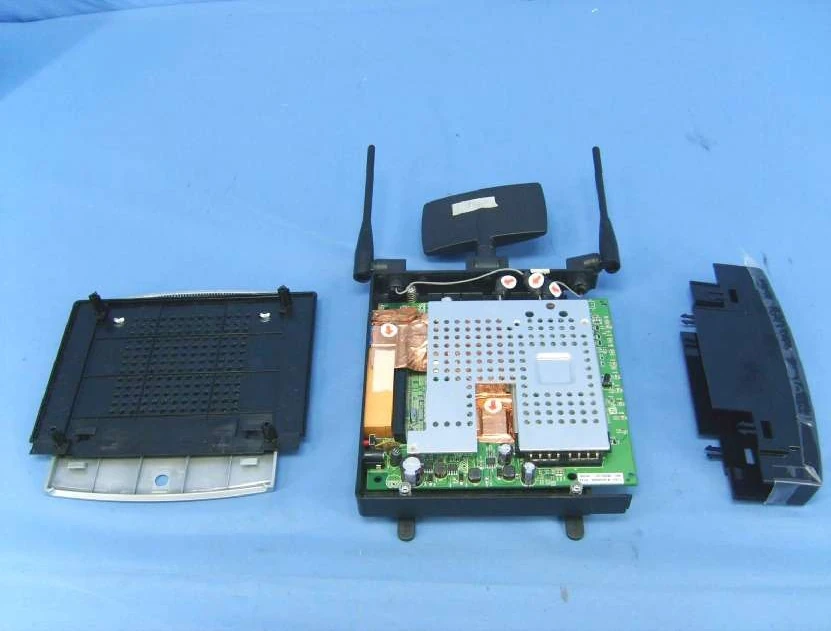

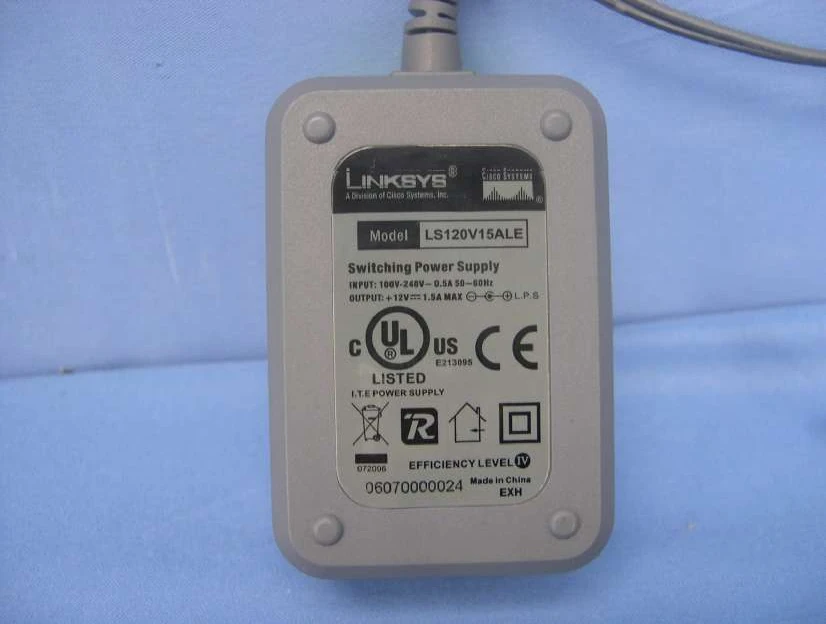

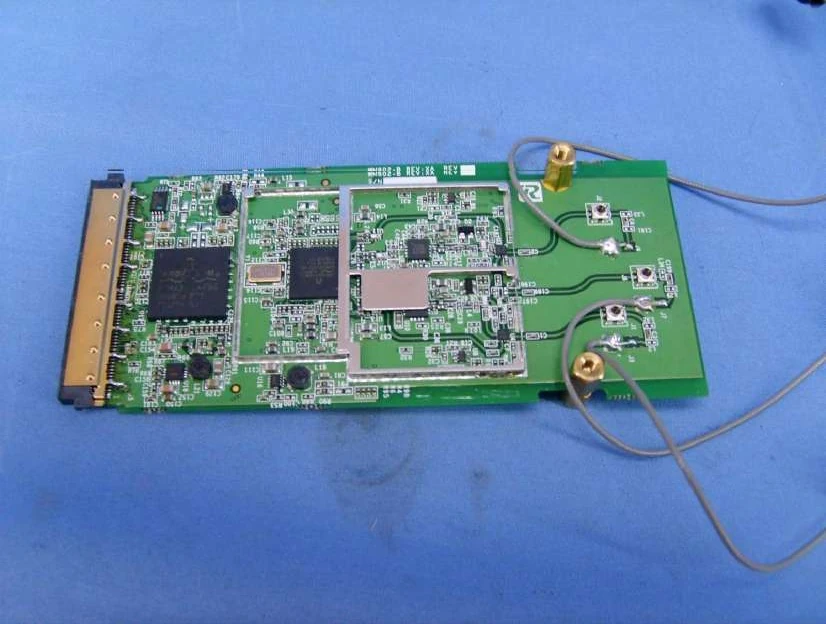

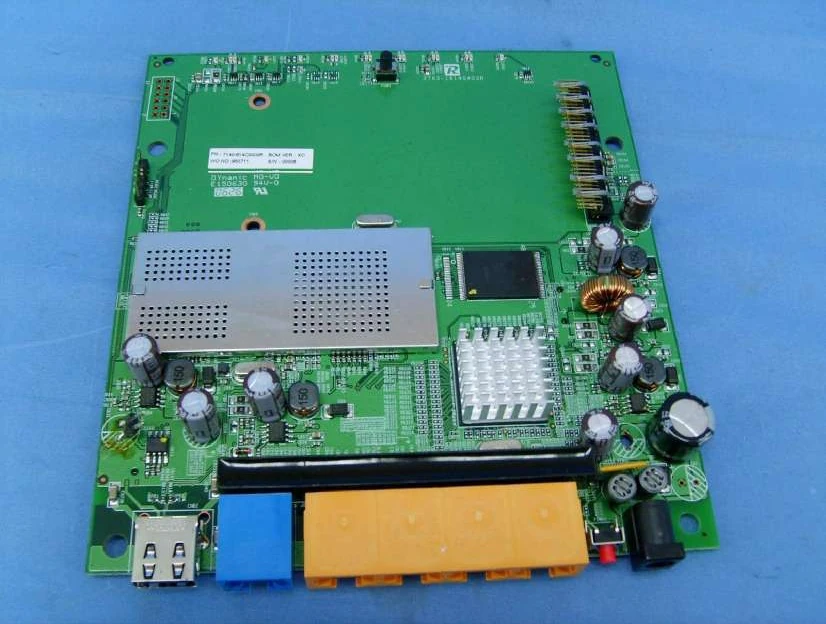

FCC Pictures

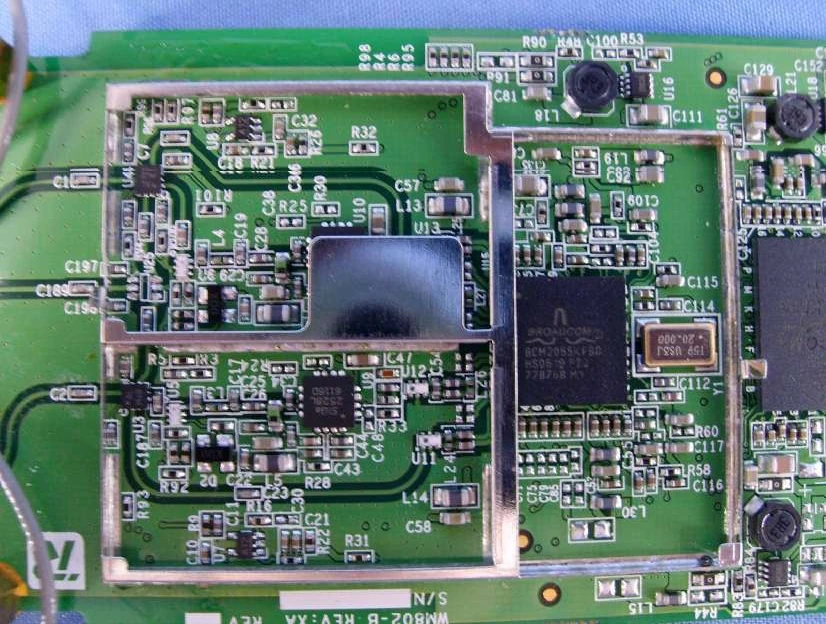

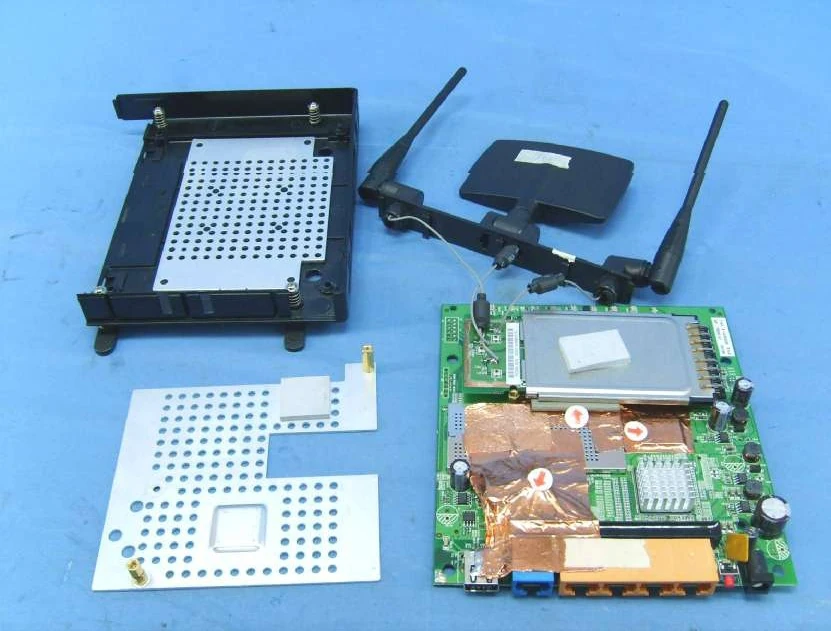

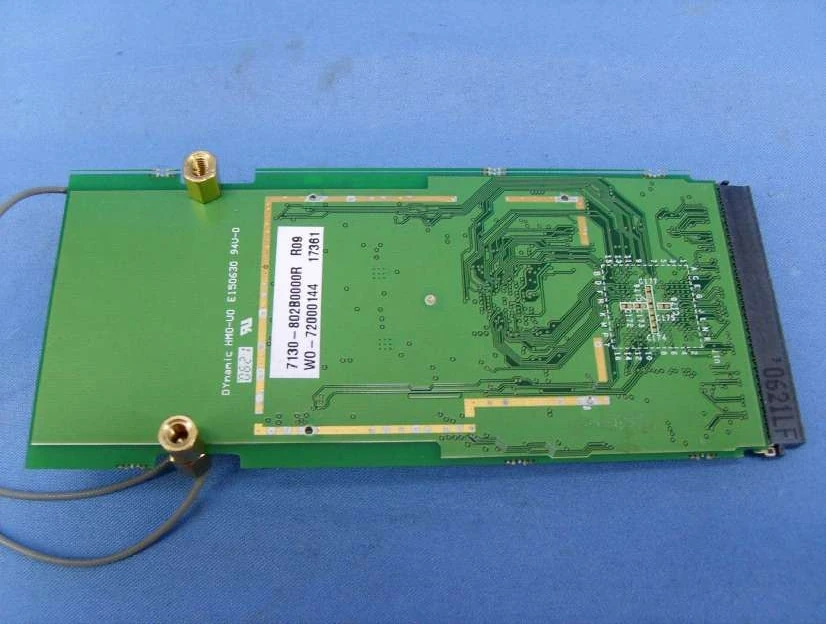

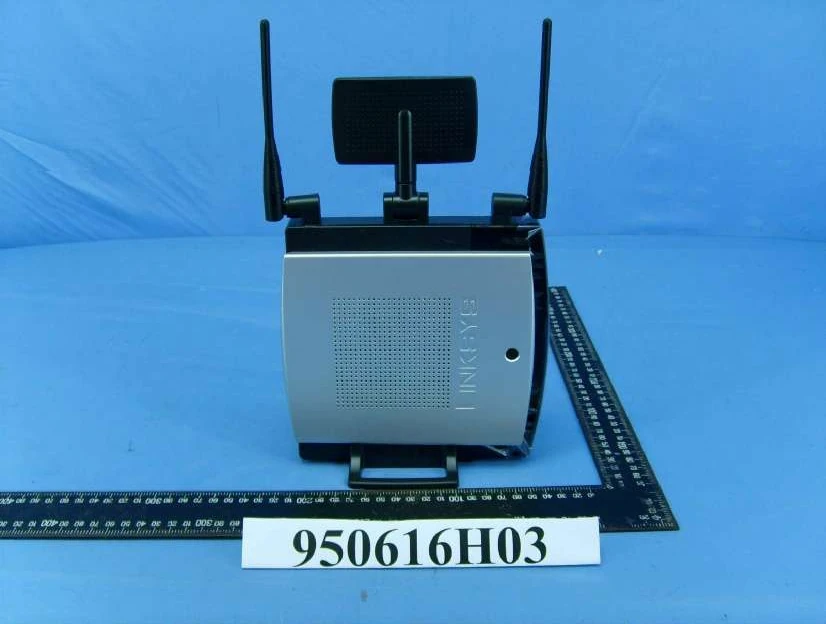

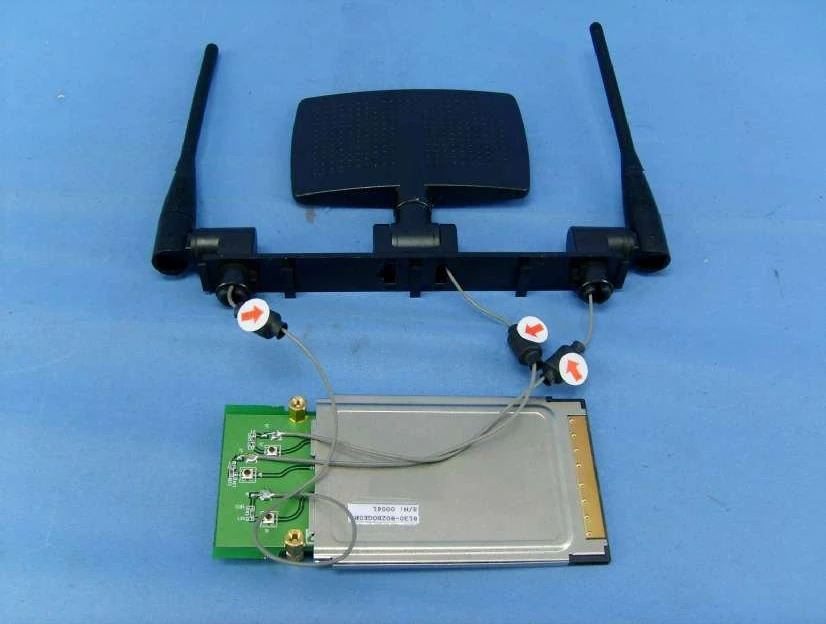

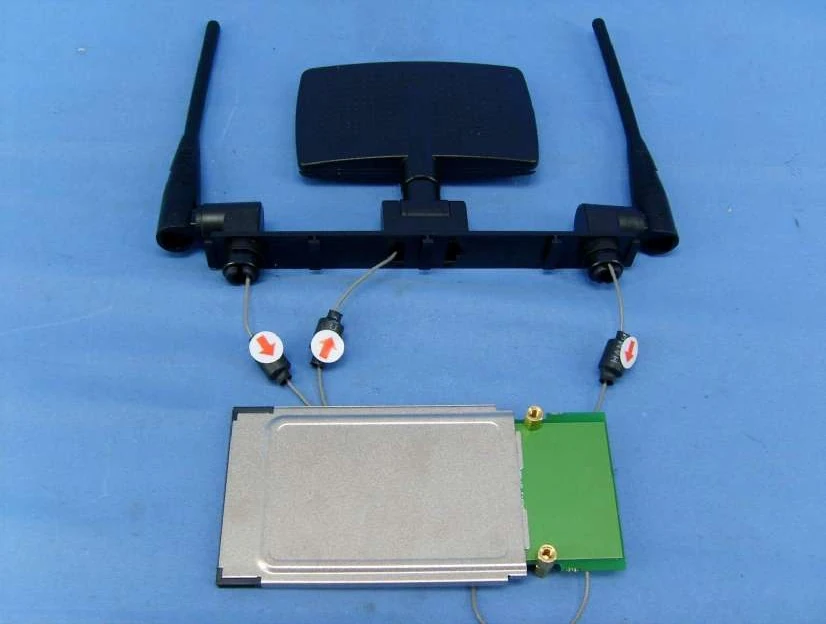

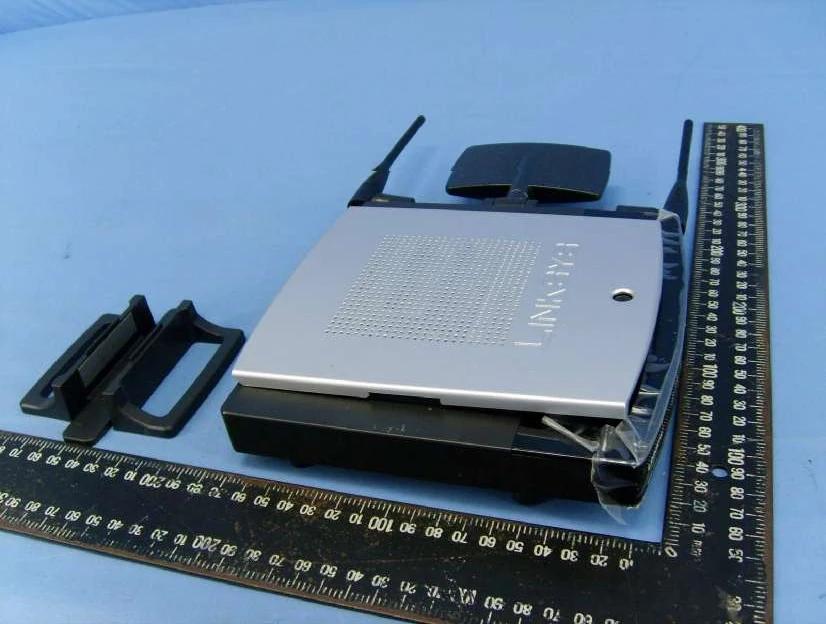

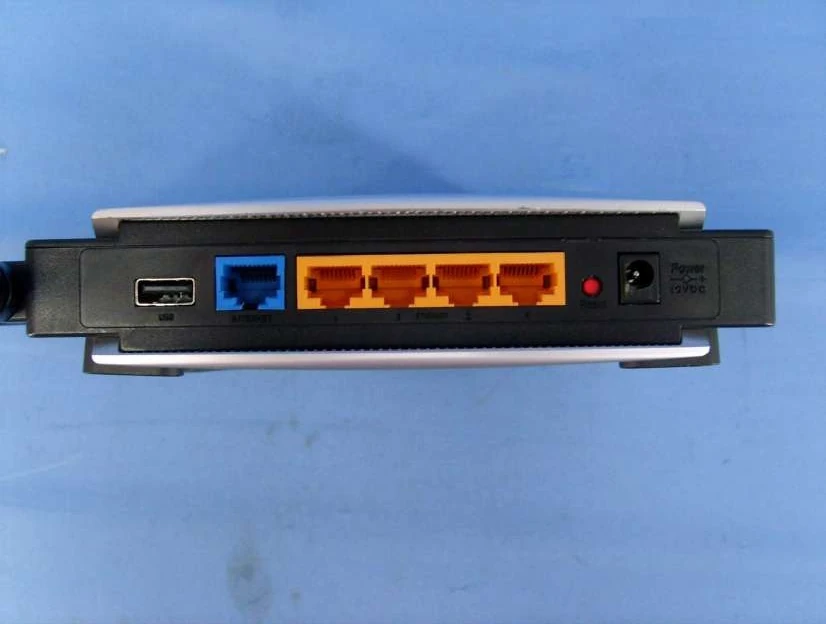

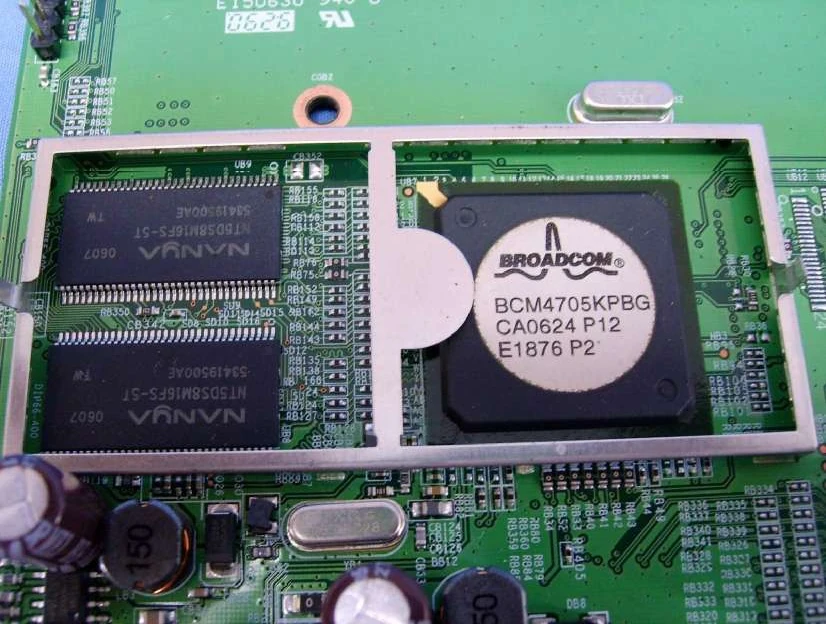

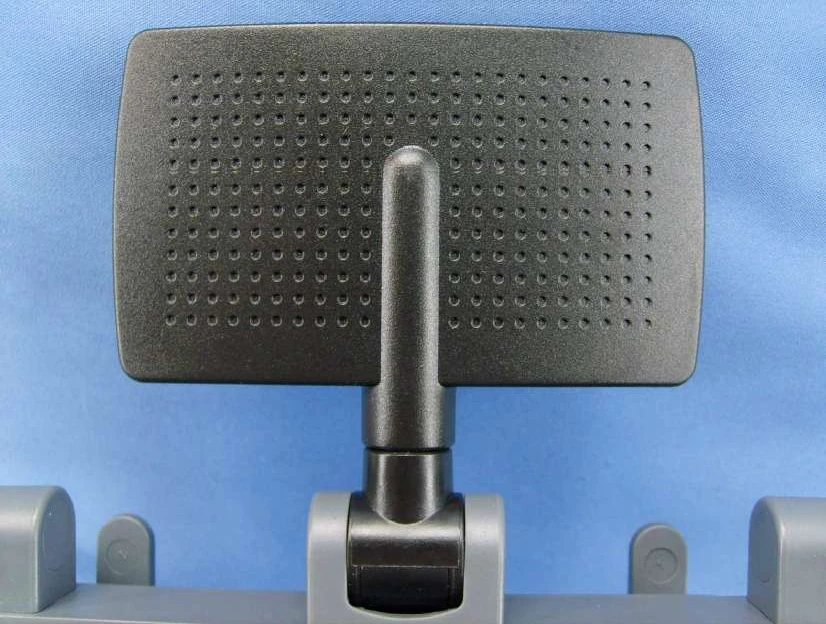

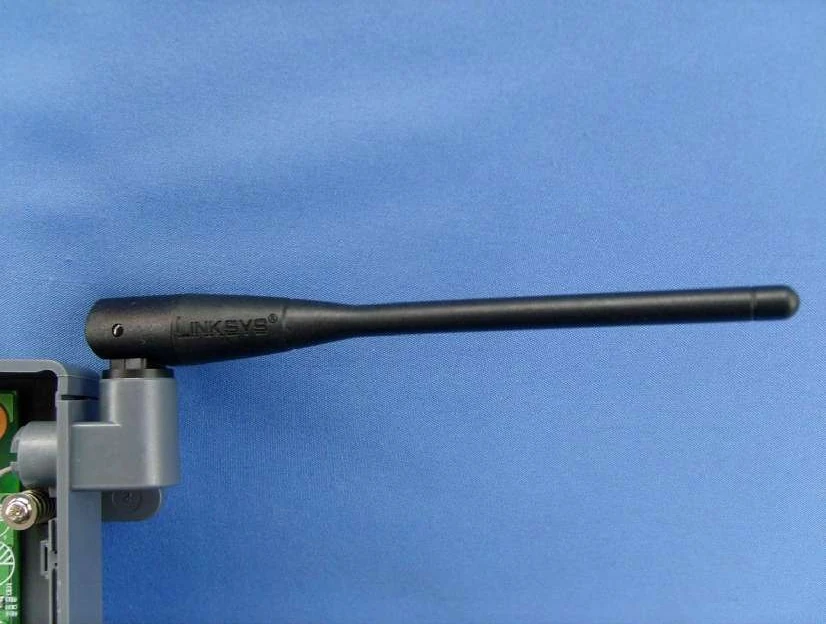

Linksys WRT350N v1 Linksys WRT350N v1 Linksys WRT350N v1

Linksys WRT350N v1 Linksys WRT350N v1 Linksys WRT350N v1

Linksys WRT350N v1 Linksys WRT350N v1 Linksys WRT350N v1

Linksys WRT350N v1 Linksys WRT350N v1 Linksys WRT350N v1

Linksys WRT350N v1 Linksys WRT350N v1 Linksys WRT350N v1

Linksys WRT350N v1 Linksys WRT350N v1 Linksys WRT350N v1

Linksys WRT350N v1 Linksys WRT350N v1 Linksys WRT350N v1

Linksys WRT350N v1 Linksys WRT350N v1 Linksys WRT350N v1

Linksys WRT350N v1 Linksys WRT350N v1
