File:Linksys WRT54G-TMa0.jpg
T-Mobile Hotspot Home Wireless Router

NOTE: K2.4 or K2.6 up to and including Mega can be flash to this router.
NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.
Makes a great main router (gateway), will also work as a client, client bridge, repeater, repeater bridge.

Specs

Platform

Serial Num. = CO61
FCC ID = Q87-WT54GV40
CPU Type = Broadcom BCM5352EKFBG (BCM5352 chip rev 0)
MIPS Rev = R1
CPU Speed = 200MHz
Bus = ?
Flash Type = Parallel
Flash Chip = i JS28F640 J3D75 A6427699 (Intel 28F640J3 4Mx16)
Flash Size = 8MB
Max Firmware Size = ?
RAM Size = 32MB
RAM Chip = hnnix 709U C HY5DU561622ETP-D43 K0R
nvram Size = ?
Switch = Broadcom BCM5352E (SoC)
Port-based vlan =
802.1q vlan = ?
Ethernet Port Count = 1-10/100-WAN 4-10/100-LAN
Wired Standard = IEEE 802.3?
boot_wait = ?
bootloader = CFE
Flash Card Socket/Type = No
SD/MMC Mod Support = Yes
MiniPCI slots = No
PoE = No
Power = 12V/1A
Color of LEDs = Green/Amber SES LED = White/Amber
Size = 7.32" x 1.89" x 6.06"
USB = No
Serial Port = 2
JTAG Port = Yes
Supported by TJTAG/Version = Yes/3.02
Supported by dd-wrt as of = v24-RC5 Sept 25, 2008
dd-wrt K2.4 Support = Yes
dd-wrt K2.6 Support = Yes
Special Features = ?

Radio (wl0)

Wireless Radio = Broadcom BCM2050KMLG
WLAN DSP processor = Broadcom BCM5352E (SoC)
Antenna Connector Type = RP-TNC Removable
Wireless Standard = IEEE 802.11b/g
WiFi Operating Frequency = 2.4GHz
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = 9
Radio Capabilities = ap sta wet led wme 802.11d 802.11h rm cqa mbss4
                     afterburner acktiming

Links of Interest

Flashing

by Luniz2k1

Please note that this guide is ONLY for the WRT54G-TM router and nothing else. Do NOT attempt to use this method on any other device, as it is written ONLY for the WRT54G-TM router. (Linksys WRT54G-TM and WRT54G-RG are identical in terms of hardware, but differ in terms of firmware, so you MUST USE THE CORRECT files. The WRT54G-TM was a t-mobile router put out by Linksys, and the WRT54G-RG was a Rogers router put out by rogers in Canada. )

In order to flash this router you need to do the following steps:

NOTE: Check the Peacock thread for recommended build numbers if unsure.

  • Download the TFTP utility
  • Download Tornado's CFE_Updater-WRT54G-TM.bin
  • Turn OFF/Disable any AV/Firewall on your pc.
  • Make sure your pc is wired to a LAN port on the router when flashing.

Note to new users: Do your research and find out what the latest build is and use it from the start, unless there are issues with the latest build preventing the WRT54G-TM from operating properly, then go to a previous build.

1. The default LAN IP Address of the Linksys WRT54G-TM is 192.168.0.1. You will need to set a Static IP Address on your computer for this procedure. If you are on Windows I suggest that you reset the router to it's defaults and set 2 LAN IP Address on your network controller to speed up the process, otherwise once you upload the CFE_Updater-WRT54G-TM.bin you will need to change your LAN IP Address from 192.168.0.2 to 192.168.1.2 to be able to TFTP DD-WRT onto the router.

On Windows XP, Control Panel/Network Connections/right-click on Local Area Connection icon and select Properties. On Windows Vista, Control Panel/Network and Sharing Center.

Go into the properties of the Local Area Connection/Internet Protocol TCP/IP and set the static IP address.

IP Address: 192.168.0.2
     Subnet Mask: 255.255.255.0
     Default Gateway: 192.168.0.1

Click the Advanced button in the TCP/IP setup window and in the IP Address section click the ADD button to add the following 2nd IP Address to the adapter:

IP Address: 192.168.1.2
     Subnet Mask: 255.255.255.0

Then click OK on each screen. Your network interface card (NIC) now has 2 LAN IP Address statically set on it, 192.168.0.2 and 192.168.1.2. This will allow your PC to communicate with the router before and after replacing the CFE on it. It will also allow you to be able to tell when the router is ready for a TFTP upload.

2. Open a command prompt window and type ping -t 192.168.1.1 and hit enter. Leave this window open.

3. Log into the WRT54G-TM's web interface @ http://192.168.0.1 (assuming that the router has been reset to defaults) and go to the Administration Tab - Firmware Upgrade. Upload the CFE_Updater-WRT54G-TM.bin to the router.

!!!ATTENTION!!! You MUST wait at least 5 minutes after clicking the Upgrade button to allow the CFE_Updater to replace the stock CFE on the router and for it to erase the rest of the flash, otherwise you will brick your router.

A few seconds after clicking the Upgrade button the Linksys web interface will report that the upload has been successful and the power light will begin flashing on the router. Do NOT assume that the CFE replacement/flash erasing/reboot process has finished as the power light will continue to flash after it has rebooted. So there is no way to tell when it is ready for you to TFTP the DD-WRT firmware to it except when you begin to see the ping respond.

So once it is finished replacing the stock CFE and erasing the rest of the flash, the router will reboot. When the router is ready for the TFTP upload of the DD-WRT firmware, you will see the ping -t 192.168.1.1 begin to respond in the command prompt window that you opened before.

4. Start up the TFTP utility and set the following:

Server: 192.168.1.1
     Password: <leave blank>
     File: <path to dd-wrt.v24-12548_NEWD_mega.bin> (or whichever build you wish to use)

Now click the Upgrade button. Once the firmware is sent to the router, it will reboot. The power light will change from flashing to solid when it is ready to be configured @ http://192.168.1.1

If you do not see a progress bar as the tftp utility transmits the file, you may need to power cycle your router. Wait until the tftp utility has finished its attempts, then power cycle (possibly waiting a few seconds) and wait until you can ping 192.168.1.1 before clicking Upgrade again.

A few notes:

  • Tornado has made it so that the router will retain it's MAC Address that is on the label on the bottom of the router with the new CFE replacement.
  • Tornado is in the process of making a revert bin for those who may choose to revert back to the stock Linksys firmware (god only know why)

Many thanks goes out to Tornado, Eko, and Brainslayer for their work on this!!! Cool

No more will you need to void your warranty by opening the WRT54G-TM to JTAG DD-WRT onto it, or spending $70+ USD for a WRT54G-TM pre-loaded with DD-WRT from eBay

5. Check for recommended builds here.

Upgrading

If dd-wrt is already on the router follow these instructions. If stock firmware is on the router follow the flashing instructions.

  1. Check for recommended builds here first.
  2. Set your computer to a static IP of 192.168.1.7. (or to whatever subnet the router is on) Disable all firewalls and security. Disable wireless on your computer and only have the router connected to the flashing computer by the ethernet cable between the two.
  3. Hard reset or 30/30/30 (If the router supports it, if not, reset to defults in the GUI) prior to flashing. Wait. Check for password page on re-login and change password.
  4. Flash firmware. You can use the webgui except if you have a belkin router. (For belkin use tftp.exe to flash)
  5. Wait...at least three minutes. Lights should return to normal. See important2, below. Failing to wait is how most people brick their routers.
  6. Do a power cycle of the router. (Unplug the cord, count to 30 and plug it back in.)
  7. Wait for the lights to return to normal usually about 2 minutes.
  8. Hard reset or 30/30/30 again (If the router supports it, if not, reset to defults in the GUI). Wait. Check for the password page and re-login to change the password. Then you can reconfigure your settings manually.
  9. Once configured set your computer back to autoIP and autoDNS.

Important1: This Hard reset or 30/30/30 works fine for Asus router, but you do have to power cycle after the reset.

Important2: After you flash the firmware, and before you do the hard reset, the router will be building some nvram settings. YOU MUST WAIT FOR THIS TO FINISH PRIOR TO DOING ANYTHING WITH THE ROUTER INCLUDING A HARD RESET. Usually, you can tell when this process is completed by the WAN light coming on, but it does take several minutes. Go have a beer. There are starting to be more and more people who BRICK their routers by not waiting until the nvram is rebuilt, PRIOR to doing a hard reset. YOU NEED TO WAIT!

Reverting

by Luniz2k1

Note: The default IP of the router will change from the default DD-WRT IP of 192.168.1.1, to the Linksys default IP of 192.168.0.1 midway through the process.

You will have to change the static IP of your rig accordingly.

Read and understand these procedures before attempting the revert process.

This procedure assumes you have the fundamental skills to access your router, set a static IP on your rig, and use the tftp utility found here on the forum. As with anything else in regards to cutting edge technology, you the user assume all risks.

If for some reason your mac’s (mac addresses) are not correct (per the sticker on your box), this process will let you change them. See :”To change the mac addresses of your router:” below.

If you mac’s are correct, you have to do nothing except run the revert utility.

No Mac Change:

1). Reset your box (router) to factory settings via the GUI.

2). Set a static IP on your rig of 192.168.1.110, subnet mask of 255.255.255.0, Default gateway of 192.168.1.1.

3). Access your router via the GUI. Depending of the version of DD-WRT that is on the box, you may be asked the change the user name and password.

4). Set the user name to “root” (no quotes)

5). Set the password to “admin” (no quotes)

6). Click “Change Password”

7).From the Administration tab, choose “Firmware Upgrade”.

8).Browse to the location of the TM-Revert.bin file and select it. Click the “Upgrade” button at the bottom of the page.

The file is a program that is loaded and executed by the router. This is not just flashing data. This will take some time to complete. Leave your router alone for at least five minutes after clicking the upgrade button.

The status of the led’s will be after running the revert: Power light flashing, wlan light off, only the lan light your rig is plugged into should be lit.

9). After two minutes, you need to change the static IP of your rig as well as the default gateway to the default Linksys IP. Change the IP of your rig to 192.168.0.110, subnet mask of 255.255.255.0, gateway 192.168.0.1

10). After 5 full minutes, it is now safe to tftp the stock Linksys firmware. If you are so inclined, you can verify by pinging 192.168.0.1. You should get a response and TTL=100 should be displayed.

11). Power cycling the device is not necessary. The revert has been tested both ways. One way, tftp the stock Linksys firmware without power cycling after waiting the full five minutes.

The other way, after waiting the full five minutes, power cycle the device, then tftp the stock Linksys firmware.

After the successful tftp of the stock firmware, the router will boot by itself. Leave the router alone after you receive a success message from the tftp utility.

You will know when the reboot is complete as the power led will quit blinking and turn solid, and the wlan led will illuminate. Once complete, access the devices GUI at 192.168.0.1 and configure to your liking.

Congratulations. You are done.

JTAG/Serial Info

JTAG

JTAG Pinouts
nTRST   1o o2	GND
  TDI   3o o4	GND
  TDO   5o o6	GND
  TMS   7o o8	GND
  TCK   9o o10	GND
nSRST  11o o12  N/C

Using Universal JTAG Adapter

white    1o o2	 black
  red    3o o4	 GND
 blue    5o o6	 GND
green    7o o8	 GND
yelow    9o o10  GND
orange  11o o12  N/C
  • /noemw switch required
JTAG Recovery
  1. Backup CFE x2 (Compare the files, they must match exactly or there is something wrong with your JTAG setup)
  2. Erase Wholeflash x2
  3. Flash CFE
  4. Unplug Power
  5. Unplug JTAG Cable

TFTP:

  1. Set Rig ip static 192.168.1.10
  2. Plug network cable from rig to port 1
  3. Plug in power
  4. click upgrade.
  5. wait, wait, wait. If you cannot browse the GUI of the router, return to step 1.
  6. Hard Reset 30\30\30

Serial

Serial Pinouts
VCC  1 o o 2  VCC
TX1  3 o o 4  TX0
RX1  5 o o 6  RX0
N/C  7 o o 8  N/C
GND  9 o o 10 GND
Hyper terminal Setup in Windows XP
In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 115200
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.
Putty Setup in Windows XP
After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 115200
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open
Serial Recovery
Modified redhawk0 instructions
  1. Connect Serial cable
  2. Start one of the programs from above
  3. Get TFTP ready with file selected
  4. Use dd-wrt.v24_mini_generic.bin
  5. Connect power to the router
  6. start a rapid fire Cntl-C as you plug the router to power
  7. type "nvram erase" w/o quotes, hit enter
  8. type "flash -noheader : flash1.trx" w/o quotes, this starts the tftp daemon, hit enter
  9. but have tftp.exe ready
  10. Click go or start on TFTP
  11. give it 5 minutes after it finishes
  12. then power cycle....Reset to default settings in the GUI...then config
  13. when it stops spitting out txt....hit the enter key...you should get a login prompt...at that point, power cycle it, hard reset...then config
  14. you'll see it boot up

vlan Info

Confirmed the WRT54G-TM v1.1 supports port-based vlans via the GUI with build 14929.

Confirmed the WRT54G-TM v1.1 supports port-based vlans via nvram with build 14929.

WRT54G-TM v1.1's ports are mapped like this:

1 2 3 4 | case labels
3 2 1 0 | nvram port numbers

Defaults

root@DD-WRT:~# nvram show | grep vlan.ports
vlan1ports=4 5
vlan0ports=3 2 1 0 5*
size: 19238 bytes (13530 left)
root@DD-WRT:~# nvram show | grep port.vlans
port5vlans=0 1 16
port4vlans=0
port3vlans=0
port2vlans=0
port1vlans=0
port0vlans=1
size: 19238 bytes (13530 left)
root@DD-WRT:~# nvram show | grep vlan.hwname
vlan1hwname=et0
vlan0hwname=et0
root@DD-WRT:~# lsmod
Module                  Size  Used by
ip_nat_pptp             2560   0 (unused)
ip_conntrack_pptp       3036   1
ip_nat_proto_gre        1664   0 (unused)
ip_conntrack_proto_gre    2584   0 [ip_nat_pptp ip_conntrack_pptp]
etherip                 5104   0 (unused)
switch-robo             5356   0 (unused)
switch-core             6352   0 [switch-robo]
root@DD-WRT:~# ls /proc/switch
eth0
root@DD-WRT:~# cat /proc/switch/eth0/vlan/0/ports
0       1       2       3       5t*
root@DD-WRT:~# cat /proc/switch/eth0/vlan/1/ports
4       5t
root@DD-WRT:~# cat /proc/switch/eth0/vlan/2/ports
I
root@DD-WRT:~#

GUI

root@DD-WRT:~# nvram show | grep vlan.ports
vlan1ports=4 5
vlan0ports=3 2 1 0 5*
size: 19389 bytes (13379 left)
root@DD-WRT:~# nvram show | grep port.vlans
port5vlans=0 1 16
port4vlans=1 18 19
port3vlans=0 18 19
port2vlans=0 18 19
port1vlans=0 18 19
port0vlans=1 18 19
size: 19389 bytes (13379 left)
root@DD-WRT:~# nvram show | grep vlan.hwname
vlan1hwname=et0
vlan0hwname=et0
size: 19389 bytes (13379 left)
root@DD-WRT:~#

Commands

root@DD-WRT:~# nvram set vlan1ports="3 4 5"
root@DD-WRT:~# nvram set vlan0ports="2 1 0 5*"
root@DD-WRT:~# nvram commit
root@DD-WRT:~# reboot

nvram

root@DD-WRT:~# nvram show | grep vlan.ports
vlan1ports=3 4 5
vlan0ports=2 1 0 5*
size: 19340 bytes (13428 left)
root@DD-WRT:~# nvram show | grep port.vlans
port5vlans=0 1 16
port4vlans=0
port3vlans=0
port2vlans=0
port1vlans=0
port0vlans=1
size: 19340 bytes (13428 left)
root@DD-WRT:~# nvram show | grep vlan.hwname
vlan1hwname=et0
vlan0hwname=et0
size: 19340 bytes (13428 left)
root@DD-WRT:~#

Pictures

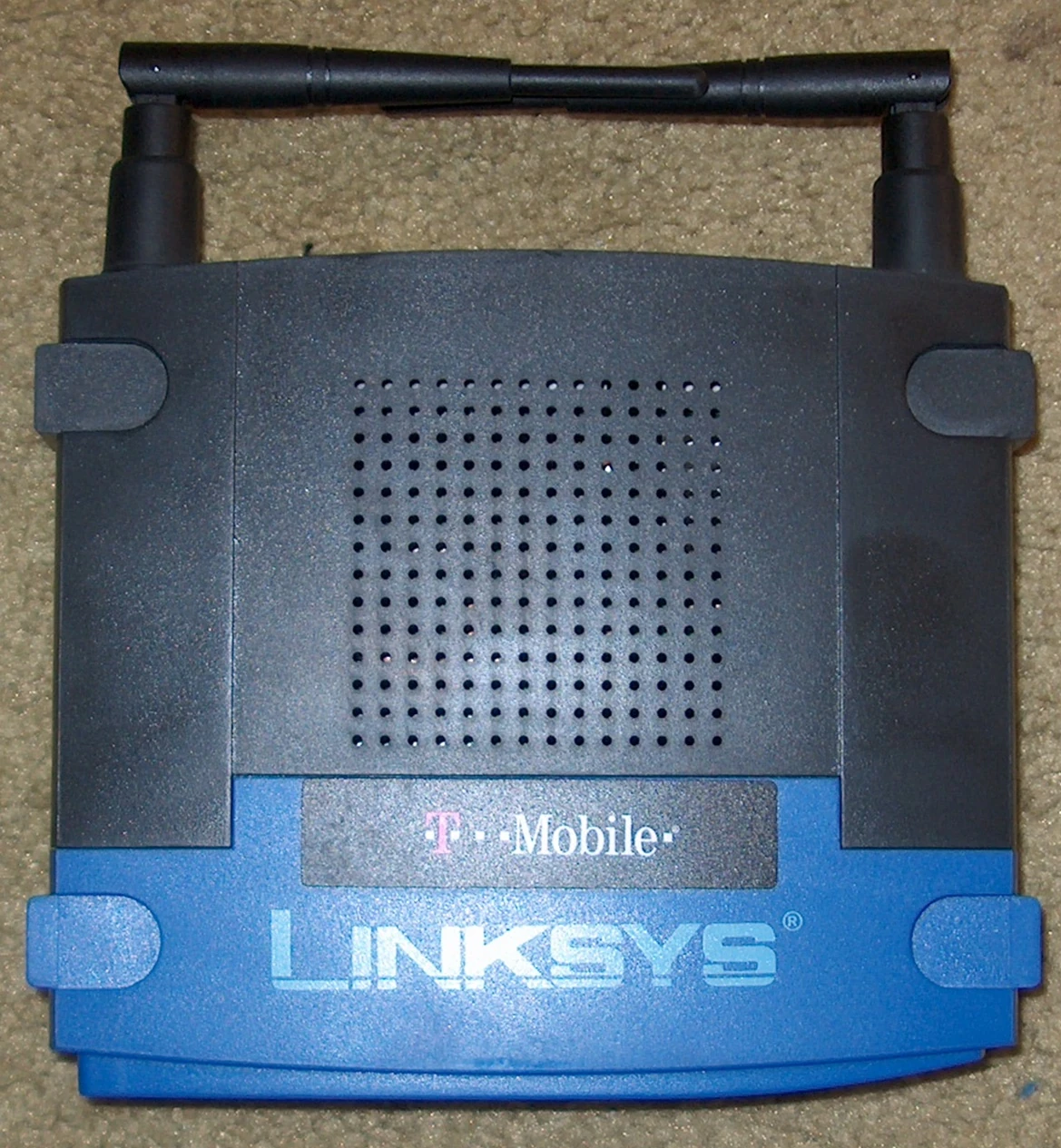

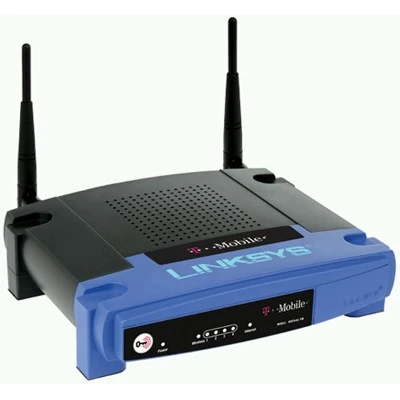

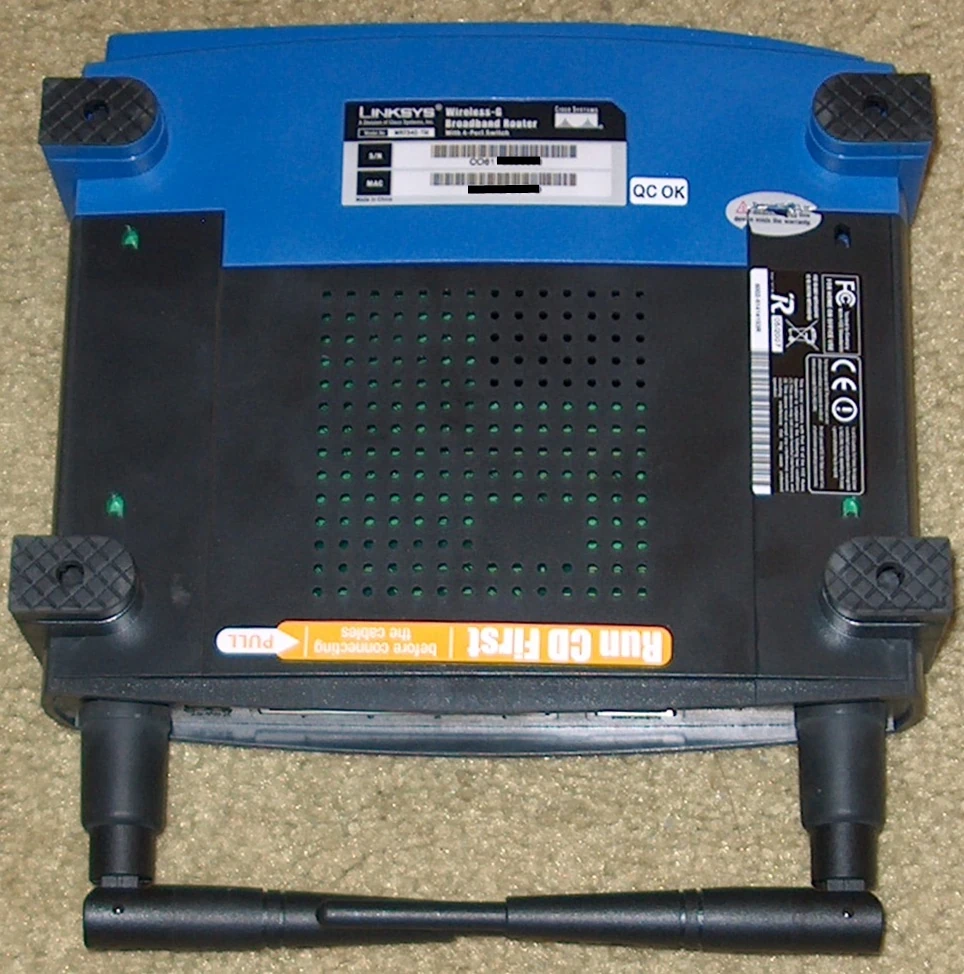

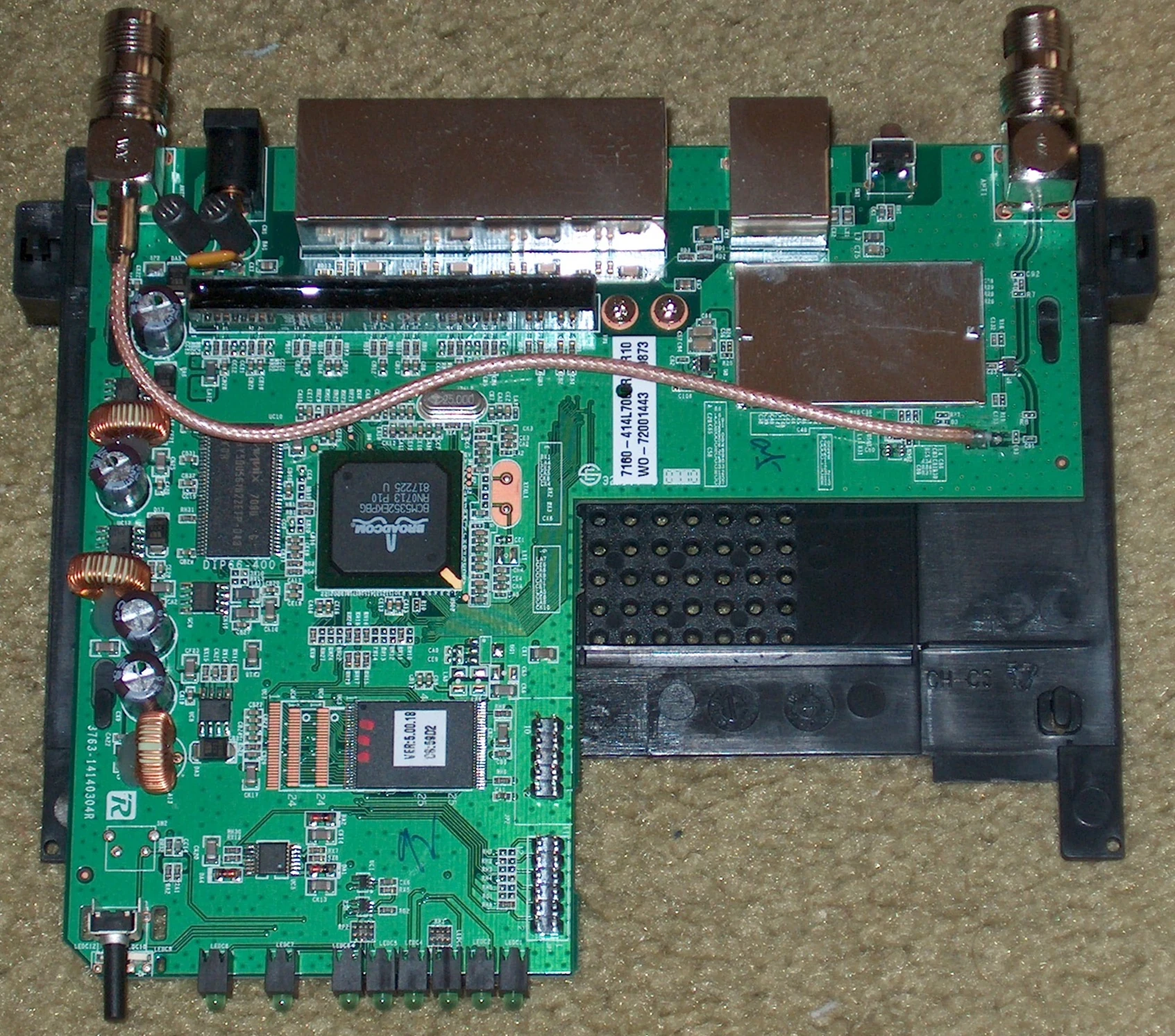

Linksys WRT54G-TM v1 Linksys WRT54G-TM v1 Linksys WRT54G-TM v1

Linksys WRT54G-TM v1

FCC Pictures

Notes
