Wireless-G Broadband Router with SpeedBooster |
NOTE: Requires Micro, Do not flash anything else.
NOTE: Requires K2.4, Do not flash anything else.
NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.
Works well as a client, client bridge, repeater, repeater bridge. Not enough flash space to make it an optimal gateway.
Specs
Platform
Serial Num. = CGN9 FCC ID = Q87-WT54GV60 CPU Type = Broadcom BCM5352EKFBG (BCM5352 chip rev 0) MIPS Rev = ? CPU Speed = 200MHz Bus = ? Flash Type = Parallel Flash Chip = Intel JS28F160 C3BD70 A6217291 Flash Size = 2MB Max Firmware Size = 1769472 bytes RAM Size = 16MB RAM Chip = Samsung 619 K4S281632I-UC75 nvram Size = ? Switch = Broadcom BCM5352EKFBG (SoC) Port-based vlan = Yes - GUI & nvram with micro-plus-SSH 802.1q vlan = ? Ethernet Port Count = 1-10/100-WAN 4-10/100-LAN Wired Standard = IEEE 802.3/3u boot_wait = ? bootloader = CFE Flash Card Socket/Type = No SD/MMC Mod Support = No MiniPCI slots = No PoE = No Power = 12V/.5A Color of LEDs = ? Size = ? USB = No Serial Port = 2 JTAG Port = Yes Supported by TJTAG/Version = Yes/3.02 Supported by dd-wrt as of = ? dd-wrt K2.4 Support = Yes dd-wrt K2.6 Support = No Special Features = ?
Radio (wl0)
Wireless Radio = Broadcom BCM2050KMLG WLAN DSP processor = Broadcom BCM5352EKFBG (SoC) Antenna Connector Type = RP-TNC Removable Wireless Standard = IEEE 802.11b/g WiFi Operating Frequency = 2.4GHz 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b = 1, 2, 5.5, 11Mbps Radio cor_rev = 9 Radio Capabilities = ap sta wet led wme 802.11d 802.11h rm cqa mbss4 afterburner acktiming
Links of Interest
Flashing
These instructions are for the WRT54gS version v.5 and v.6. NOTE THE S. The instructions for the router Wrt54g WITHOUT the S are above.
IN SPITE OF SOME OTHER INSTRUCTIONS ELSEWHERE, YOU REALLY NEED TO CREATE A CUSTOM VX Image for your router. If you don’t you will get a generic mac address on your router and a generic mac address will mean most ISP won’t let you connect to the internet. Here is how to do it properly
There is good information at the scorpiontek site: http://www.scorpiontek.org/portal/content/view/27/36
Go to this thread and download the zipped files in GV5Flash.zip: http://www.dd-wrt.com/phpBB2/viewtopic.php?t=58231
- Read the peacock announcement found here: http://www.dd-wrt.com/phpBB2/viewtopic.php?t=51486
- Do a Hard reset or 30/30/30 on the router according to note 1 of the peacock announcement (30/30/30)
- Set a static IP on your computer to 192.168.1.7
- Connect the lan cable from your computer to a LAN port of your router. Make sure your router is plugged in.
- Unzip the file you downloaded and place it in a location you can easily find on your computer
- Unzip the VXImgToolGui.zip file to the same folder as where you placed the other files you downloaded
- Delete the vxworks_prep_v03.bin file
- Go to this location and download the vxworks_prep_GS_v03.bin file: http://www.dd-wrt.com/dd-wrtv2/downloads/others/wrt54gv5%20flashing/vxworks_prep_gs_v03.zip
- Click on the VXImgToolGui.exe program
- Make sure the top button is on the right for WRT54GS, not the left for WRT54G.
- Put the mac address from the bottom of your router in the box that says "Desired Mac Address"
- Click on the three dots next to "output image" and save the file as My54gsImage.bin in the same folder as everything else is located.
- Power cycle the router (uplug the power from the router for 30 seconds and then plug it back in)
- Open your browser to 192.168.1.1 but putting that in the browser address window of your browser. You should open the linksys webgui and NOT a page that says Management Mode. If you see management mode, power cycle the router again.
- Enter "root" as the username and "admin" as the password
- Go to administration and firmware upgrade
- Navigate to the folder that you are using, and select vxworks_prep_GS_v03.bin
- Hit upgrade.
- Wait for FIVE FULL MINUTES. Go for a walk. Don't you TOUCH that router for FIVE MINUTES.
- When five full earth minutes have passed, power cycle the router
- Refresh your browser window. If you get a blank window, clear your browser cache. NOW you should be in the MANAGEMENT MODE window.
- Select the My54gImage.bin file that you created. Hit upgrade.
- Wait for the "Upgrade Success" message, and then WAIT FIVE FULL MINUTES again. Don't TOUCH your router.
- Start tftp.exe
- Enter 192.168.1.1 as the address in the top box of tftp.exe
- Leave the password blank
- Select the 12548 Newd_Micro.bin firmware
- Set retries to 99.
- Power cycle the router
- Count to 2
- Hit upgrade
- When you get a success, wait FIVE FULL minutes.
- When you can access the dd-wrt webgui using a browser at 192.168.1.1, power cycle the router.
- When you can again access the dd-wrt webgui using a browser at 192.168.1.1, do another Hard reset or 30/30/30 on the router.
- Reset your computer ethernet connection to auto IP and auto DNS
- Check for recommended builds here.
Upgrading
If dd-wrt is already on the router follow these instructions. If stock firmware is on the router follow the flashing instructions.
- Check for recommended builds here first.
- Set your computer to a static IP of 192.168.1.7. (or to whatever subnet the router is on) Disable all firewalls and security. Disable wireless on your computer and only have the router connected to the flashing computer by the ethernet cable between the two.
- Hard reset or 30/30/30 (If the router supports it, if not, reset to defults in the GUI) prior to flashing. Wait. Check for password page on re-login and change password.
- Flash firmware. You can use the webgui except if you have a belkin router. (For belkin use tftp.exe to flash)
- Wait...at least three minutes. Lights should return to normal. See important2, below. Failing to wait is how most people brick their routers.
- Do a power cycle of the router. (Unplug the cord, count to 30 and plug it back in.)
- Wait for the lights to return to normal usually about 2 minutes.
- Hard reset or 30/30/30 again (If the router supports it, if not, reset to defults in the GUI). Wait. Check for the password page and re-login to change the password. Then you can reconfigure your settings manually.
- Once configured set your computer back to autoIP and autoDNS.
Important1: This Hard reset or 30/30/30 works fine for Asus router, but you do have to power cycle after the reset.
Important2: After you flash the firmware, and before you do the hard reset, the router will be building some nvram settings. YOU MUST WAIT FOR THIS TO FINISH PRIOR TO DOING ANYTHING WITH THE ROUTER INCLUDING A HARD RESET. Usually, you can tell when this process is completed by the WAN light coming on, but it does take several minutes. Go have a beer. There are starting to be more and more people who BRICK their routers by not waiting until the nvram is rebuilt, PRIOR to doing a hard reset. YOU NEED TO WAIT!
Reverting
To get back to VxWorks (default firmware) you need special instructions.
http://www.bitsum.com/openwiking/owbase/ow.asp?WRT54G5%5FCFE#h13
http://www.scorpiontek.org/portal/content/view/31/36/
JTAG/Serial Info
JTAG
JTAG Pinouts
nTRST 1o o2 GND TDI 3o o4 GND TDO 5o o6 GND TMS 7o o8 GND TCK 9o o10 GND nSRST 11o o12 N/C
Using Universal JTAG Adapter
white 1o o2 black red 3o o4 GND blue 5o o6 GND green 7o o8 GND yelow 9o o10 GND orange 11o o12 N/C
- /noemw /nocwd switches required
JTAG Recovery
JTAG:
- Backup CFE x2 (Compare the files, they must match exactly or there is something wrong with your JTAG setup)
- Erase Wholeflash x2
- Flash CFE
- Unplug Power
- Unplug JTAG Cable
TFTP:
- Set Rig ip static 192.168.1.10
- Plug network cable from rig to port 1
- Get TFTP ready, server ip - 192.168.1.1, Password - blank, file - dd-wrt.v24_micro_generic.bin
- Plug in power
- As soon as windows says "connected" hit upgrade. May have to use a network hub to make sure windows is always connected.
- Hard Reset 30\30\30
Serial
Serial Pinouts
VCC 1 o o 2 VCC TX1 3 o o 4 TX0 RX1 5 o o 6 RX0 N/C 7 o o 8 N/C GND 9 o o 10 GND
Hyper terminal Setup in Windows XP
In Windows XP, Click Start Button - All Programs - Accessories - Communication - HyperTerminal Enter a name for the connection, Click ok Choose com port you adapter is plugged into, Click ok Set: Bits per second = 115200 Data Bits = 8 Parity = none Stop bits = 1 Flow control = none Click ok Click File - Save As, and select a place to save it to so you don't have to enter the settings again.
Putty Setup in Windows XP
After installing putty, run it Serial line = The COM port your using for serial (ie. COM3) Speed = 115200 Click on Serial under Connection Serial line to connect to = same as above (Serial line) Speed (baud) = 115200 Data bits = 8 Stop bits = 1 Parity = None Flow control = None Click Session Enter a name for your connection under saved sessions Click Save Click Open
Serial Recovery
Modified Redhawk0 instructions
- Connect Serial cable
- Start one of the programs from above
- Get TFTP ready with file selected
- Use dd-wrt.v24_micro_generic.bin
- Connect power to the router
- start a rapid fire Cntl-C as you plug the router to power
- type "nvram erase" w/o quotes, hit enter
- type "flash -noheader : flash1.trx" w/o quotes, this starts the tftp daemon, hit enter
- but have tftp.exe ready
- Click go or start on TFTP
- give it 5 minutes after it finishes
- then power cycle....hard reset...then config
- when it stops spitting out txt in the serial consol....hit the enter key...you should get a login prompt...at that point, power cycle it, Hard reset or 30/30/30...then config
- you'll see it boot up
vlan Info
Confirmed the WRT54GS v6.0 supports port-based vlans via the GUI and nvram with build 14853 micro-plus-SSH.
WRT54GS v6.0's ports are mapped like this:
1 2 3 4 | case labels 3 2 1 0 | nvram port numbers
Defaults
root@DD-WRT:~# nvram show | grep vlan.ports vlan1ports=4 5 vlan0ports=3 2 1 0 5* size: 17327 bytes (15441 left) root@DD-WRT:~# nvram show | grep port.vlans port5vlans=0 1 16 port4vlans=0 port3vlans=0 port2vlans=0 port1vlans=0 port0vlans=1 size: 17327 bytes (15441 left) root@DD-WRT:~# nvram show | grep vlan.hwname vlan1hwname=et0 vlan0hwname=et0 size: 17327 bytes (15441 left) root@DD-WRT:~# lsmod Module Size Used by ip_nat_pptp 2192 0 (unused) ip_conntrack_pptp 2524 1 ip_nat_proto_gre 1552 0 (unused) ip_conntrack_proto_gre 2312 0 [ip_nat_pptp ip_conntrack_pptp] switch-robo 5036 0 (unused) switch-core 5984 0 [switch-robo] root@DD-WRT:~# ls /proc/switch eth0 root@DD-WRT:~# cat /proc/switch/eth0/vlan/0/ports 0 1 2 3 5t* root@DD-WRT:~# cat /proc/switch/eth0/vlan/1/ports 4 5t root@DD-WRT:~# cat /proc/switch/eth0/vlan/2/ports 4 root@DD-WRT:~#
Commands
root@DD-WRT:~# nvram set vlan1ports="3 4 5" root@DD-WRT:~# nvram set vlan0ports="2 1 0 5*" root@DD-WRT:~# nvram commit root@DD-WRT:~# reboot
nvram
root@DD-WRT:~# nvram show | grep vlan.ports vlan0ports=2 1 0 5* vlan1ports=3 4 5 size: 17433 bytes (15335 left) root@DD-WRT:~# nvram show | grep port.vlans port5vlans=0 1 16 port3vlans=0 port1vlans=0 port4vlans=0 size: 17433 bytes (15335 left) port2vlans=0 port0vlans=1 root@DD-WRT:~# nvram show | grep vlan.hwname vlan1hwname=et0 size: 17433 bytes (15335 left) vlan0hwname=et0 root@DD-WRT:~#

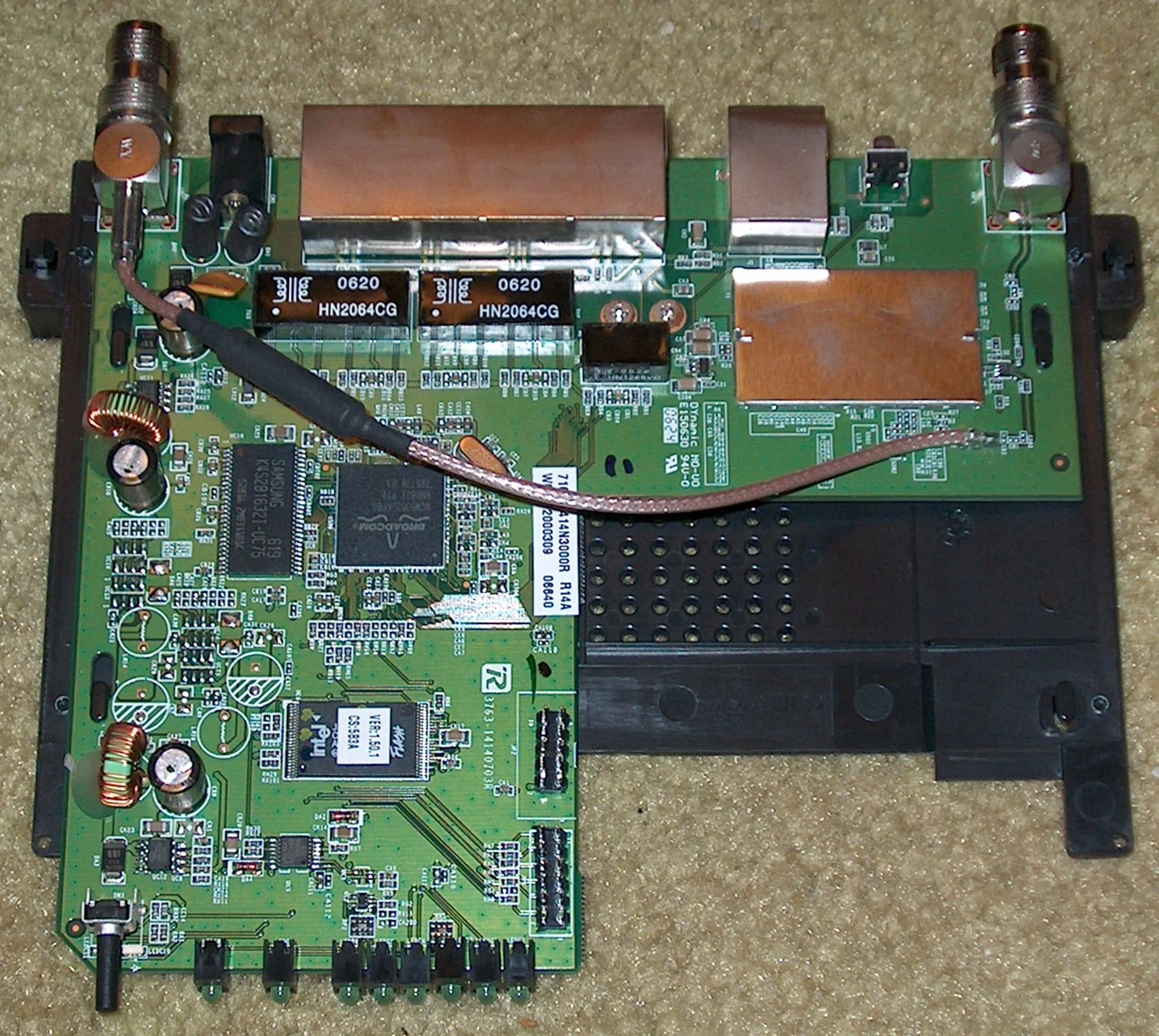

Pictures
FCC Pictures
Notes
Hardware Modification
