Wireless-G Broadband Router with SpeedBooster

NOTE: Requires Micro, Do not flash anything else.
NOTE: Requires K2.4, Do not flash anything else.
NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.

Works well as a client, client bridge, repeater, repeater bridge. Not enough flash space to make it an optimal gateway.

Specs

Platform

Serial Num. = CGNE
FCC ID = Q87-WRT54GSV72
CPU Type = Broadcom BCM5354KFBG (BCM5354 chip rev 2 SoC)
MIPS Rev = ?
CPU Speed = 240MHz
Bus = ?
Flash Type = Parallel
Flash Chip = EON EN29LV160AB-70TCP H28308C 0822HSC
Flash Size = 2MB
Max Firmware Size = 1769472 bytes
RAM Size = 16MB
RAM Chip = hynix 817A C HY57V281620ETP-H
nvram Size = ?
Switch = Broadcom BCM5354KFBG (BCM5354 chip rev 2 SoC)
vlan Support = ?
Ethernet Port Count = 1-10/100-WAN 4-10/100-LAN
Wired Standard = IEEE 802.3/3u
boot_wait = ?
bootloader = CFE
Flash Card Socket/Type = No
SD/MMC Mod Support = No
MiniPCI slots = No
PoE = No
Power = 12V/.5A
Color of LEDs = ?
Size = ?
USB = No
Serial Port = Yes
JTAG Port = Yes
Supported by TJTAG/Version = Yes/3.02
Supported by dd-wrt as of = ?
dd-wrt K2.4 Support = Yes
dd-wrt K2.6 Support = No
Special Features = ?

Radio (wl0)

Wireless Radio = Broadcom BCM5354KFBG (BCM5354 chip rev 2 SoC)
WLAN DSP processor = Broadcom BCM5354KFBG (BCM5354 chip rev 2 SoC)
Antenna Connector Type = External Fixed
Wireless Standard = IEEE 802.11b/g
WiFi Operating Frequency = 2.4GHz
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = 13
Radio Capabilities = ap sta wet led wme 802.11d 802.11h rm cqa mbss4
                     afterburner acktiming

Links of Interest

Flashing

Linksys WRT54GS-RM (CGNC) Same as Linksys WRT54GS v7.0

NOTE TO WINDOWS VISTA USERS: By default the TFTP Client is disabled and you SHALL NOT PROCEED UNLESS YOU HAVE ENABLED IT. To enable: click the Start orb and type the following into the Start Search field: "features" (Without the " " of course, but you have to tell some people). At the top of the Windows Start Bar, you will see "Programs and Features;" click on that. In the left pane of the new window, click Turn Windows Features on or off. Scroll down through the Windows Features until you see TFTP Client. Select the option box and press OK.

METHOD FOR EOC, INTEL, AND POSSIBLY OTHER FLASH CHIPS

First download the latest files from here. SVN Builds Choose the latest build and download the latest dd-wrt.v24-micro_generic.bin from the broadcom folder. You will also need vxworkskillerGSv7-v3.bin

  1. Configure your local LAN ethernet address to 192.168.1.100 and connect your local ethernet to your WRT54GSv7 on one of the four switch ports. Do not use a wlan connection! (can someone clarify how to configure your lan ethernet address to 192.168.1.100?)
  2. Disconnect the power cord from the WRT54GSv7.
  3. Push the reset button while reconnecting the power cord and hold the button for about 20 seconds.
  4. Open your browser and open http://192.168.1.1
  5. Use the firmware upgrade dialogue to flash vxworkskillerGSv7-v3.bin.
  6. After the dialogue about disconnecting the power cord is shown, disconnect the power cord and reconnect it.
  7. Wait for about two minutes.
  8. Again disconnect the power cord and reconnect it.
  9. Enter "tftp -i 192.168.1.1 put dd-wrt.v24-micro_generic.bin" on your local Windows console and press enter.
    1. (If you're using Windows Vista or Windows 7, you need to first enable the tftp client)
    2. (for linux, tftp 192.168.1.1; mode octet;put dd-wrt.v24-micro_generic.bin or tftp -v -m octet 192.168.1.1 -c put dd-wrt.v24-micro_generic.bin).
  10. The file will now be transferred to your router and be flashed. After this is done, your router will boot automatically and you can reach your it at http://192.168.1.1.
  11. Check for recommended builds here.

ALTERNATE METHOD TO FLASH DD-WRT ON A WRT54GS v7 WITH AN INTEL FLASH CHIP

I just loaded DD-WRT v24 RC7 on two of the WRT54GS v7 with an Intel flash chip. I used the latest vxworkskiller. Below are instructions. Intel chip says JS28F160, C3BD70, and A7397147. Router is dated December 2007. S/N starts with CGNC.

  1. Manually configure your IP to 192.168.1.10.
  2. Reset router to factory defaults.
  3. Update firmware to vxworkskillerGSv7-v3.bin, the update will finish.
  4. Watch the lights on the router. Wait until the Power light is solid, then unplug the router.
  5. Plug the router back in.
  6. Get "tftp -i 192.168.1.1 PUT dd-wrt.v24-micro_generic.bin" ready in a command prompt and hit enter.
  7. After the tftp is finished wait and watch the router lights.
    1. The Power light will eventually come one.
    2. Shortly after that the WLAN light will come on.
  8. Try to load the web configuration page about 5 seconds later; you're done!
  9. Check for recommended builds here.

Another similar method to flash WRT54G v8 and WRT54GS v7.2 (possibly other 7.x)

I've been doing something slightly different on WRT54G v8 and this WRT54GS v7, it hasn't failed me yet, below are the instructions. I have done this on a countless number of WRT54G v8s and just did it on a WRT54GS v7 and it worked just the same. There is no resetting in the middle of this process, just do exactly what it says below, no more and no less. My WRT54GS v7 has a Broadcom BCM5354KFBG CPU and an EON EN29LB160AB-70TCP flash chip and 16MB of Samsung RAM. The FCC ID is Q87-WRT54GSV72 which maybe means it's a v7.2? Serial number starts with CGNE.

[Addition: tiger12506 adds that he has succesfully performed this on two WRT54GS v7.2 with CGNE serial numbers. He felt that it was impossible, that he had bricked one of the routers at first. Messing around with JTAG cables taught him some things, but... be sure(!) Be absolutely sure that you have tftp set to binary or octel. If you leave tftp in ascii it will appear to work but the flash won't take.]

  1. Use the web interface to reset the router to factory defaults.
  2. Manually configure network interface to 192.168.1.10. (Any address from 192.168.1.2 - 192.168.1.254 should work)
    1. (In linux, this is sudo ifconfig eth0 192.168.1.10)
  3. Use the web inferface to update the firmware to vxworkskillerGSv7-v3.bin.
  4. tftp -i 192.168.1.1 PUT dd-wrt.v24_micro_generic.bin (Windows only)
    1. [For linux users: use tftp. You may have to sudo apt-get install tftp or your equivalent.
      1. tftp 192.168.1.1
      2. tftp> mode binary
      3. tftp> put dd-wrt.v24_micro_generic.bin
      4. tftp> quit
  5. As soon as that is finished do this: ping 192.168.1.1 /t (Windows only)
    1. This will time out repeatedly and then the router will respond between two and six times.
    2. The router will time out again a few times and then start responding to pings.
    3. [At this point, tiger12506 had a little trouble, but after a long reset, and some short resets, more and more lights came on until finally the WLAN light came on and the router functioned normally running DD-WRT]
  6. You're done, try to load 192.168.1.1.
  7. Check for recommended builds here.

Upgrading

If dd-wrt is already on the router follow these instructions. If stock firmware is on the router follow the flashing instructions.

  1. Check for recommended builds here first.
  2. Set your computer to a static IP of 192.168.1.7. (or to whatever subnet the router is on) Disable all firewalls and security. Disable wireless on your computer and only have the router connected to the flashing computer by the ethernet cable between the two.
  3. Hard reset or 30/30/30 (If the router supports it, if not, reset to defults in the GUI) prior to flashing. Wait. Check for password page on re-login and change password.
  4. Flash firmware. You can use the webgui except if you have a belkin router. (For belkin use tftp.exe to flash)
  5. Wait...at least three minutes. Lights should return to normal. See important2, below. Failing to wait is how most people brick their routers.
  6. Do a power cycle of the router. (Unplug the cord, count to 30 and plug it back in.)
  7. Wait for the lights to return to normal usually about 2 minutes.
  8. Hard reset or 30/30/30 again (If the router supports it, if not, reset to defults in the GUI). Wait. Check for the password page and re-login to change the password. Then you can reconfigure your settings manually.
  9. Once configured set your computer back to autoIP and autoDNS.

Important1: This Hard reset or 30/30/30 works fine for Asus router, but you do have to power cycle after the reset.

Important2: After you flash the firmware, and before you do the hard reset, the router will be building some nvram settings. YOU MUST WAIT FOR THIS TO FINISH PRIOR TO DOING ANYTHING WITH THE ROUTER INCLUDING A HARD RESET. Usually, you can tell when this process is completed by the WAN light coming on, but it does take several minutes. Go have a beer. There are starting to be more and more people who BRICK their routers by not waiting until the nvram is rebuilt, PRIOR to doing a hard reset. YOU NEED TO WAIT!

Reverting

  1. Reset to defaults
  2. goto the Admin screen firmware upgrade, and browse to VxWorksRevert-GSv7-v3.bin, and click upgrade. During this time the Web browser may say upgrade succesfull and to reboot -----"Do NOT REBOOT"----- Wait for 2 min's and then reboot.
  3. Goto http;//192.168.1.1 and you should see a mgmt mode screen, this is where you browse to the original Linksys Firmware, and and upgrade.
  4. Wait for 1 min, even if it say's upgrade successful and to reboot, believe me, in my tests, it has not finished yet.
  5. goto http://192.168.1.1 - you should have the regular Linksys Firmware.

JTAG/Serial Info

JTAG

JTAG Pinouts
nTRST   1o o2	GND
  TDI   3o o4	GND
  TDO   5o o6	GND
  TMS   7o o8	GND
  TCK   9o o10	GND
nSRST  11o o12  N/C

Using Universal JTAG Adapter

white    1o o2	 black
  red    3o o4	 GND
 blue    5o o6	 GND
green    7o o8	 GND
yelow    9o o10  GND
orange  11o o12  N/C
  • /noreset switch required
JTAG Recovery

JTAG:

  1. Backup CFE x2 (Compare the files, they must match exactly or there is something wrong with your JTAG setup)
  2. Erase Wholeflash x2
  3. Flash CFE
  4. Unplug Power
  5. Unplug JTAG Cable

TFTP:

  1. Set Rig ip static 192.168.1.10
  2. Plug network cable from rig to port 1
  3. Get TFTP ready, server ip - 192.168.1.1, Password - blank, file - dd-wrt.v24_micro_generic.bin
  4. Plug in power
  5. As soon as windows says "connected" hit upgrade. May have to use a network hub to make sure windows is always connected.
  6. Hard Reset 30\30\30

Serial

Serial Pinouts
VCC  1 o
 TX  2 o
 RX  3 o
N/C  4 o
GND  5 o
Hyper terminal Setup in Windows XP
In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 115200
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.
Putty Setup in Windows XP
After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 115200
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open
Serial Recovery

Modified Redhawk0 instructions

  1. Connect Serial cable
  2. Start one of the programs from above
  3. Get TFTP ready with file selected
  4. Use dd-wrt.v24_micro_generic.bin
  5. Connect power to the router
  6. start a rapid fire Cntl-C as you plug the router to power
  7. type "nvram erase" w/o quotes, hit enter
  8. type "flash -noheader : flash1.trx" w/o quotes, this starts the tftp daemon, hit enter
  9. but have tftp.exe ready
  10. Click go or start on TFTP
  11. give it 5 minutes after it finishes
  12. then power cycle....hard reset...then config
  13. when it stops spitting out txt in the serial consol....hit the enter key...you should get a login prompt...at that point, power cycle it, Hard reset or 30/30/30...then config
  14. you'll see it boot up

vlan Info

Confirmed the WRT54GS v7.2 supports port-based vlans via the GUI.

Confirmed the WRT54GS v7.2 supports port-based vlans via nvram with build 14853 micro-plus-SSH.

WRT54GS v7.2's ports are mapped like this:

1 2 3 4 | case labels
3 2 1 0 | nvram port numbers

Defaults

root@DD-WRT:~# nvram show | grep vlan.ports
vlan1ports=4 5
vlan0ports=3 2 1 0 5*
size: 17324 bytes (15444 left)
root@DD-WRT:~# nvram show | grep port.vlans
port5vlans=0 1 16
port4vlans=0
port3vlans=0
port2vlans=0
port1vlans=0
port0vlans=1
size: 17324 bytes (15444 left)
root@DD-WRT:~# nvram show | grep vlan.hwname
vlan1hwname=et0
vlan0hwname=et0
size: 17324 bytes (15444 left)
root@DD-WRT:~#

Commands

root@DD-WRT:~# nvram set vlan1ports="3 4 5"
root@DD-WRT:~# nvram set vlan0ports="2 1 0 5*"
root@DD-WRT:~# nvram commint
root@DD-WRT:~# reboot

nvram

root@DD-WRT:~# nvram show | grep vlan.ports
vlan1ports=3 4 5
vlan0ports=2 1 0 5*
size: 17325 bytes (15443 left)
root@DD-WRT:~# nvram show | grep port.vlans
port5vlans=0 1 16
port4vlans=0
port3vlans=0
port2vlans=0
port1vlans=0
port0vlans=1
size: 17325 bytes (15443 left)
root@DD-WRT:~# nvram show | grep vlan.hwname
vlan1hwname=et0
vlan0hwname=et0
size: 17325 bytes (15443 left)
root@DD-WRT:~# lsmod
Module                  Size  Used by
ip_nat_pptp             2192   0 (unused)
ip_conntrack_pptp       2524   1
ip_nat_proto_gre        1552   0 (unused)
ip_conntrack_proto_gre    2312   0 [ip_nat_pptp ip_conntrack_pptp]
switch-robo             5036   0 (unused)
switch-core             5984   0 [switch-robo]
root@DD-WRT:~# ls /proc/switch
eth0
root@DD-WRT:~# cat /proc/switch/eth0/vlan/0/ports
0       1       2       5t*
root@DD-WRT:~# cat /proc/switch/eth0/vlan/1/ports
3       4       5t
root@DD-WRT:~# cat /proc/switch/eth0/vlan/2/ports
3
root@DD-WRT:~#

Pictures

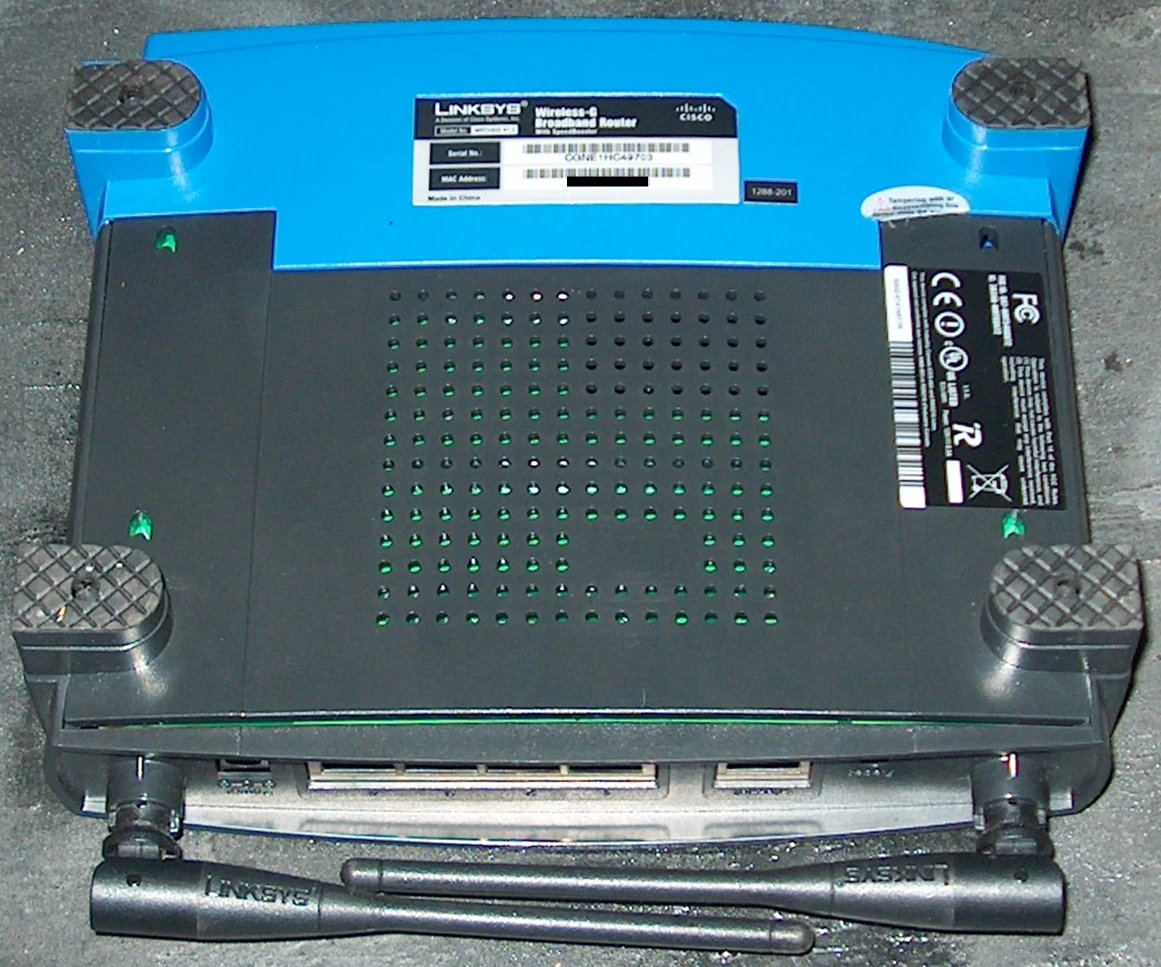

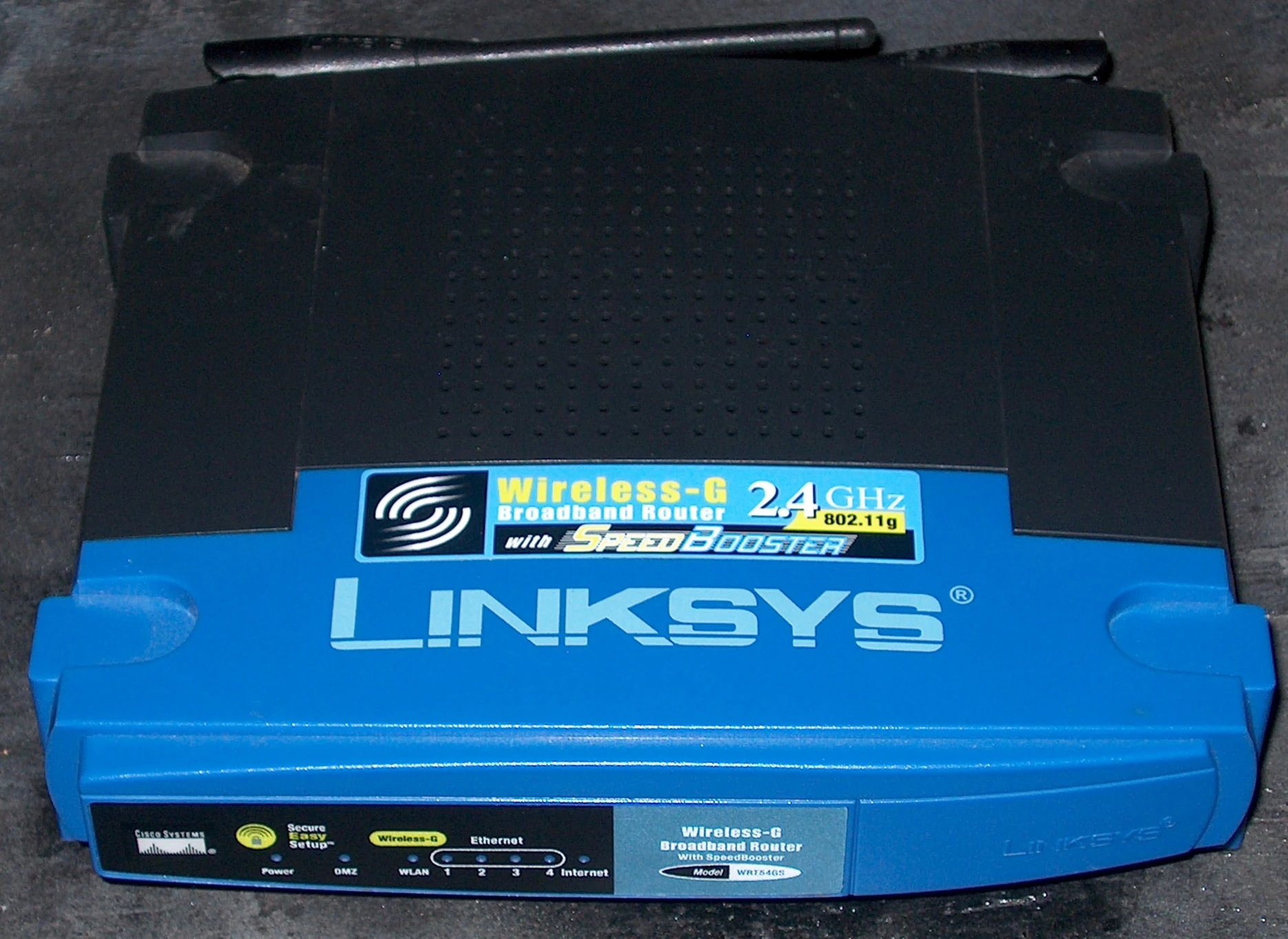

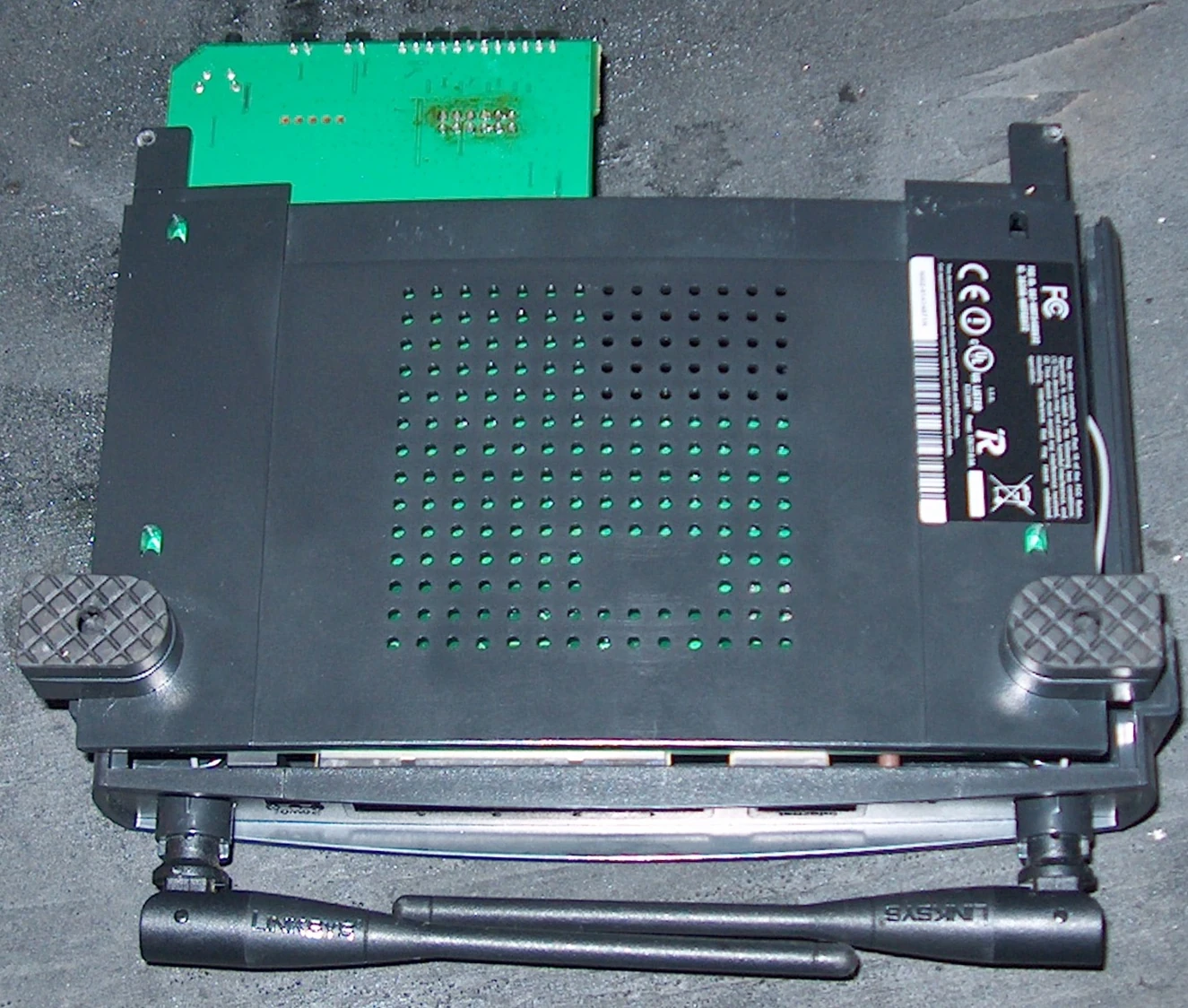

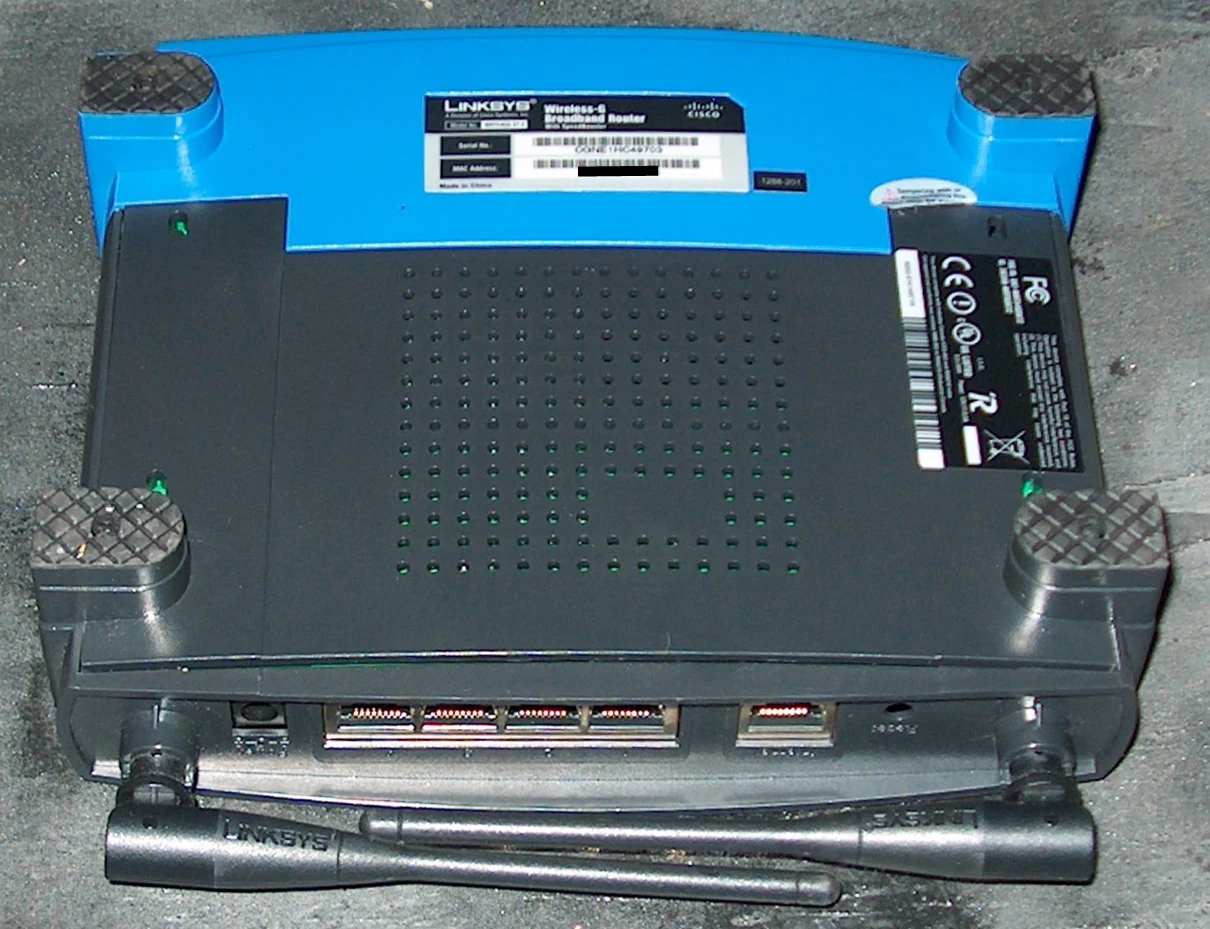

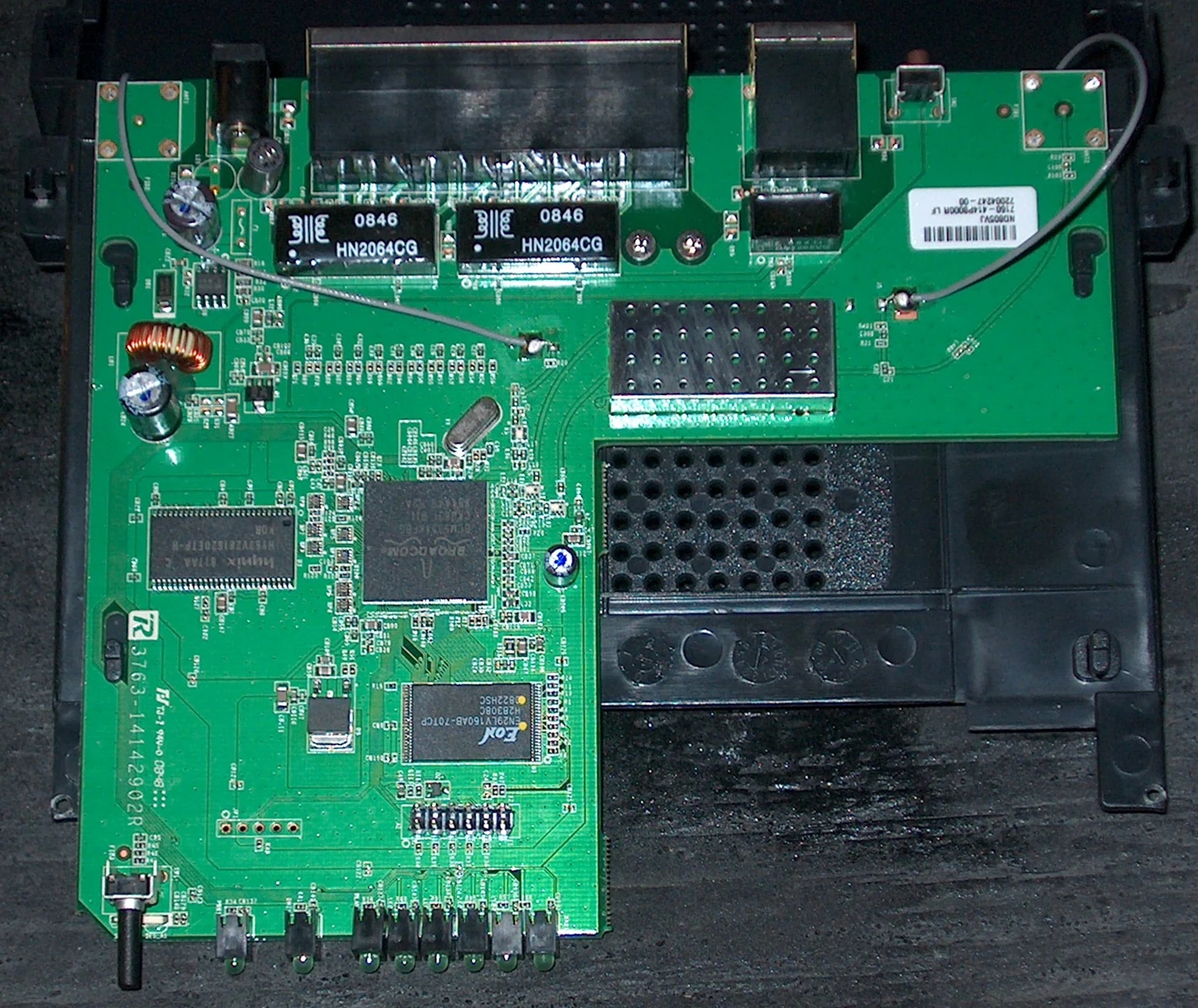

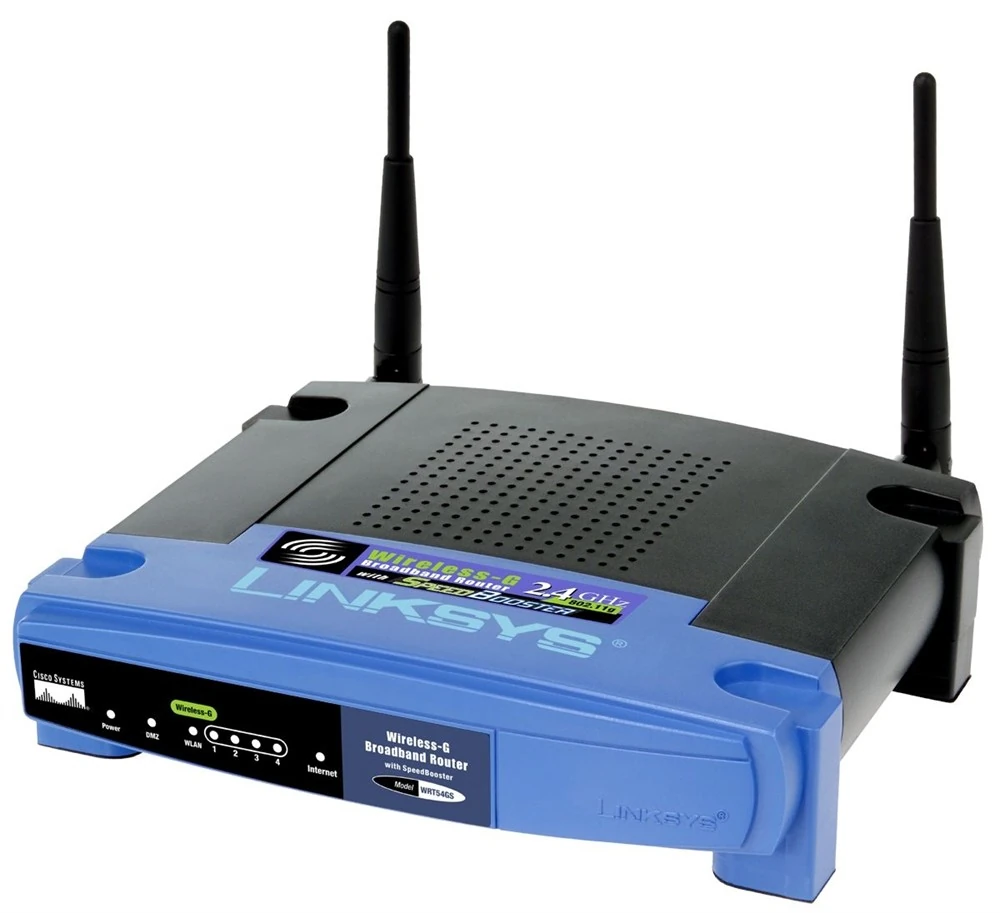

WRT54GS v7 WRT54GS v7 WRT54GS v7

WRT54GS v7 WRT54GS v7

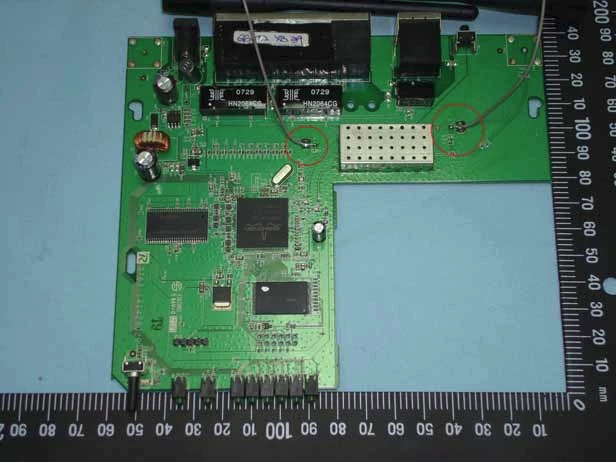

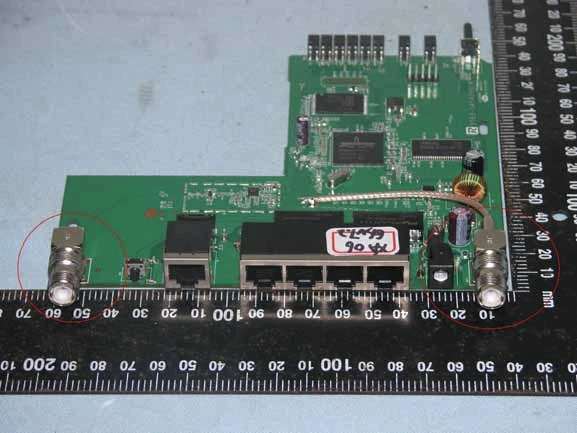

FCC Pictures

Linksys WRT54GS v7 Linksys WRT54GS v7

Notes

Other Notes

[DD-WRT v24 RC3] The WRT54GS v7.0 is now fully supported (if its not an intel chip - see important note below), but requires again a special flashing way, which is easier this time compared to the v5 and v6 vxworks killer.

All Chips are supported, just follow step by step procedure at:

[1]http://www.dd-wrt.com/phpBB2/viewtopic.php?t=27572&highlight=wrt54gs

WARNING: There are at least two types of flash chips that are used on the v7 router. Using this method with an INTEL-type flash chip will brick your router. There is not currently a solution for using vxworkskiller with the intel-chip v7 routers.

flashing.txt

See also the relevant forum post

I just had found this link --> http://blog.rim3y.net/zero/?p=942

This procedure worked easy and great, the 1st bin file I installed with the admin. options in the Linksys control panel (the upload went about half way then tryed to reboot (then bricked my WRT54GS v7), following the procedure from the above mentioned site using this command "tftp -i 192.168.1.1 put dd-wrt.v24_micro_generic.bin" from the location of the bin file, worked fine had to HIT enter 2 times to excecute the command to install the 2nd bin file, now my WRT54GS v7 has so many features I need to find a good post for some tweak settings.
