Your here: Home / Network / Hardware Specific / Cisco-Linksys / WRT54G v2.2

Wireless-G Broadband Router

NOTE: These unit seems to run more stable on the VINT builds.NEWD or VINT
NOTE: Requires K2.4, Do not flash anything else.
NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.

Works well as a main router (gateway), will also work as a client, client bridge, repeater, repeater bridge.

Specs

Platform

Serial Num. = CDF7
FCC ID = Q87-WT54GV22
CPU Type = Broadcom BCM4712LKFB (BCM4712 chip rev 1)
MIPS Rev = ?
CPU Speed = 216MHz
Bus = ?
Flash Type = Parallel
Flash Chip = Intel TE28F320 C3B070 A4407332 (Intel 28F320C3)
Flash Size = 4MB
Max Firmware Size = 3801088 bytes
RAM Size = 16MB
RAM Chip = hynix 431A HY5DU281622ET-J
nvram Size = 32kb
Switch = Broadcom BCM5325EKQM
Port-based vlan = Yes - Via GUI & nvram
802.1q vlan = ?
Ethernet Port Count = 1-10/100-WAN 4-10/100-LAN
Wired Standard = IEEE 802.3/3u
boot_wait = ?
bootloader = CFE
Flash Card Socket/Type = No
SD/MMC Mod Support = ?
MiniPCI slots = No
PoE = No
Power = 12V/1A
Color of LEDs = ?
Size = 7.32" x 1.89" x 6.06"
USB = No
Serial Port = 2x
JTAG Port = Yes
Supported by TJTAG/Version = Yes/3.02
Supported by dd-wrt as of = ?
dd-wrt K2.4 Support = Yes
dd-wrt K2.6 Support = No
Special Features = ?

Radio (wl0)

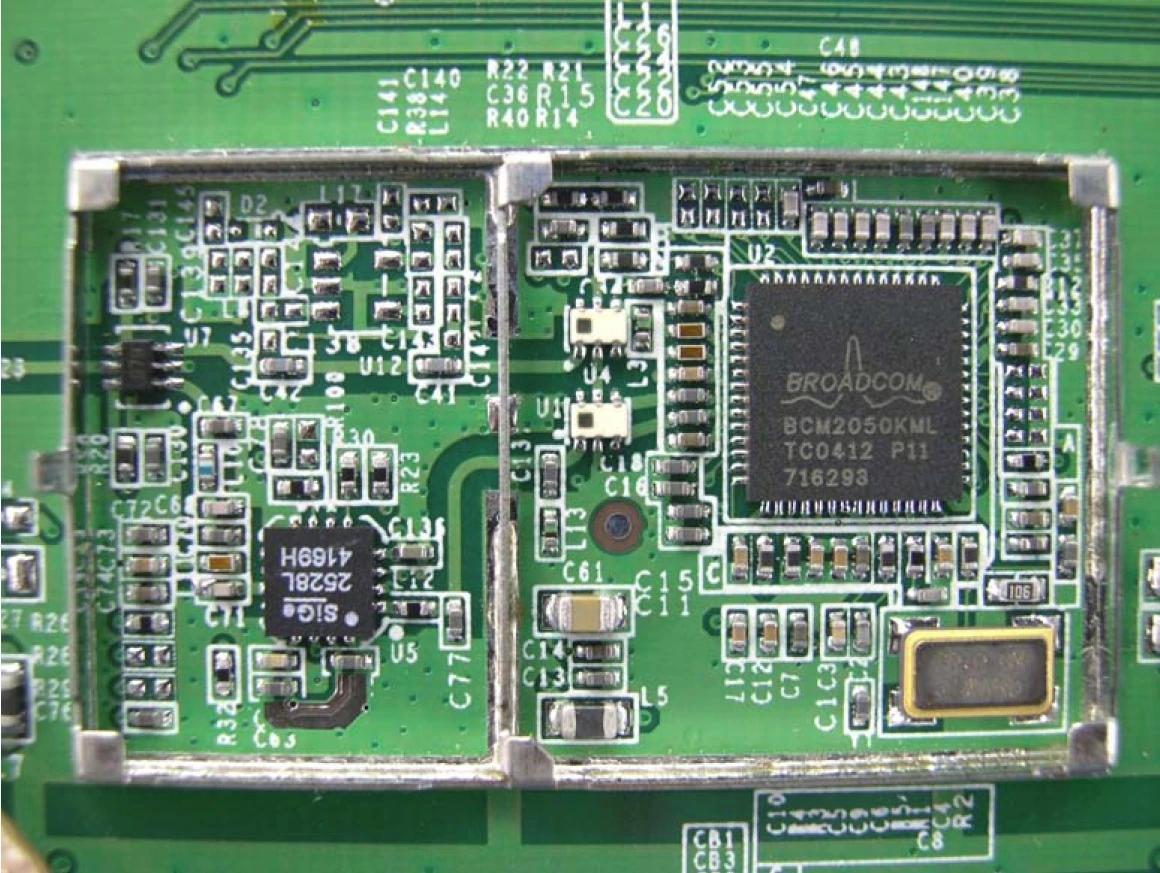

Wireless Radio = Broadcom BCM2050KML
WLAN DSP processor = Broadcom BCM4712LKFB HA0443 P11 731121 N
Antenna Connector Type = RP-TNC External Removable
Wireless Standard = IEEE 802.11b/g
WiFi Operating Frequency = 2.4 GHz
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = 7
Radio Capabilities = ap sta wet led wme pio 802.11d 802.11h rm cqa
                     afterburner

Links of Interest

Flashing

  1. Read the peacock announcement found here: http://www.dd-wrt.com/phpBB2/viewtopic.php?t=51486
  2. Do a Hard reset or 30/30/30 on the router according to note 1 of the peacock announcement (30/30/30)
  3. Set a static IP on your computer to 192.168.1.7. Subnet mask should be 255.255.255.0.
  4. Connect the lan cable from your computer to a LAN port of your router. Make sure your router is plugged in. Nothing should be connected to your computer or the router except the lan cable between them. Turn your firewall and any wireless computer connections OFF.
  5. Power cycle the router (uplug the power from the router for 30 seconds and then plug it back in)
  6. Open your browser to 192.168.1.1 by putting that in the browser address window of your browser. You should open the linksys webgui and NOT a page that says Management Mode. If you see management mode, power cycle the router again.
  7. Leave the username blank and enter "admin" as the password
  8. Go to administration and firmware upgrade
  9. Navigate to the folder that you are using, and select dd-wrt.v24-15230_VINT_mini.bin
  10. Hit upgrade
  11. When you get a success, wait FIVE FULL minutes.
  12. If you don't get success, repeat from steps 6 up to this one. If you still don't get success, clear your browser cache. Try using a different browser as well, to navigate to 192.168.1.1.
  13. When you can access the dd-wrt webgui using a browser at 192.168.1.1, power cycle the router.
  14. When you can again access the dd-wrt webgui using a browser at 192.168.1.1, do another Hard reset or 30/30/30 on the router.
  15. At this point you can choose to put a different build on, depending on what you needs are.
  16. Reset your computer ethernet connection to auto IP and auto DNS
  17. Check for recommended builds here.

Upgrading

If dd-wrt is already on the router follow these instructions. If stock firmware is on the router follow the flashing instructions.

  1. Check for recommended builds here first.
  2. Set your computer to a static IP of 192.168.1.7. (or to whatever subnet the router is on) Disable all firewalls and security. Disable wireless on your computer and only have the router connected to the flashing computer by the ethernet cable between the two.
  3. Hard reset or 30/30/30 (If the router supports it, if not, reset to defults in the GUI) prior to flashing. Wait. Check for password page on re-login and change password.
  4. Flash firmware. You can use the webgui except if you have a belkin router. (For belkin use tftp.exe to flash)
  5. Wait...at least three minutes. Lights should return to normal. See important2, below. Failing to wait is how most people brick their routers.
  6. Do a power cycle of the router. (Unplug the cord, count to 30 and plug it back in.)
  7. Wait for the lights to return to normal usually about 2 minutes.
  8. Hard reset or 30/30/30 again (If the router supports it, if not, reset to defults in the GUI). Wait. Check for the password page and re-login to change the password. Then you can reconfigure your settings manually.
  9. Once configured set your computer back to autoIP and autoDNS.

Important1: This Hard reset or 30/30/30 works fine for Asus router, but you do have to power cycle after the reset.

Important2: After you flash the firmware, and before you do the hard reset, the router will be building some nvram settings. YOU MUST WAIT FOR THIS TO FINISH PRIOR TO DOING ANYTHING WITH THE ROUTER INCLUDING A HARD RESET. Usually, you can tell when this process is completed by the WAN light coming on, but it does take several minutes. Go have a beer. There are starting to be more and more people who BRICK their routers by not waiting until the nvram is rebuilt, PRIOR to doing a hard reset. YOU NEED TO WAIT!

Reverting

  1. Read the peacock announcement found here: http://www.dd-wrt.com/phpBB2/viewtopic.php?t=51486
  2. Do a Hard reset or 30/30/30 on the router according to note 1 of the peacock announcement (30/30/30)
  3. Set a static IP on your computer to 192.168.1.7. Subnet mask should be 255.255.255.0.
  4. Connect the lan cable from your computer to a LAN port of your router. Make sure your router is plugged in. Nothing should be connected to your computer or the router except the lan cable between them. Turn your firewall and any wireless computer connections OFF.
  5. Power cycle the router (uplug the power from the router for 30 seconds and then plug it back in)
  6. Open your browser to 192.168.1.1 by putting that in the browser address window of your browser. You should open the linksys webgui and NOT a page that says Management Mode. If you see management mode, power cycle the router again.
  7. Enter your username and password
  8. Go to administration and firmware upgrade
  9. Navigate to the folder that you are using, and select WRT54G_v4.21.1_fw.bin once you've unzipped it.
  10. Hit upgrade
  11. When you get a success, wait FIVE FULL minutes.
  12. When you can again access the Linksys webgui using a browser at 192.168.1.1, do another Hard reset or 30/30/30 on the router.
  13. Reset your computer ethernet connection to auto IP and auto DNS

JTAG/Serial Info

JTAG

JTAG Pinouts
nTRST   1o o2	GND
  TDI   3o o4	GND
  TDO   5o o6	GND
  TMS   7o o8	GND
  TCK   9o o10	GND
nSRST  11o o12  N/C

Using Universal JTAG Adapter

white    1o o2	 black
  red    3o o4	 GND
 blue    5o o6	 GND
green    7o o8	 GND
yelow    9o o10  GND
orange  11o o12  N/C
JTAG Recovery
  • /noemw switch required for backup & flash
  • /noemw /nocwd switches required for erase
  1. Backup CFE x2 (Compare the files, they must match exactly or there is something wrong with your JTAG setup)
  2. Erase Wholeflash x2
  3. Flash CFE
  4. Unplug Power
  5. Unplug JTAG Cable

TFTP:

  1. Set Rig ip static 192.168.1.10
  2. Plug network cable from rig to port 1
  3. Get TFTP ready, server ip - 192.168.1.1, Password - blank, file - dd-wrt.v24_mini_generic.bin
  4. Plug in power
  5. As soon as windows says "connected" hit upgrade. May have to use a network hub to make sure windows is always connected.
  6. Hard Reset 30\30\30

Serial

Serial Pinouts
VCC  1 o o 2  VCC
TX1  3 o o 4  TX0
RX1  5 o o 6  RX0
N/C  7 o o 8  N/C
GND  9 o o 10 GND
Hyper terminal Setup in Windows XP
In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 115200
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.
Putty Setup in Windows XP
After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 115200
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open
Serial Recovery

Modified Redhawk0 instructions

  1. Connect Serial cable
  2. Start one of the programs from above
  3. Get TFTP ready with file selected
  4. Use dd-wrt.v24_mini_wrt54g.bin
  5. Connect power to the router
  6. start a rapid fire Cntl-C as you plug the router to power
  7. type "nvram erase" w/o quotes, hit enter
  8. type "flash -noheader : flash1.trx" w/o quotes, this starts the tftp daemon, hit enter
  9. but have tftp.exe ready
  10. Click go or start on TFTP
  11. give it 5 minutes after it finishes
  12. then power cycle....hard reset...then config
  13. when it stops spitting out txt in the serial consol....hit the enter key...you should get a login prompt...at that point, power cycle it, Hard reset or 30/30/30...then config
  14. you'll see it boot up

vlan Info

Confirmed the WRT54G v2.2 supports port-based vlans via the GUI & nvram.

"/proc/switch/eth0" does exist

WRT54G v2.2's ports are mapped like this:

4 3 2 1 | case labels
3 2 1 0 | nvram port numbers

Defaults

root@DD-WRT:~# nvram show | grep vlan.ports
vlan0ports=3 2 1 0 5*
vlan1ports=4 5
size: 19306 bytes (13462 left)
root@DD-WRT:~# nvram show | grep port.vlans
port5vlans=0 1 16
port4vlans=0
port3vlans=0
port2vlans=0
port1vlans=0
port0vlans=1
size: 19306 bytes (13462 left)
root@DD-WRT:~# nvram show | grep vlan.hwname
vlan1hwname=et0
vlan0hwname=et0
size: 19306 bytes (13462 left)

GUI

Port 4 moved to WAN's vlan

root@DD-WRT:~# nvram show | grep vlan.ports
vlan0ports=3 2 1 0 5*
vlan1ports=4 5
size: 19478 bytes (13290 left)
root@DD-WRT:~# nvram show | grep port.vlans
port5vlans=0 1 16
port4vlans=1 18 19
port3vlans=0 18 19
port2vlans=0 18 19
port1vlans=0 18 19
port0vlans=1 18 19
size: 19478 bytes (13290 left)
root@DD-WRT:~# nvram show | grep vlan.hwname
vlan1hwname=et0
vlan0hwname=et0
size: 19478 bytes (13290 left)
root@DD-WRT:~#

nvram

Port 4 moved to WAN's vlan

root@DD-WRT:~# nvram show | grep vlan.ports
vlan0ports=2 1 0 5*
vlan1ports=3 4 5
size: 19420 bytes (13348 left)
root@DD-WRT:~# nvram show | grep port.vlans
port5vlans=0 1 16
port4vlans=0
port3vlans=0
port2vlans=0
port1vlans=0
port0vlans=1
size: 19420 bytes (13348 left)
root@DD-WRT:~# nvram show | grep vlan.hwname
vlan1hwname=et0
vlan0hwname=et0
size: 19420 bytes (13348 left)
root@DD-WRT:~# lsmod
Module                  Size  Used by
ip_nat_pptp             2560   0 (unused)
ip_conntrack_pptp       3036   1
ip_nat_proto_gre        1664   0 (unused)
ip_conntrack_proto_gre    2584   0 [ip_nat_pptp ip_conntrack_pptp]
etherip                 5104   0 (unused)
switch-robo             5356   0 (unused)
switch-core             6352   0 [switch-robo]
root@DD-WRT:~# ls /proc/switch
eth0
root@DD-WRT:~# cat /proc/switch/eth0/vlan/0/ports
0       1       2       5t*
root@DD-WRT:~# cat /proc/switch/eth0/vlan/1/ports
3       4       5t
root@DD-WRT:~# cat /proc/switch/eth0/vlan/2/ports
3
root@DD-WRT:~# nvram show | grep vlan.ports
vlan0ports=2 1 0 5*
vlan1ports=3 4 5
size: 19560 bytes (13208 left)
root@DD-WRT:~#

Pictures

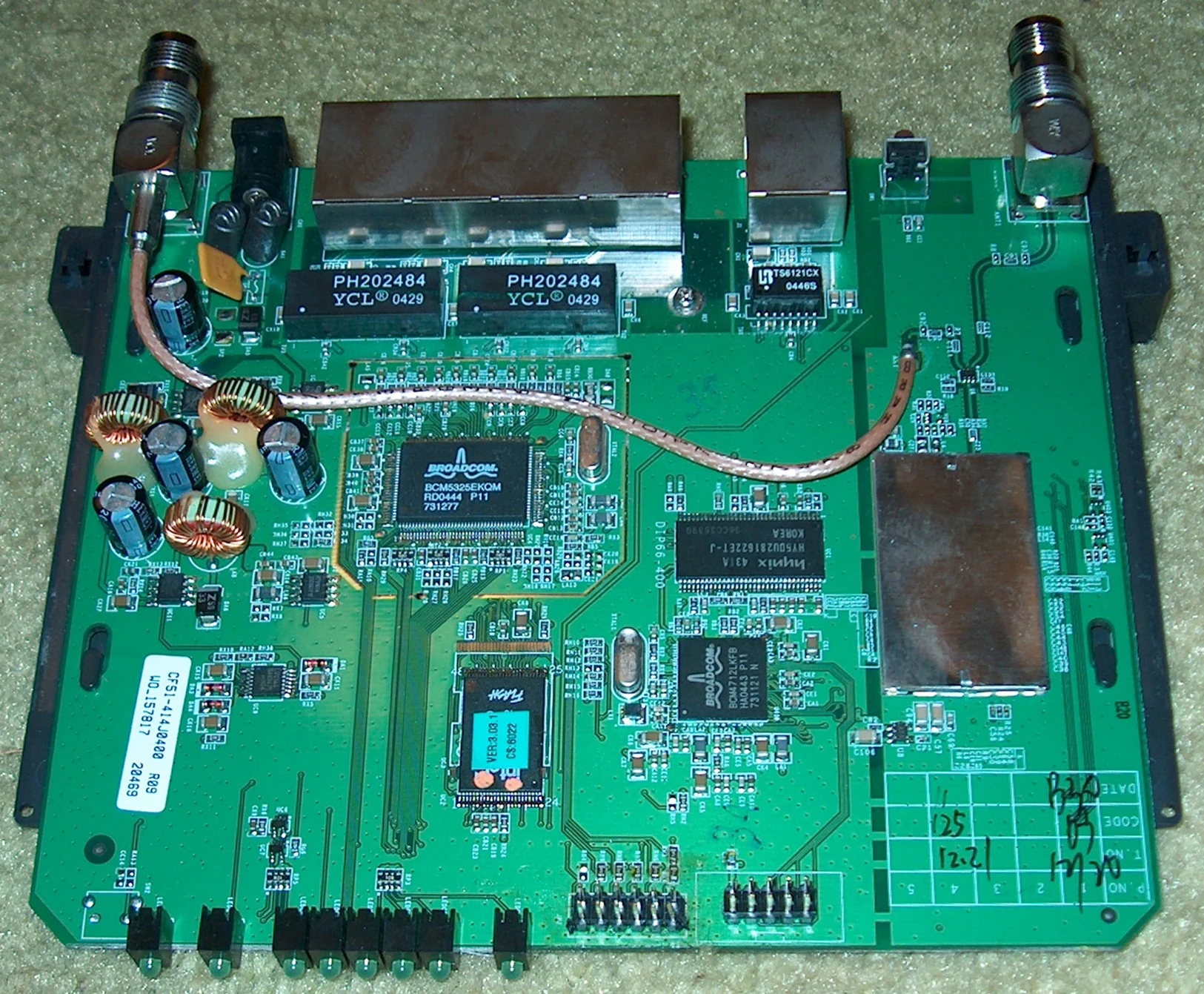

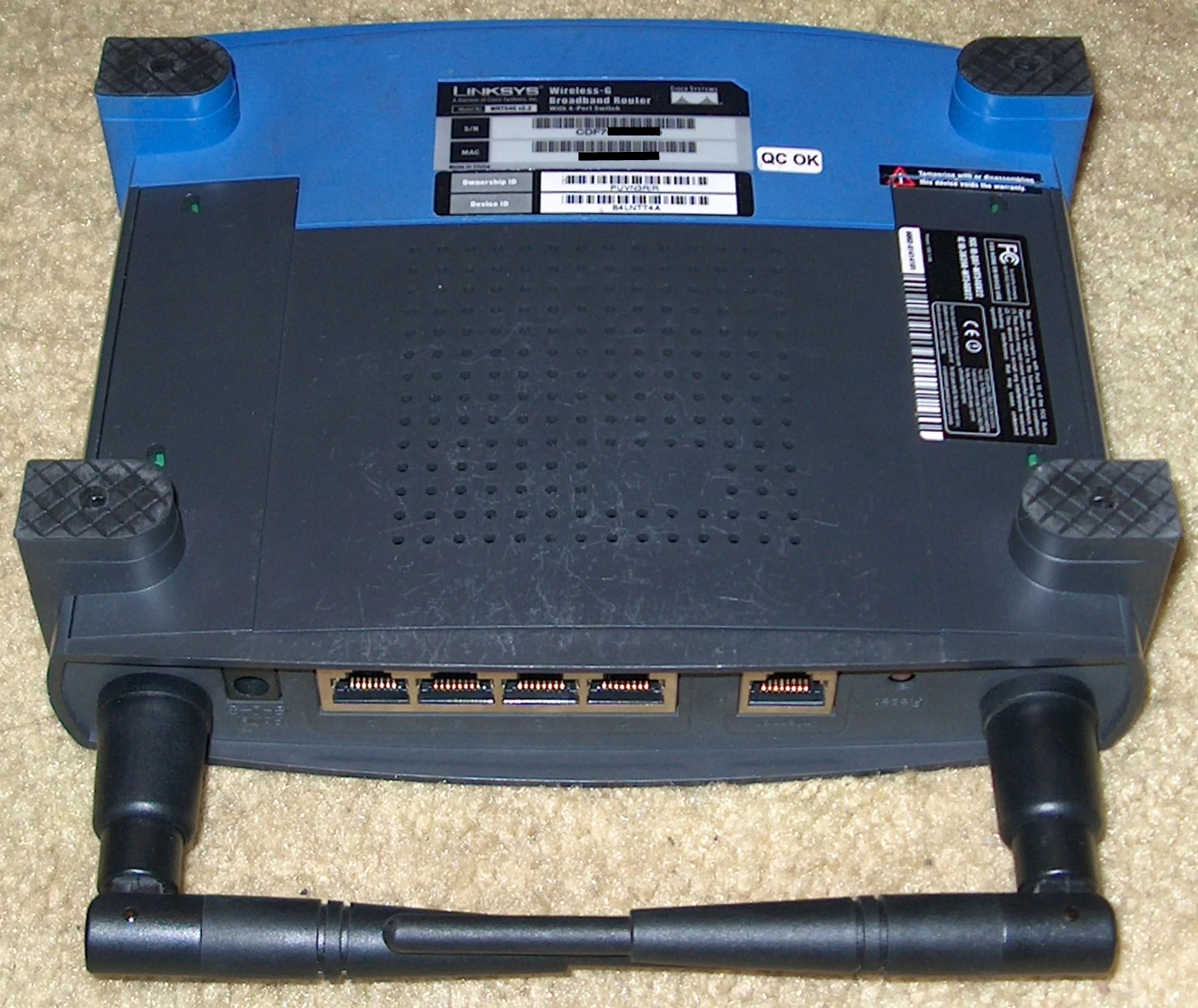

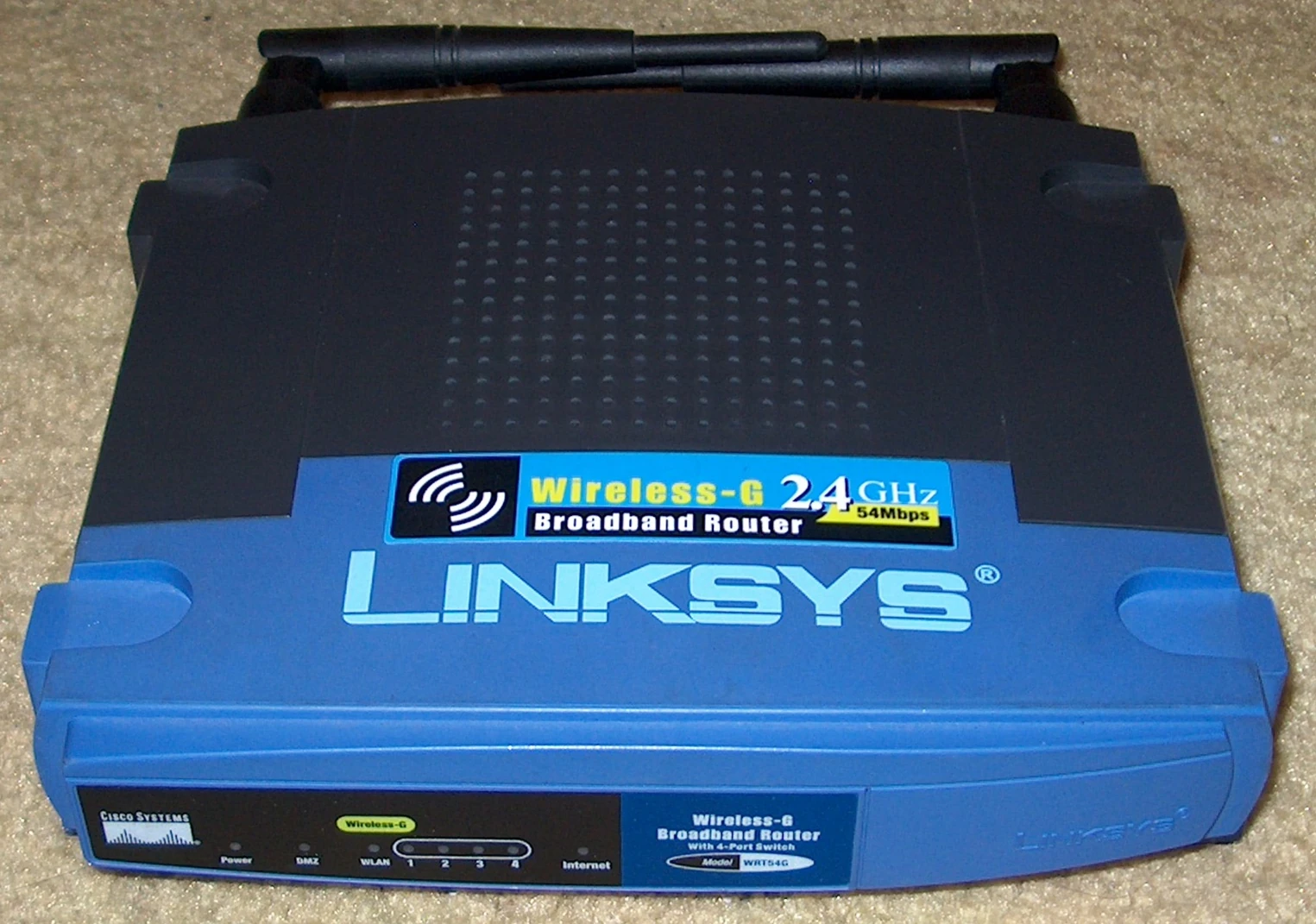

WRT54G v2 WRT54G v2 WRT54G v2

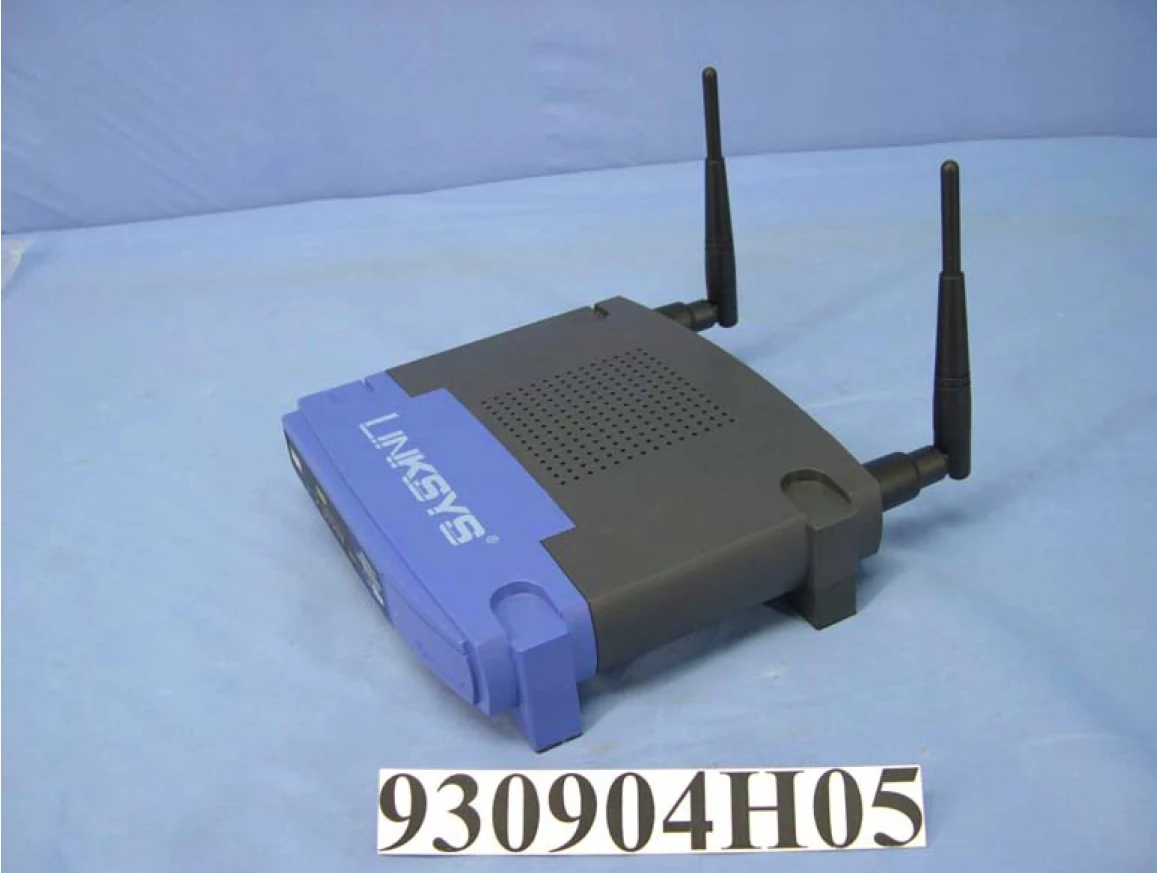

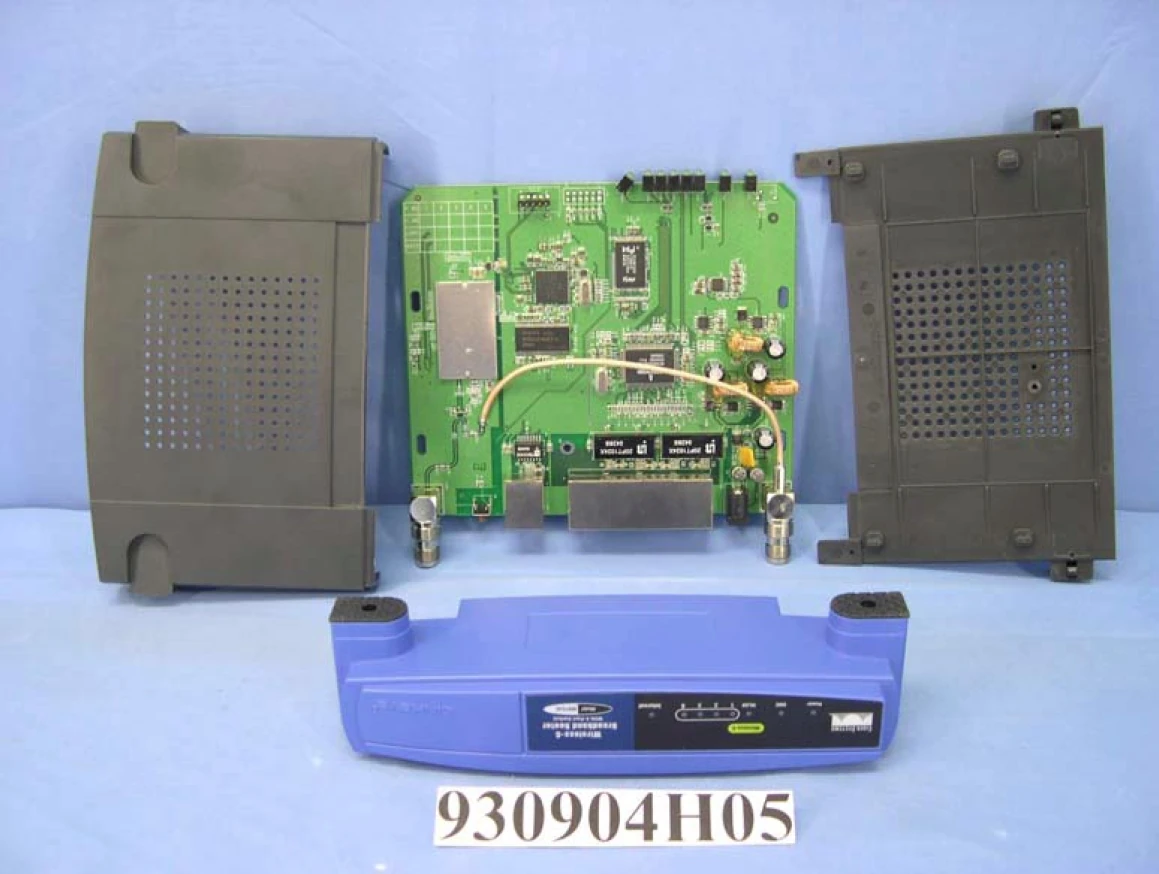

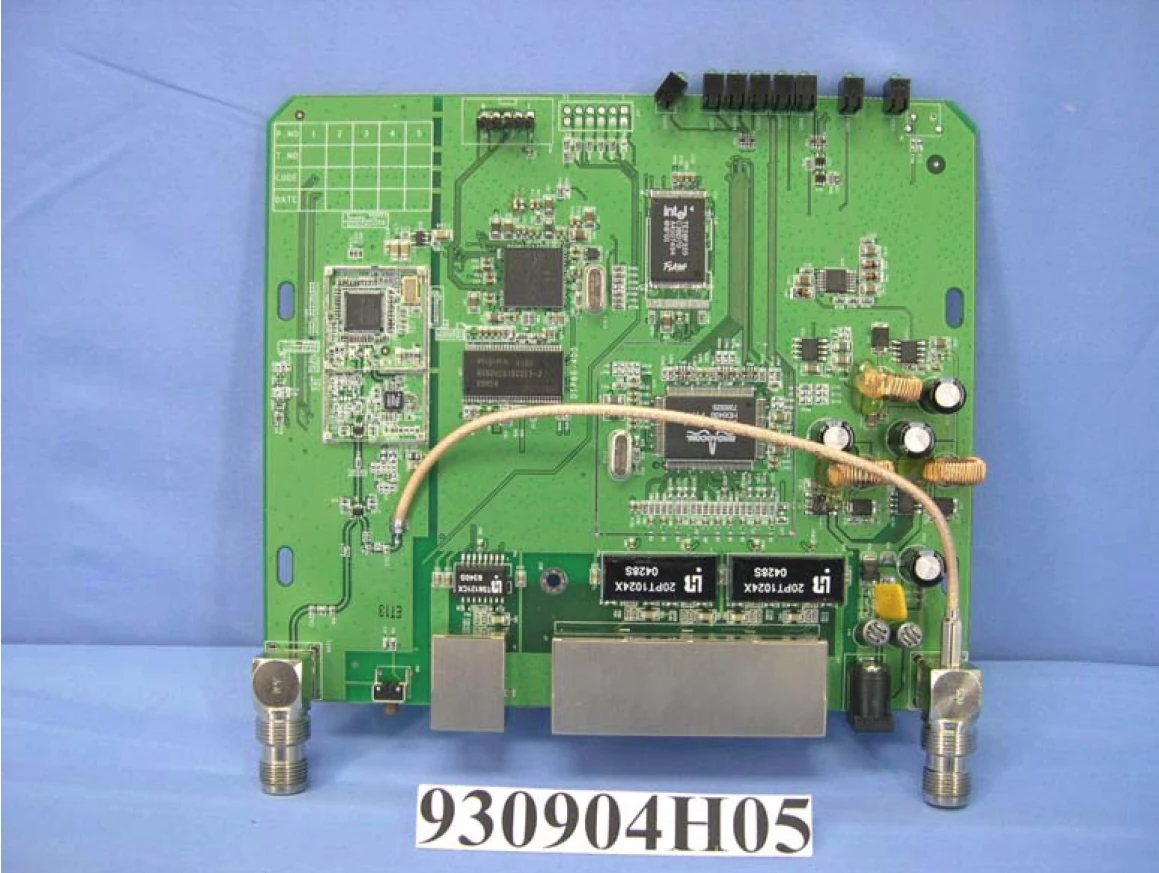

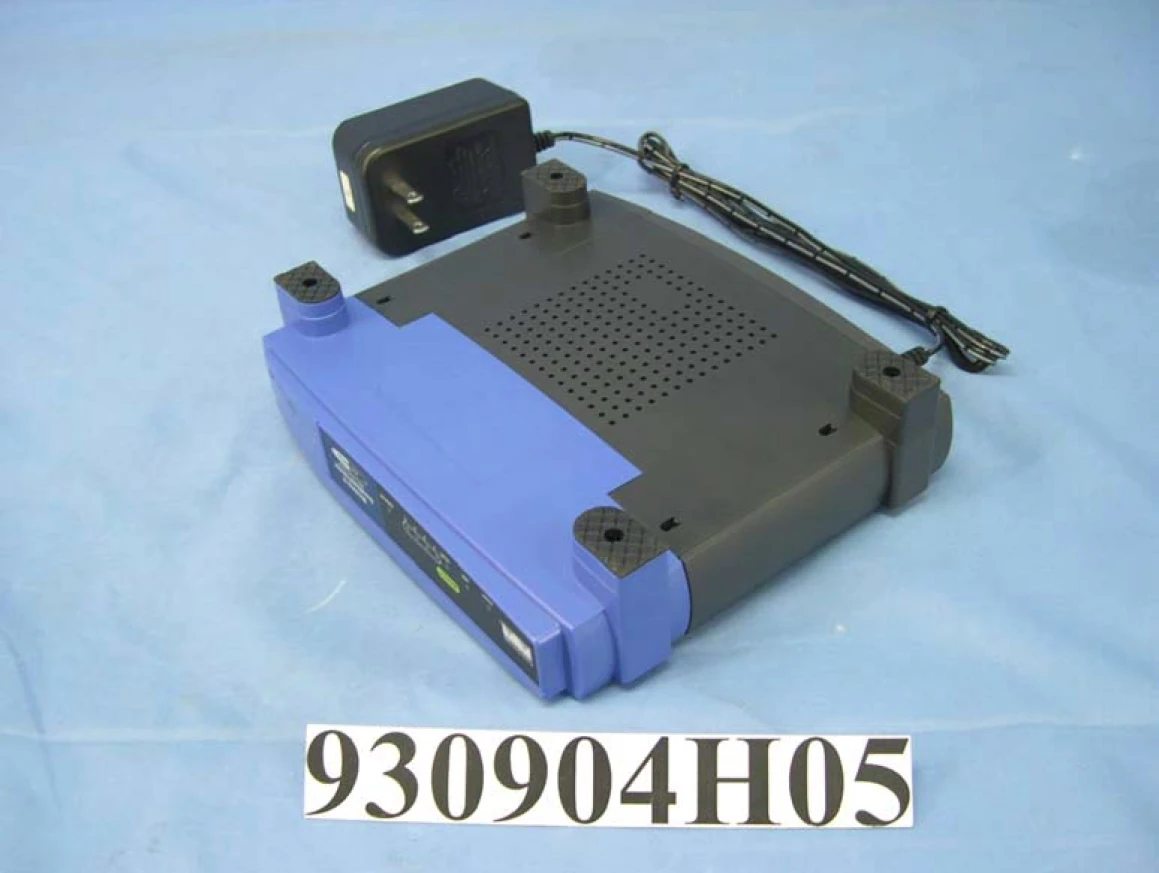

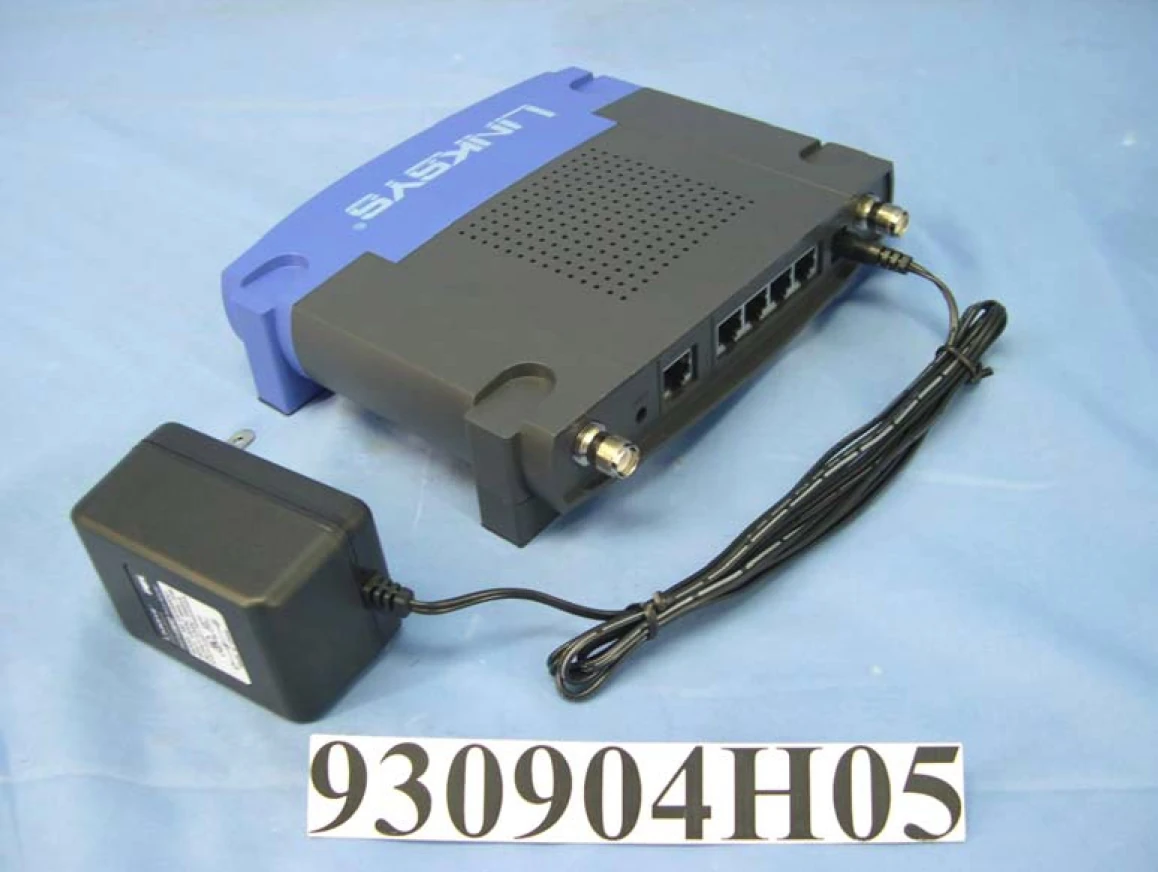

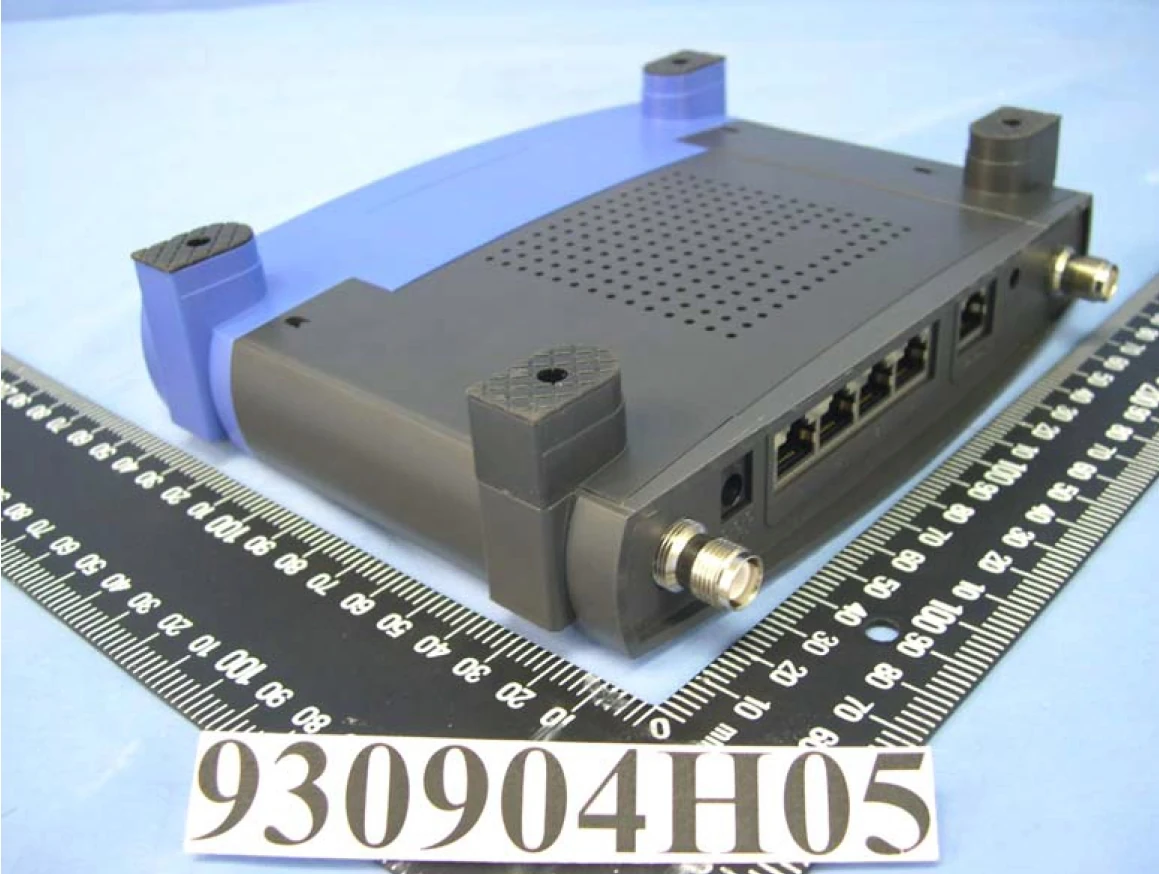

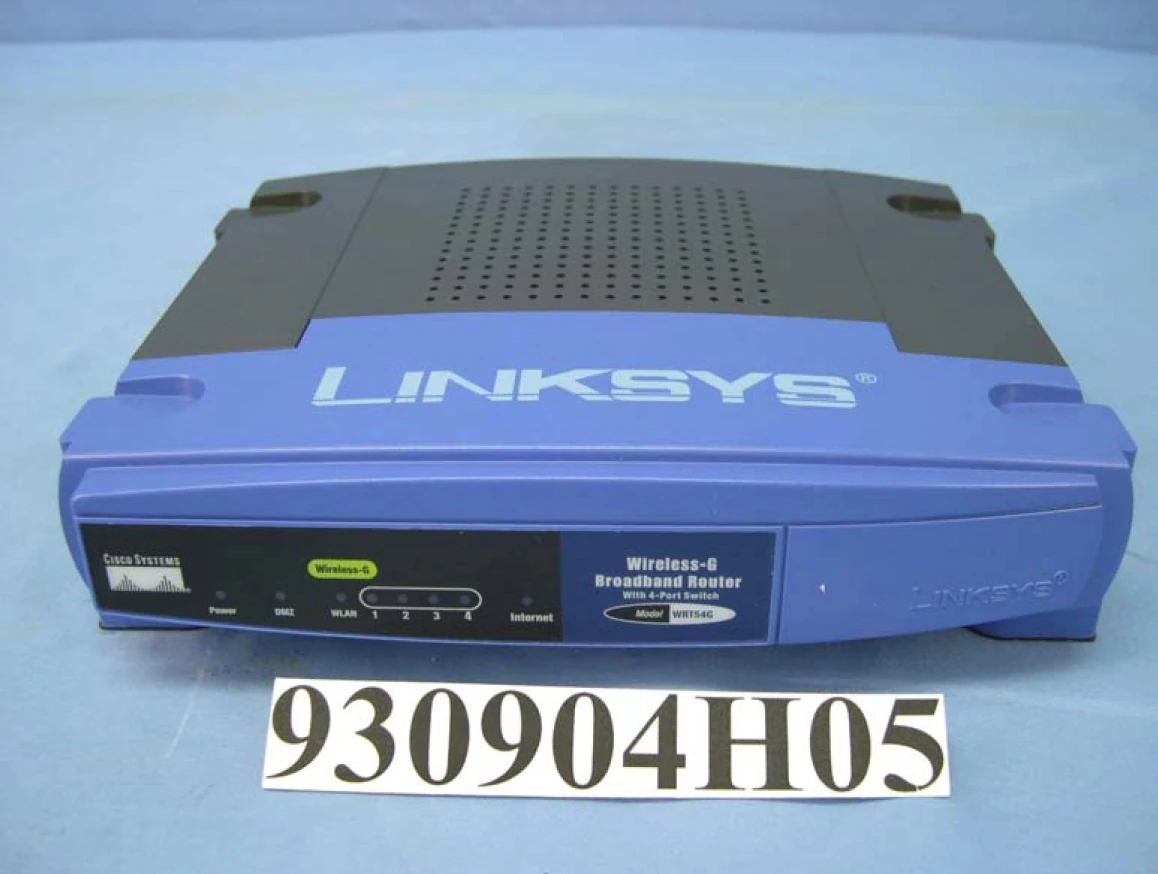

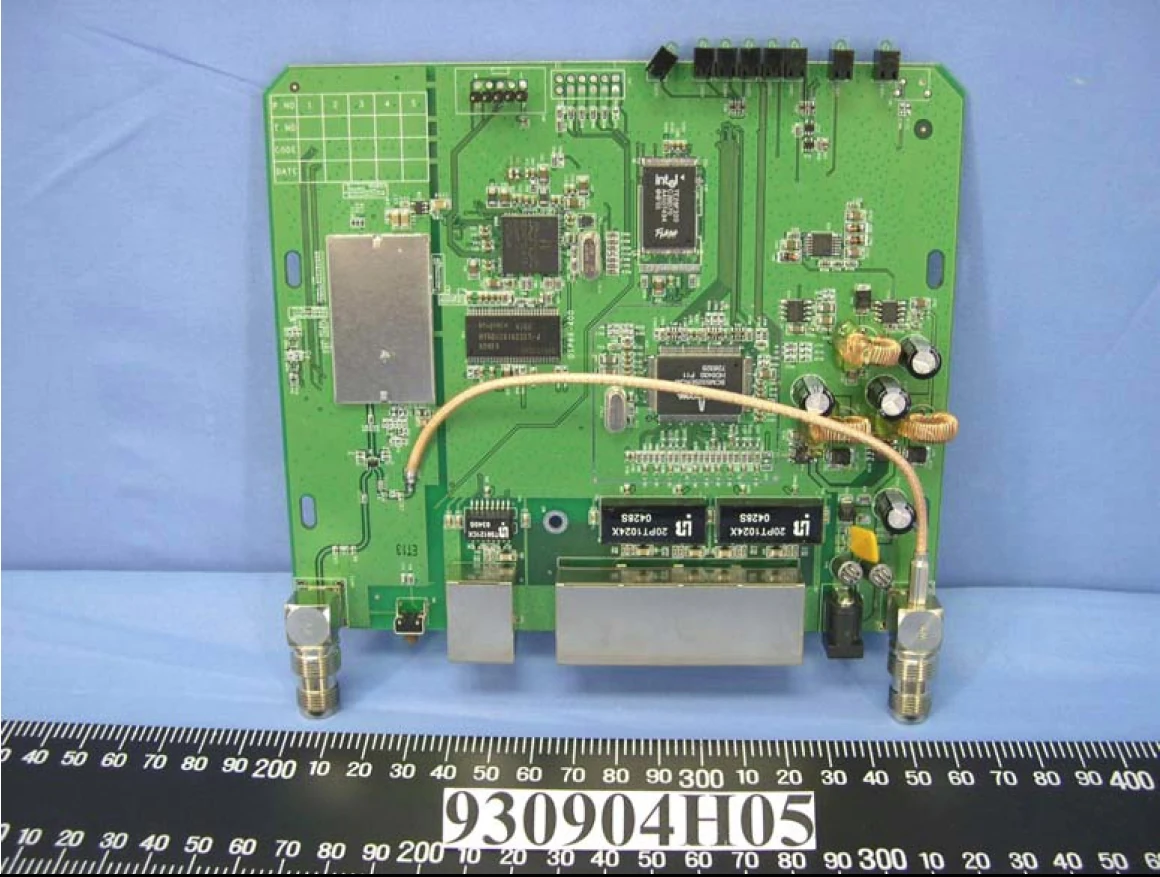

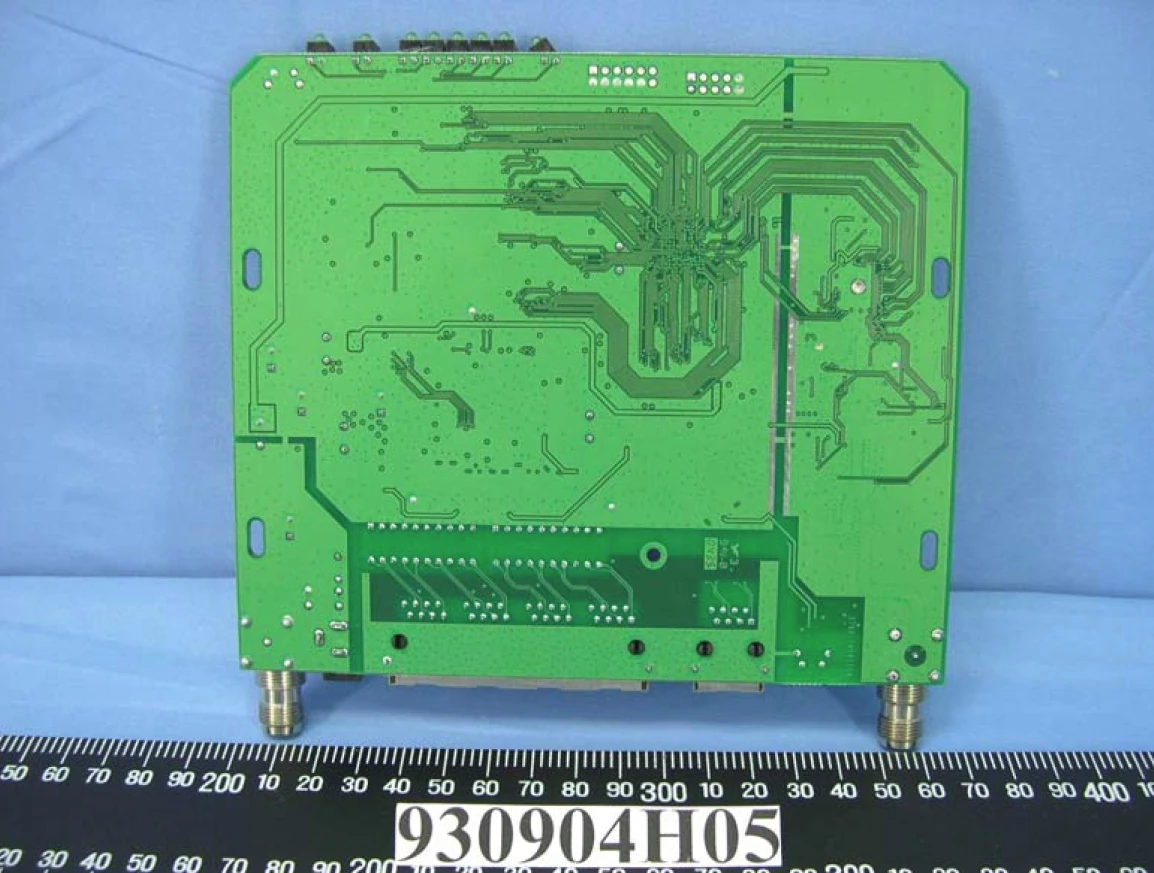

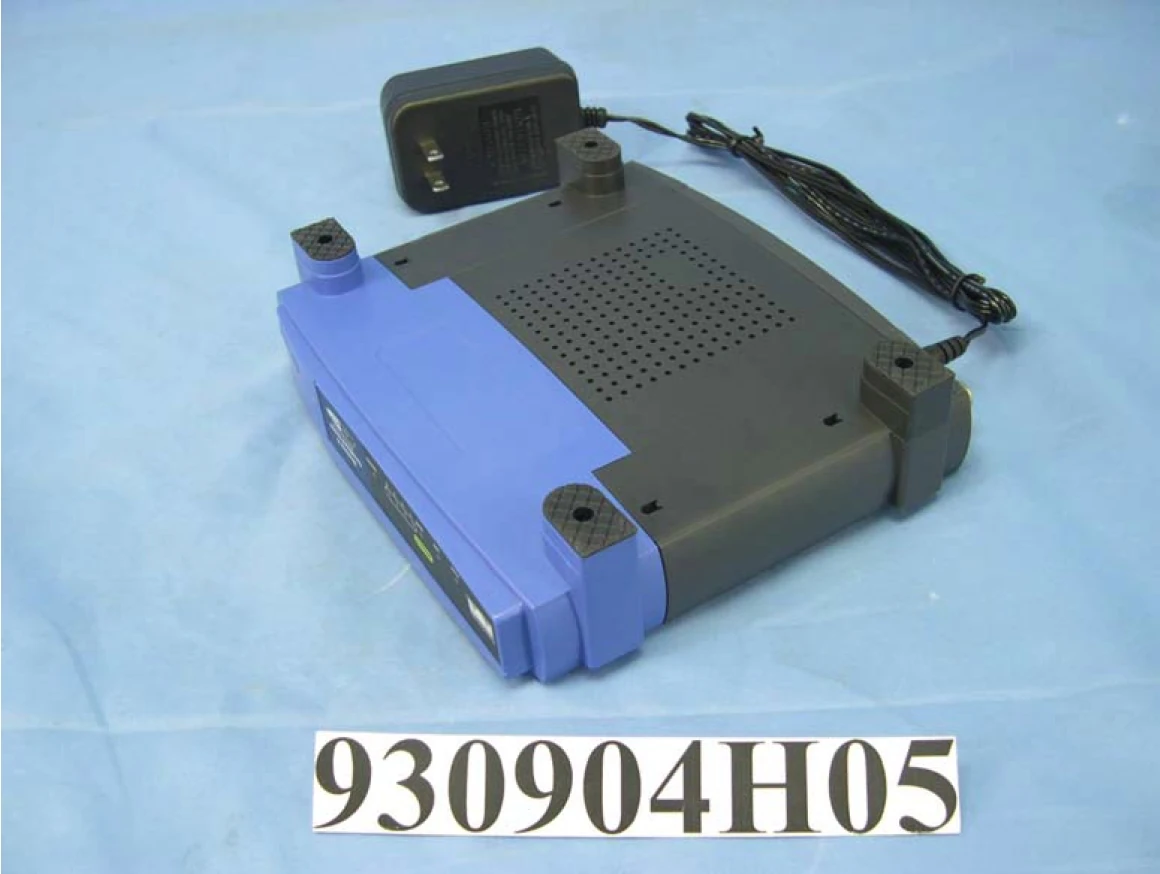

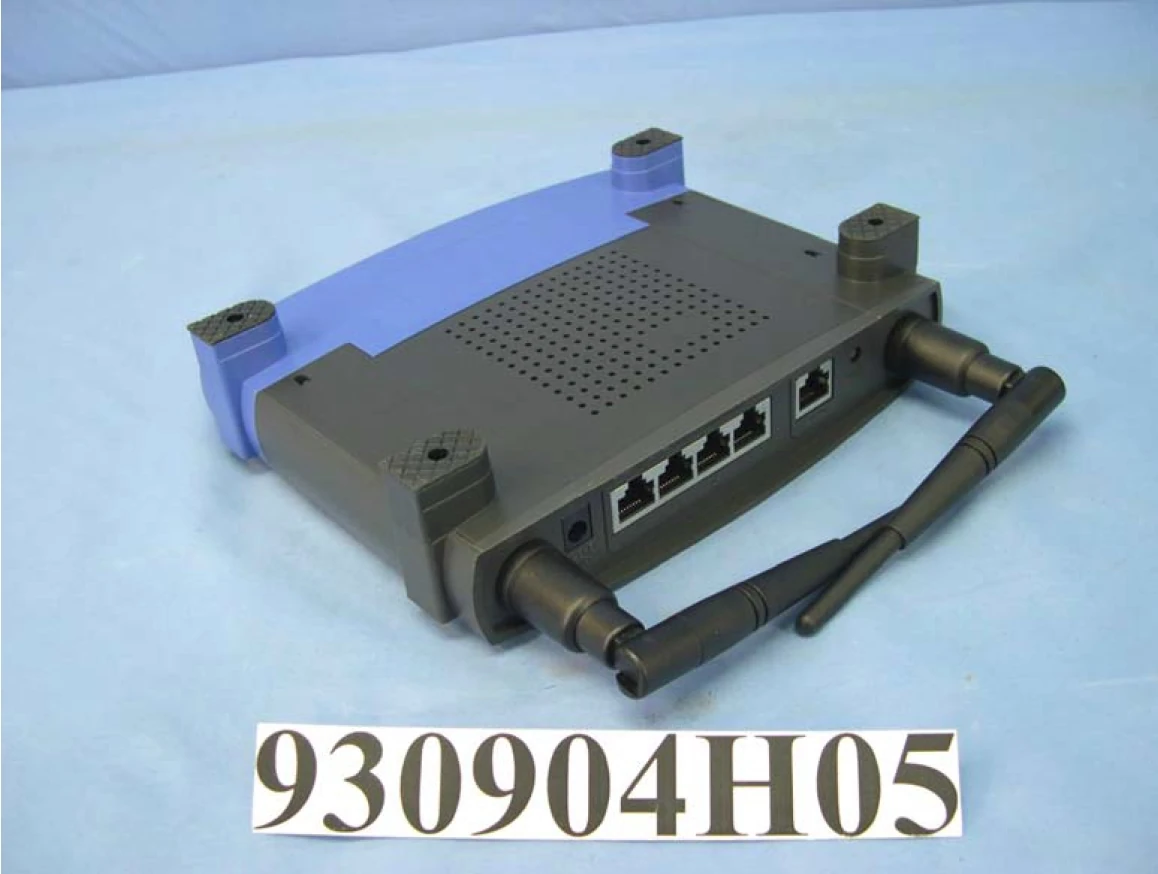

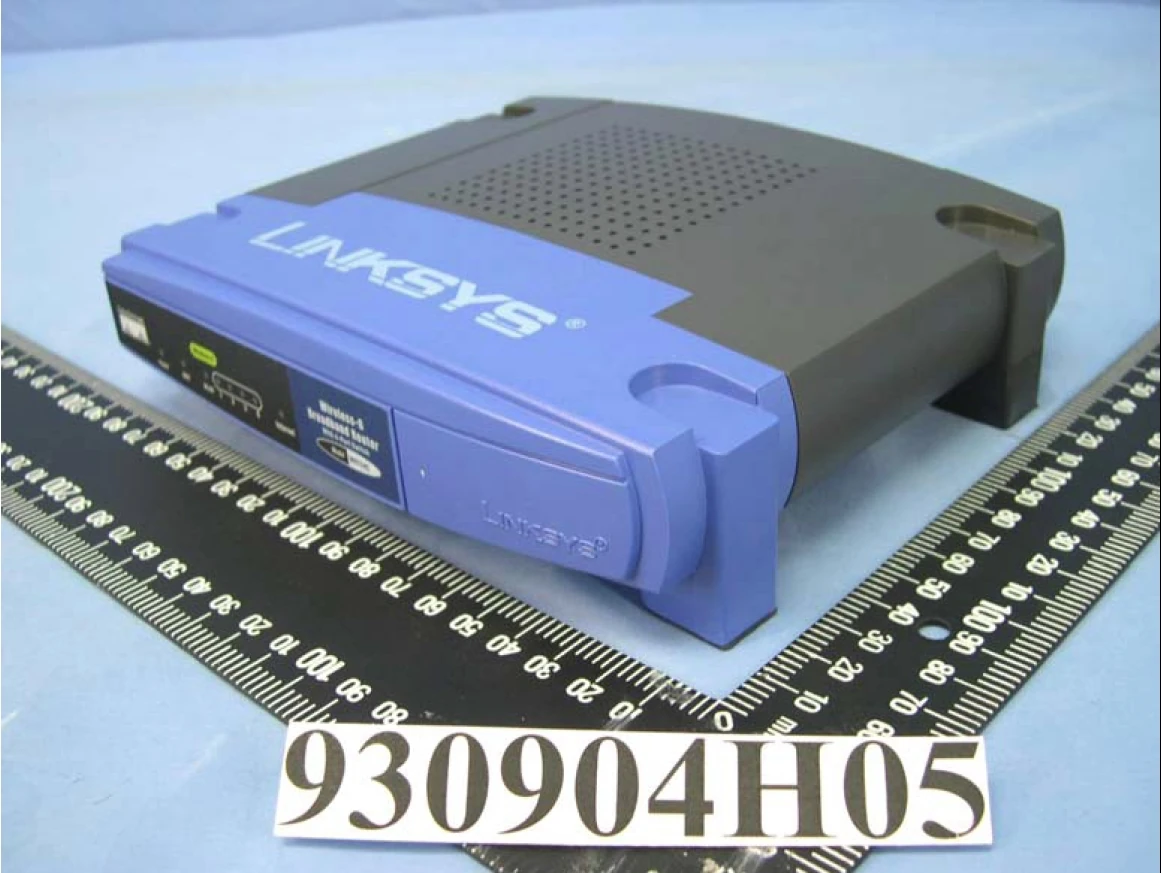

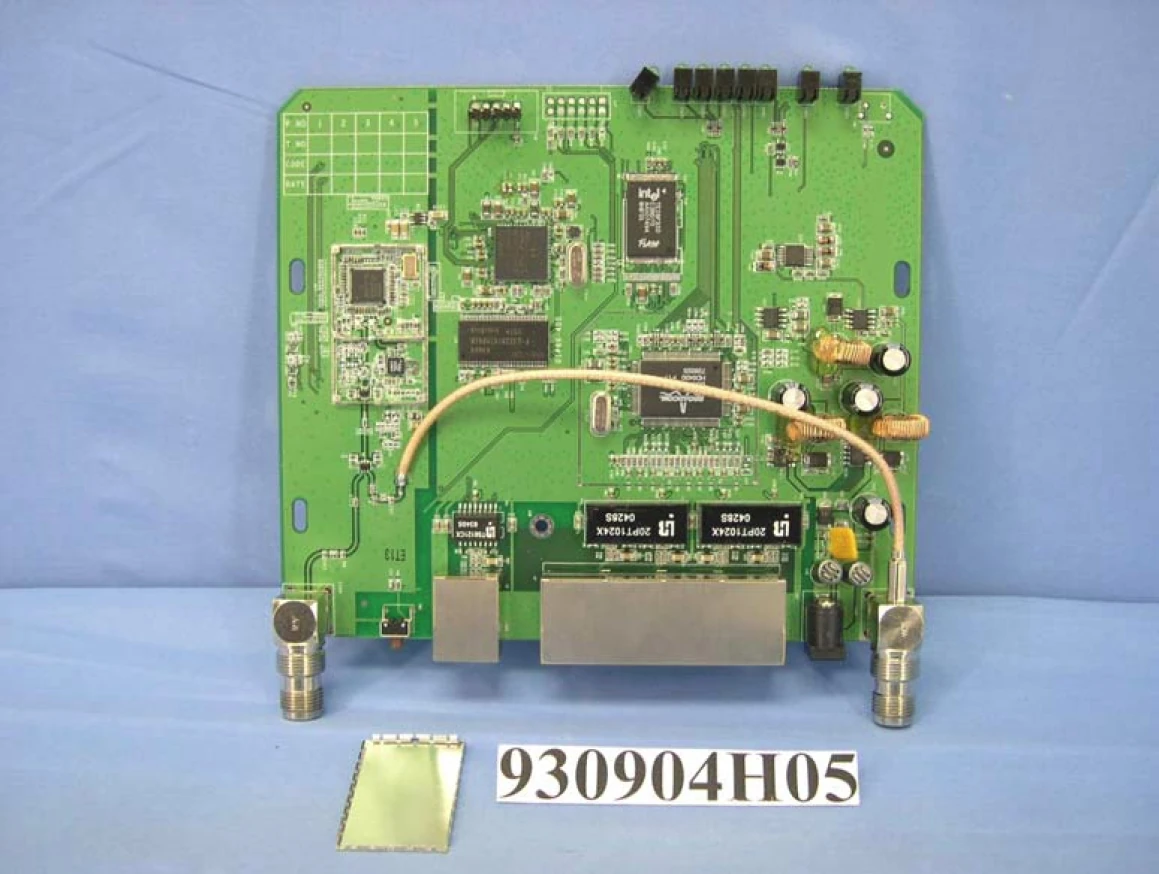

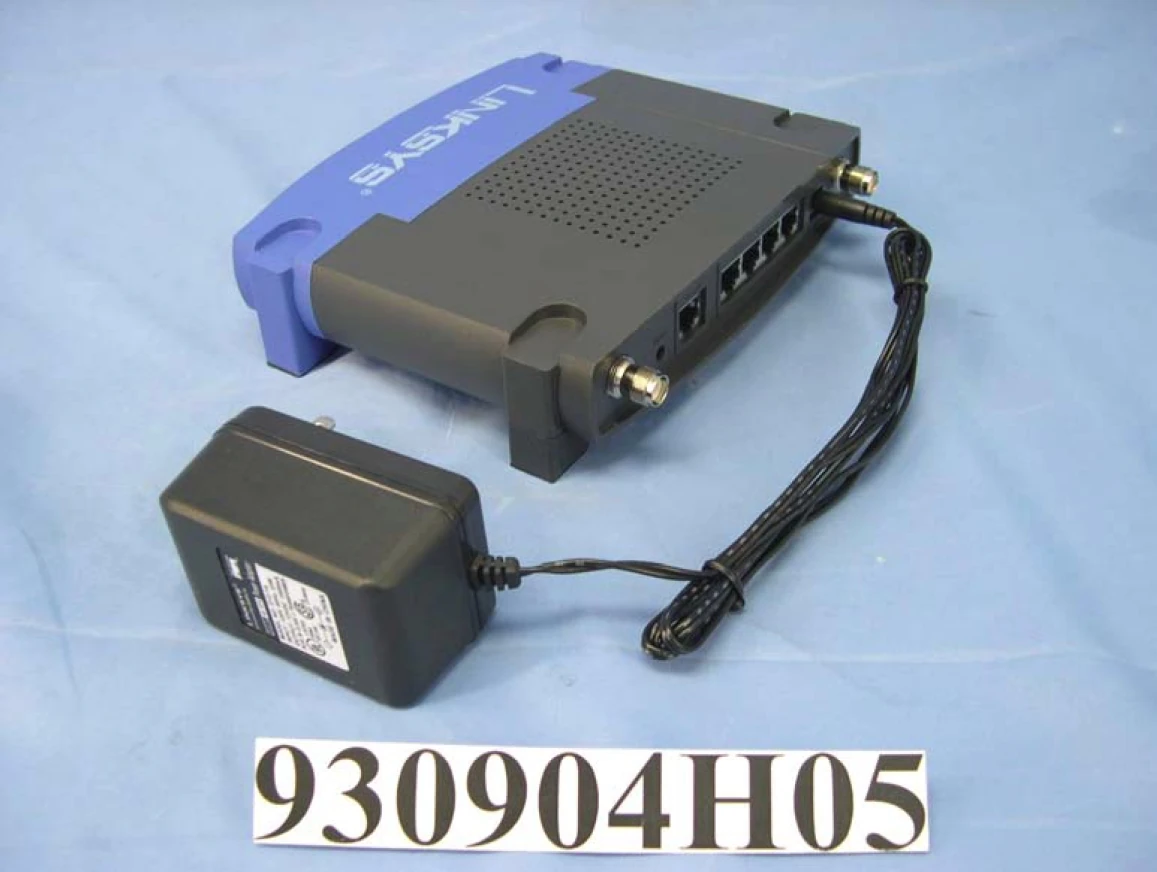

FCC Pictures

Linksys WRT54G v2 Linksys WRT54G v2 Linksys WRT54G v2

Linksys WRT54G v2 Linksys WRT54G v2 Linksys WRT54G v2

Linksys WRT54G v2 Linksys WRT54G v2Linksys WRT54G v2

Linksys WRT54G v2 Linksys WRT54G v2 Linksys WRT54G v2

Linksys WRT54G v2 Linksys WRT54G v2 Linksys WRT54G v2

Notes

Rare 32MB

anectine17 wrote: The v.2 and v.2.2, on occasion, came with a 32MB RAM chip with only 16MB enabled. The vast majority of these routers came with a basic 16MB RAM chip. To tell whether or not you have the "special" one with the 32MB chip, you have to open the router and read the number on the RAM chip itself. If you have chip #issi is42s16800a-7t, you can enter

nvram set sdram_init=0x008
nvram set sdram_ncdl=0x000
nvram commit
reboot

and that will enable all 32MB. If you have any other chip, that hack will not work...in fact if you try it, you'll end up with a brick. Good luck.

The Hynix chip, HY5DU281622ET-J is the most common one in the v.2 and v.2.2. I've taken apart probably 50 v.2's and a dozen 2.2's and I've seen 2 of the 32MB chips in the v.2.2, and 4 in the v.2. They're out there, but getting harder and harder to come by. Most people hang on to them once they get them.
