Your here: Home / Network / Hardware Specific / TP-Link / TL-WR1043ND v1.6
 |
This article is a stub. Please help InfoDepot Wiki by expanding it, adding pictures, and improving existing text.
|
| File:TP-Link_TL-WR1043NDa.jpg |
NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.
Specs[]
This section is in need of cleanup!
Platform
Serial Num. = ?
FCC ID = ?
CPU Type = Atheros AR9132-BC1E (AR9132)
MIPS Rev = ?
CPU Speed = 400MHz
Bus = ?
Flash Type = Serial
Flash Chip = 25P64V6P 99AJAV5 MYS722
Flash Size = 8MB
Max Firmware Size = ?
RAM Size = 32MB
RAM Chip = HY5DU561622FTP-D43
Switch = Realtek RTL8366RG A1G17A2 GA05B
Port-based vlan = ?
802.1q vlan = ?
Ethernet Port Count = 1-10/100/1000-WAN 4-10/100/1000-LAN
Wired Standard = IEEE 802.3?
boot_wait = ?
bootloader = ?
Flash Card Socket/Type = No
SD/MMC Mod Support = No
MiniPCI slots = No
PoE = No
Power = 12V/1.5A
Color of LEDs = ?
Size = ?
USB = 1 USB 2.0 Port
Serial Port = Yes
JTAG Port = Yes
Supported by TJTAG/Version = ?
Supported by dd-wrt as of = WR1043ND v.24 SP2 - build 13972 - 20100223
dd-wrt K2.4 Support = ?
dd-wrt K2.6 Support = ?
dd-wrt Notes = N clients connect only at G tx/rx rate,
everything else working
Special Features = ?
Radio (ath0)
Wireless Radio = Atheros AR9103 3x3 MIMO WLAN DSP processor = ? Antenna Connector Type = 3dBi Detachable RP-SMA Omni Directional Antenna X 3 Wireless Standard = IEEE 802.11b/g/n WiFi Operating Frequency = 2.4~2.4835GHz 802.11n = up to 300Mbps 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b = 1, 2, 5.5, 11Mbps Radio cor_rev = ? Radio Capabilities = ?
Links of Interest[]
http://www.dd-wrt.com/phpBB2/viewtopic.php?t=62217
https://forum.openwrt.org/viewtopic.php?pid=98147
Flashing[]
This section is in need of cleanup!
Upgrading[]
This section is in need of cleanup!
Reverting[]
This section is in need of cleanup!
JTAG/Serial Info[]
JTAG[]
JTAG Pinouts[]
This section is in need of cleanup!
JTAG Recovery[]
This section is in need JTAG Recovery Instructions!
Serial[]
Serial Pinouts[]
This section is in need of cleanup!
Hyper terminal Setup in Windows XP[]
In Windows XP, Click Start Button - All Programs - Accessories -
Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
Bits per second = 115200
Data Bits = 8
Parity = none
Stop bits = 1
Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
don't have to enter the settings again.
Putty Setup in Windows XP[]
After installing putty, run it Serial line = The COM port your using for serial (ie. COM3) Speed = 115200 Click on Serial under Connection Serial line to connect to = same as above (Serial line) Speed (baud) = 115200 Data bits = 8 Stop bits = 1 Parity = None Flow control = None Click Session Enter a name for your connection under saved sessions Click Save Click Open
Serial Recovery[]
This section is in need of Serial Recovery Instructions!
USB Info[]
This section is in need of cleanup!
vlan Info[]
This section is in need of cleanup!

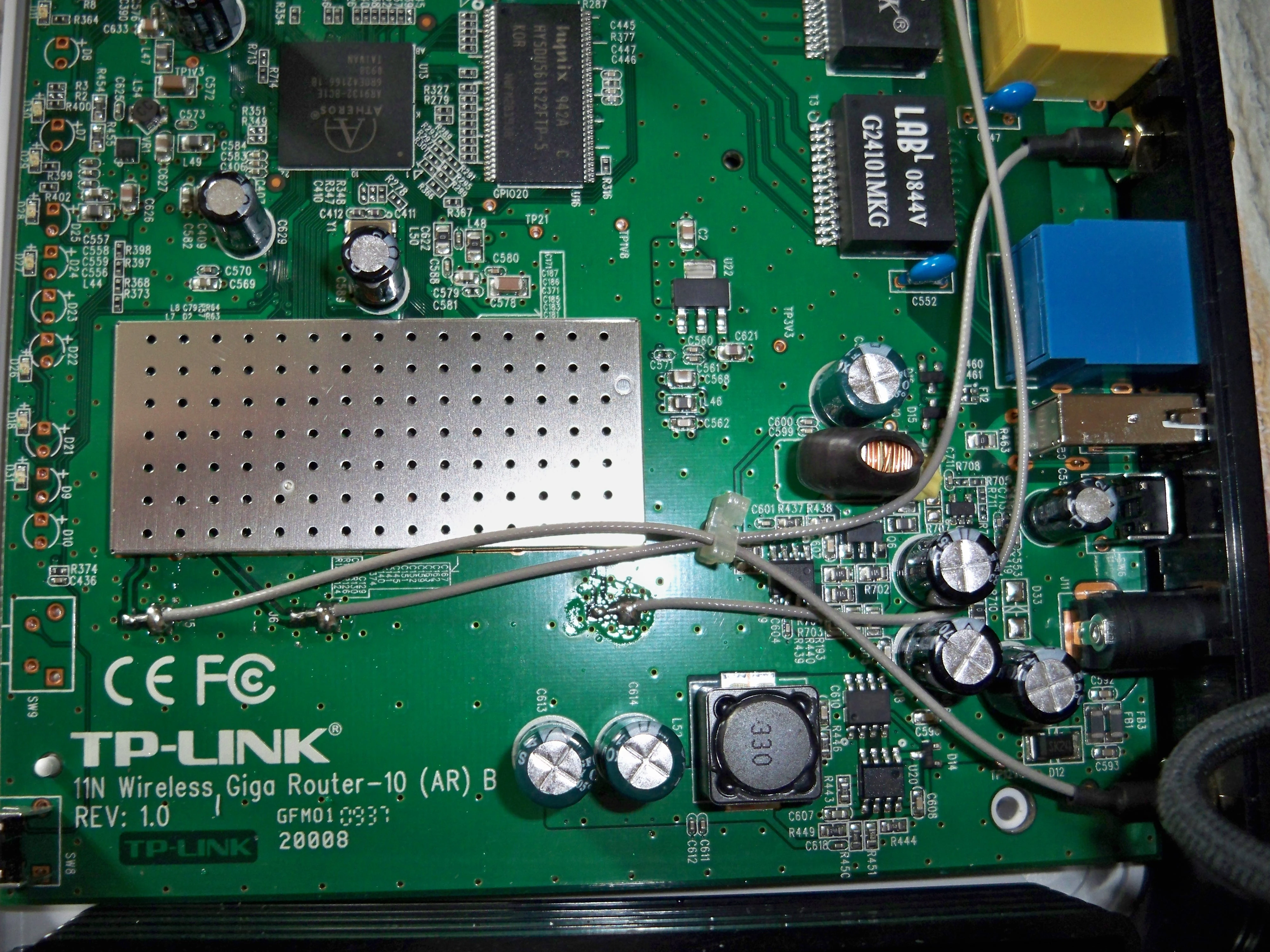

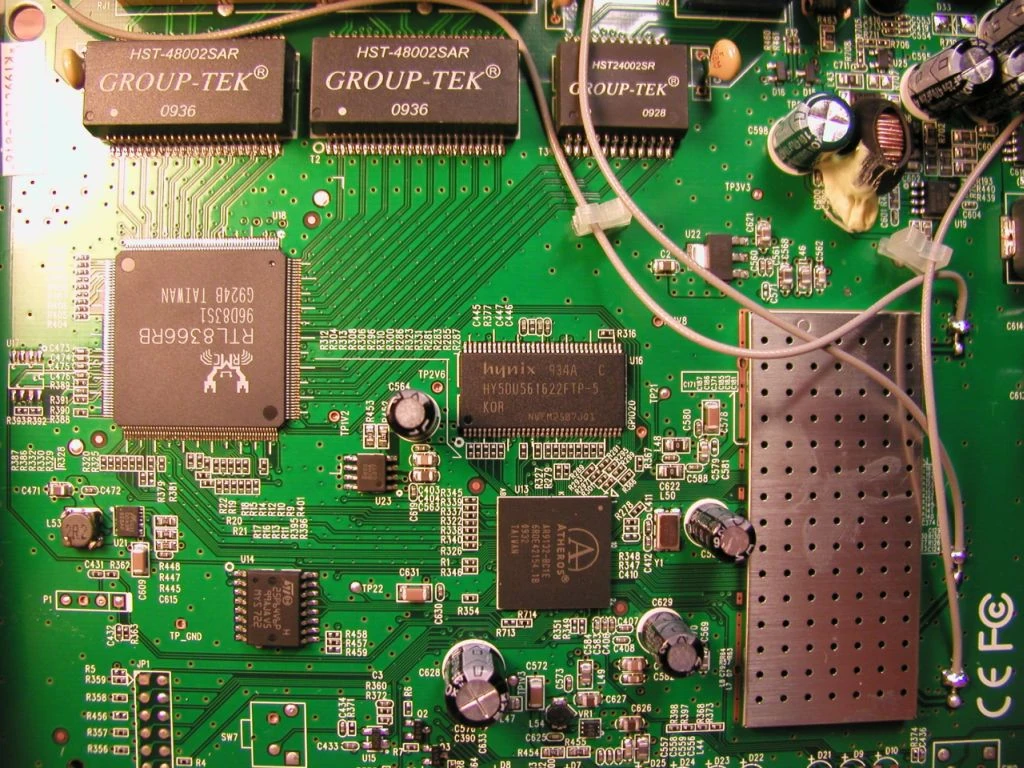

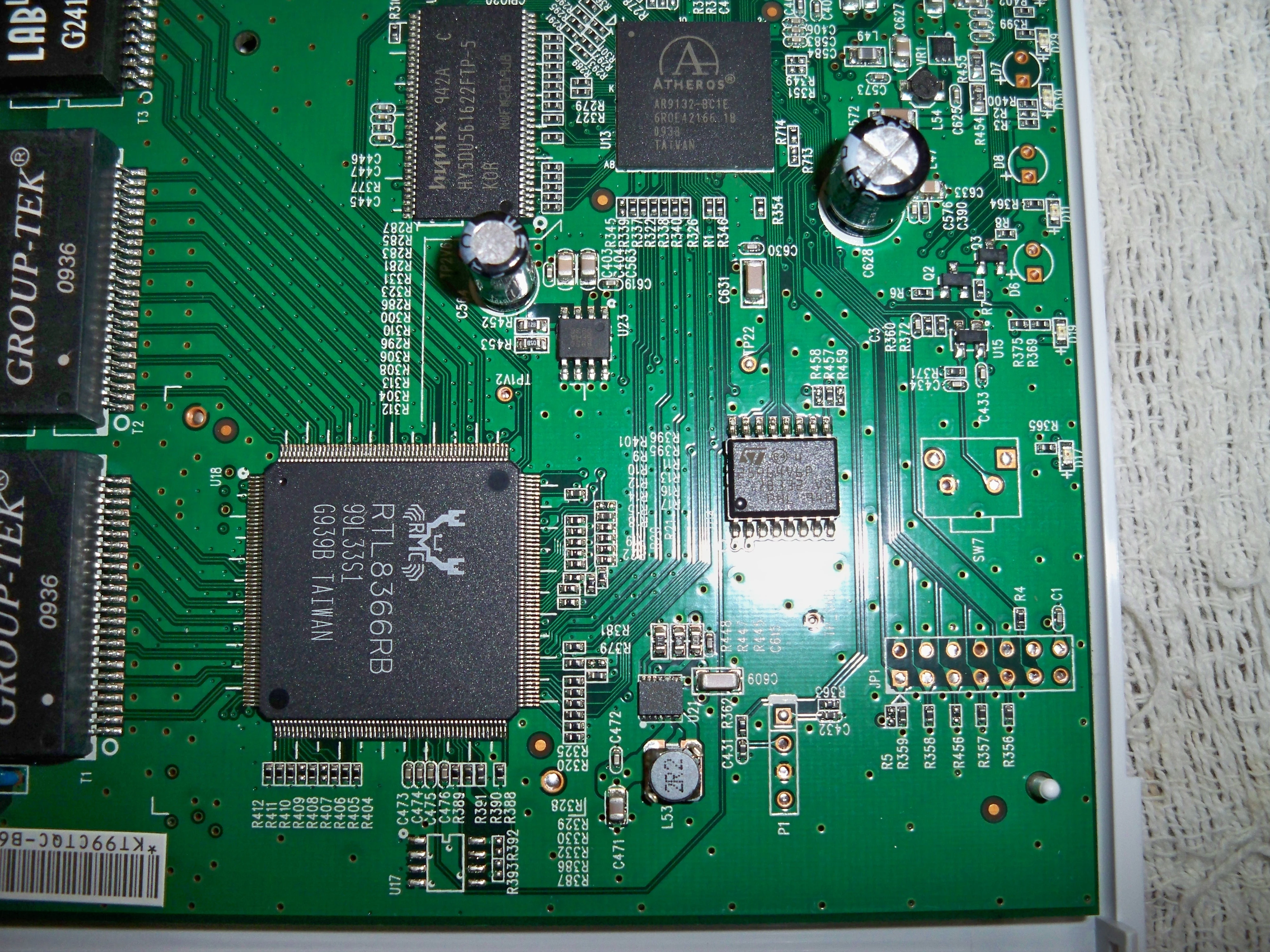

Pictures[]
FCC Pictures[]
This section is in need of cleanup!
