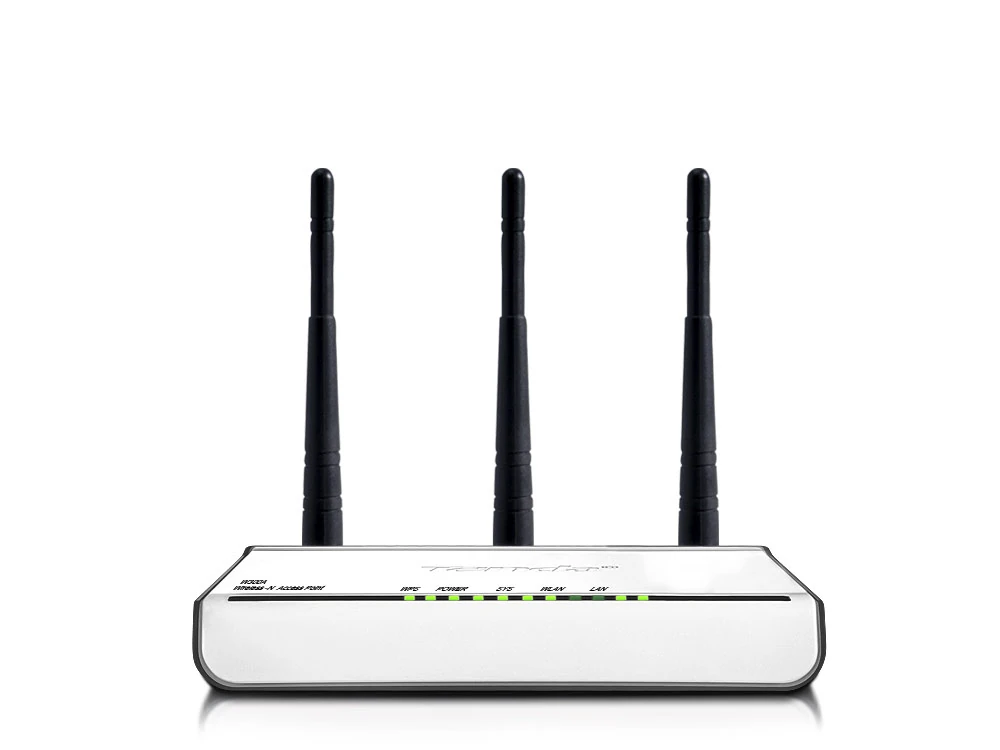

Tenda W300A
Tenda W300A

Homepage

W300A

Wikipedia

?

dd-wrt

?

OpenWRT

OpenWRT wiki

Tomato

?

TomatoUSB

?

Gargoyle

?


SpecsEdit

Fixme This section is in need of cleanup!

Platform

Serial Num. = ?
FCC ID = ?
CPU Type = Ralink RT2880F
MIPS Rev = ?
CPU Speed = 266MHz
Bus = ?
Flash Type = Parallel
Flash Chip = KH29LV320DBTC-70G
Flash Size = 4MB
Max Firmware Size = ?
RAM Size = 16MB
RAM Chip = 2x HY57V641620FTP-7
nvram Size = ?
Switch = Vitese VSC8601XKN
Port-based vlan = ?
802.1q vlan = ?
Ethernet Port Count = 1
Wired Standard = IEEE 802.3ab (10/100/1000Mb Ethernet)
boot_wait = 4s
bootloader = U-Boot
Flash Card Socket/Type = none
SD/MMC Mod Support = no
MiniPCI slots = 0
PoE = 802.3af (TI TPS23750)
Power = ?
Color of LEDs = 3x green, 1x red/green
Size = ?
USB = ?
Serial Port = ?
JTAG Port = ?
Supported by TJTAG/Version = ?
Special Features = ?

Radio

Wireless Radio = Ralink RT2820L, 2T3R
WLAN DSP processor = ?
Antenna Connector Type = 3x R-SMA
Wireless Standard = IEEE 802.11b/g/n
WiFi Operating Frequency = ?
 802.11n = up to 300Mbps
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = ?
Radio Capabilities = ?

JTAG/Serial InfoEdit

JTAGEdit

JTAG PinoutsEdit
Fixme This section is in need of cleanup!
JTAG RecoveryEdit
Fixme This section is in need JTAG Recovery Instructions!

Serial consoleEdit

PinoutEdit

On the other side of the PCB there are 4 test points:


  • TP1 GND
  • TP2 ? (probably Vcc)
  • TP3,4 serial console

The serial interface is 3.3V TTL levels (need USB cable and/or level converter to connect to a PC). Settings are 57k6 8N1 no flow control.

Bootup info
U-Boot 1.1.3 (Feb 22 2008 - 16:48:17)

Board: RT2880 DRAM:  16 MB

 twe0 set to <NULL>

 toe0 set to <NULL>
flash_protect ON: from 0xBF000000 to 0xBF02479B
protect on 0
protect on 1
protect on 2
flash_protect ON: from 0xBF030000 to 0xBF03FFFF
protect on 3
============================================
ASIC -VerB/C (MAC to 100PHY Mode)
DRAM COMPONENT=64Mbits
DRAM BUS=32BIT
Total memory = 16Mbytes
Date:Feb 22 2008  Time:16:48:17
============================================

 D-CACHE set to 4 way
 I-CACHE set to 4 way

 ##### The CPU freq = 266 MHZ ####

 SDRAM bus set to 32 bit
 SDRAM size =16 Mbytes

Please choose the operation:
   1: Load system code to SDRAM via TFTP.
   2: Load system code then write to Flash via TFTP.
   3: Boot system code via Flash (default).
   4: Entr boot command line interface.
   5: Load ucos code to SDRAM via TFTP.


3: System Boot system code via Flash.
## Booting image at bf050000 ...
   Image Name:   Linux Kernel Image
   Created:      2008-10-29  18:46:32 UTC
System Control Status = 0x02910084
   Image Type:   MIPS Linux Kernel Image (lzma compressed)
   Data Size:    2447621 Bytes =  2.3 MB
   Load Address: 88000000
   Entry Point:  88190040
   Verifying Checksum ... OK
   Uncompressing Kernel Image ... OK
No initrd
## Transferring control to Linux (at address 88190040) ...
## Giving linux memsize in MB, 16


Starting kernel ...



THIS IS ASIC
ramsize = 16 MBytes
rambase not set, set to default (0x08000000)
MEMORY DESCRIPTOR dump:
[0,883d0b80]: base<08000000> size<01000000> type<Free RAM memory>

 The CPU feqenuce set to 266 MHz
CPU revision is: 0001906c
icache: sets:256, ways:4, linesz:16 ,total:16384, waybit:12, flags:0x0
dcache: sets:256, ways:4, linesz:16 ,total:16384, waybit:12, flags:0x0
i waysize = 4096, d waysize = 4096, i sets= 256, d sets=256
Primary instruction cache 16kB, physically tagged, 4-way, linesize 16 bytes.
Primary data cache 16kB, 4-way, linesize 16 bytes.
[setup_scache]:1032
Linux version 2.4.30 (root@linux-r3ht) (gcc version 3.3.6) #1 Thu Oct 30 02:42:35 CST 2008
Determined physical RAM map:
 memory: 01000000 @ 08000000 (usable)
Initial ramdisk at: 0x881c2000 (1855488 bytes)
On node 0 totalpages: 36864
zone(0): 36864 pages.
zone(1): 0 pages.
zone(2): 0 pages.
Kernel command line: console=ttyS1,57600n8 root=/dev/ram0
cause = e080804c, status = 1000ff00
calculating r4koff... 0028b0aa(2666666)
CPU frequency 266.67 MHz
Using 133.333 MHz high precision timer.
Calibrating delay loop... 266.24 BogoMIPS
Memory: 10872k/16384k available (1585k kernel code, 5512k reserved, 1912k data, 92k init, 0k highmem)
Dentry cache hash table entries: 32768 (order: 6, 262144 bytes)
Inode cache hash table entries: 16384 (order: 5, 131072 bytes)
Mount cache hash table entries: 512 (order: 0, 4096 bytes)
Buffer cache hash table entries: 8192 (order: 3, 32768 bytes)
Page-cache hash table entries: 65536 (order: 6, 262144 bytes)
Checking for 'wait' instruction...  unavailable.
POSIX conformance testing by UNIFIX
pci.c pcibios_init():840
BAR0 at slot 0 = 8
pci.c pcibios_fixup_resources():640
bus = 0, dev = 0, fun = 0
dev= 0x88564c00
Linux NET4.0 for Linux 2.4
Based upon Swansea University Computer Society NET3.039
Initializing RT netlink socket
Starting kswapd
devfs: v1.12c (20020818) Richard Gooch (rgooch@atnf.csiro.au)
devfs: boot_options: 0x1
squashfs: version 3.1 (2006/08/19) Phillip Lougher
pty: 256 Unix98 ptys configured
Ralink RT2880 gpio driver start init
SetGPIOType: id [12] type[0]
SetGPIOType: id [11] type[0]
SetGPIOType: id [13] type[1]
SetGPIOType: id [0] type[1]
Ralink RT2880 gpio driver initialized
spidrv_major = 217
Serial driver version 5.05c (2001-07-08) with MANY_PORTS SHARE_IRQ SERIAL_PCI enabled
ttyS00 at 0x300500 (irq = 9) is a 16550A
ttyS01 at 0x300c00 (irq = 8) is a 16550A
HDLC line discipline: version $Revision: 1.1.1.1 $, maxframe=4096
N_HDLC line discipline registered.
RAMDISK driver initialized: 16 RAM disks of 8192K size 1024 blocksize
GDMA1_MAC_ADRH -- : 0x00000000
GDMA1_MAC_ADRL -- : 0x00000000
Ralink APSoC Ethernet Driver Initilization. v1.60  256 rx/tx descriptors allocated, mtu = 1600!
GDMA1_MAC_ADRH -- : 0x0000b848
GDMA1_MAC_ADRL -- : 0x000c4328
PROC INIT OK!
rdm_major = 254
FLASH_API: MAN_ID=C2 DEV_ID=22A8 SIZE=4MB
physmap flash device: 400000 at bfc00000
 Amd/Fujitsu Extended Query Table v1.1 at 0x0040
number of CFI chips: 1
Region0: SectorSize=0x2000 SectorNum=8
Region1: SectorSize=0x10000 SectorNum=63
cfi_cmdset_0002: Using word write method.
cfi_cmdset_0002: Disabling fast programming due to code brokenness.
Using physmap partition definition
Creating 4 MTD partitions on "RT2880 SOC Physically mapped flash":
0x00000000-0x00030000 : "Bootloader"
mtd: Giving out device 0 to Bootloader
0x00030000-0x00040000 : "Config "
mtd: Giving out device 1 to Config
0x00040000-0x00050000 : "Factory"
mtd: Giving out device 2 to Factory
0x00050000-0x00400000 : "Kernel"
mtd: Giving out device 3 to Kernel
NET4: Linux TCP/IP 1.0 for NET4.0
IP Protocols: ICMP, UDP, TCP, IGMP
IP: routing cache hash table of 1024 buckets, 8Kbytes
TCP: Hash tables configured (established 16384 bind 32768)
GRE over IPv4 tunneling driver
Linux IP multicast router 0.06 plus PIM-SM
NET4: Unix domain sockets 1.0/SMP for Linux NET4.0.
NET4: Ethernet Bridge 008 for NET4.0
802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>
All bugs added by David S. Miller <davem@redhat.com>
RAMDISK: Compressed image found at block 0
Freeing initrd memory: 1812k freed
VFS: Mounted root (squashfs filesystem) readonly.
Mounted devfs on /dev
Freeing prom memory: 0kb freed
Freeing unused kernel memory: 92k freed
console started
trying to start /sbin/init
Algorithmics/MIPS FPU Emulator v1.5

init started: BusyBox v1.8.2 (2008-10-30 02:36:26 CST)

starting pid 10, tty : '/etc_ro/rcS'
mount: mounting devpts: called with bogus options
none on /sys failed: No such device
mount: mounting none on /proc/bus/usb failed: No such file or directory

starting pid 16, tty '/dev/console': '/bin/sh'


BusyBox v1.8.2 (2008-10-30 02:36:26 CST) built-in shell (ash)
Enter 'help' for a list of built-in commands.

#

Yes:

      ****** WeLoveLinux ******

 Welcome to ...
kernel reg pid 14 success .

httpd Reg gpio hook success .
insmod rt2860v2_ap
2860 version : 1.9.0.0 (Oct 30 2008)



=== pAd = c0507000, size = 484224 ===


<-- RTMPAllocAdapterBlock, Status=0
ralink_init make_wireless_config rt2860
ifconfig ra0 0.0.0.0
RX DESC a8c4d000  size = 2048
<-- RTMPAllocTxRxRingMemory, Status=0
1. Phy Mode = 9
2. Phy Mode = 9
3. Phy Mode = 9
...

Once the startup is complete the console works as usual - e.g.:


# ifconfig lo
lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          UP LOOPBACK RUNNING  MTU:16436  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)


u-BootEdit

For TFTP from u-Boot the AP has to bo connected to a 10/100M switch (does not work neither on a 10/100/1000M switch nor on a 10M hub).

For FW recovery use option 2 ("Load system code then write to Flash via TFTP.") to download the original FW image (currently U300ARAEN_2.4.15.bin from U300A_EN_2.4.15.zip).

System infoEdit

VersionEdit

# cat /proc/version
Linux version 2.4.30 (root@linux-r3ht) (gcc version 3.3.6) #1 Thu Oct 30 02:42:35 CST 2008

CPU infoEdit

# cat /proc/cpuinfo
system type             : Palmchip Surfboard
processor               : 0
cpu model               : unknown V6.12
BogoMIPS                : 266.24
wait instruction        : no
microsecond timers      : yes
tlb_entries             : 16
extra interrupt vector  : yes
hardware watchpoint     : no
VCED exceptions         : not available
VCEI exceptions         : not available

MeminfoEdit

# cat /proc/meminfo
        total:    used:    free:  shared: buffers:  cached:
Mem:  13082624 10506240  2576384        0   897024  3710976
Swap:        0        0        0
MemTotal:        12776 kB
MemFree:          2516 kB
MemShared:           0 kB
Buffers:           876 kB
Cached:           3624 kB
SwapCached:          0 kB
Active:           2464 kB
Inactive:         2044 kB
HighTotal:           0 kB
HighFree:            0 kB
LowTotal:        12776 kB
LowFree:          2516 kB
SwapTotal:           0 kB
SwapFree:            0 kB

MTDEdit

# cat /proc/mtd
dev:    size   erasesize  name
mtd0: 00030000 00010000 "Bootloader"
mtd1: 00010000 00010000 "Config "
mtd2: 00010000 00010000 "Factory"
mtd3: 003b0000 00010000 "Kernel"

InterruptsEdit

# cat /proc/interrupts
           CPU0
  3:       1269       Surfboard  eth2
  4:      12078       Surfboard  ra0
  6:      53928       Surfboard  timer
  8:        313       Surfboard  serial

ERR:          0

PSEdit

  1. ps
  PID  Uid        VSZ Stat Command
    1 0          1608 S   init
    2 0               SW  [keventd]
    3 0               SWN [ksoftirqd_CPU0]
    4 0               SW  [kswapd]
    5 0               SW  [bdflush]
    6 0               SW  [kupdated]
    7 0               SW  [mtdblockd]
   14 0          1992 S   httpd
   16 0          1616 S   /bin/sh
   19 0               SW  [rtmpWscHandle]
  116 0          1608 S   udhcpc -i br0 -h W300A -s /etc_ro/udhcpc.script -p /v
  125 0          1992 S   httpd
  126 0          1992 S   httpd
  127 0           748 S   wins W300A 192.168.2.90
  134 0          1608 R   ps

PCIEdit

# cat /proc/pci
PCI devices found:
  Bus  0, device   0, function  0:
    Class 0080: PCI device 1814:0802 (rev 1).
      Master Capable.  Latency=255.
      Prefetchable 32 bit memory at 0x0 [0xfffffff].
# cat /proc/bus/pci/devices
0000    18140802        0       00000008        00000000        00000000         00000000        00000000        00000000        00000000        1000000000000000        00000000        00000000        00000000        00000000        00000000
